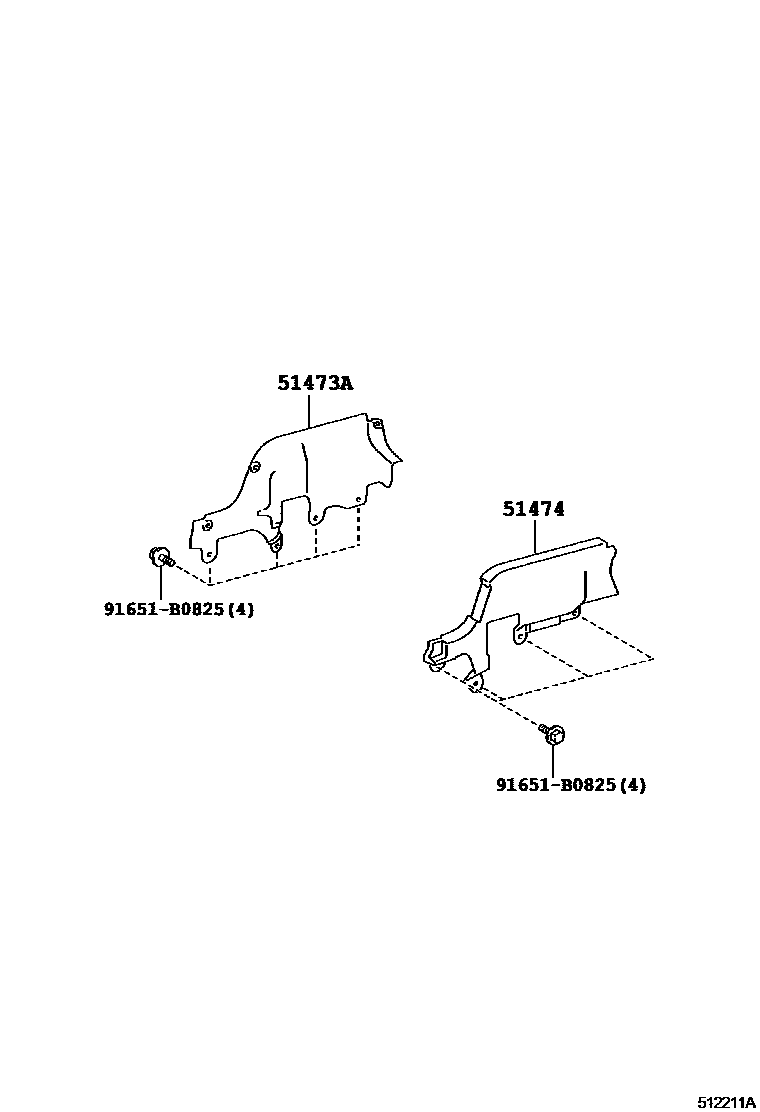

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37290iXZU710..CBU201107-202005

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37250iXZU710..CBU201107-201511

sub51474-37251

main51474-37251iWU710,720;XZU710,720..MTM..GCC201512-202005

91651B0825

main91651-B0825

3 parts on this diagram · 2 diagrams in section
