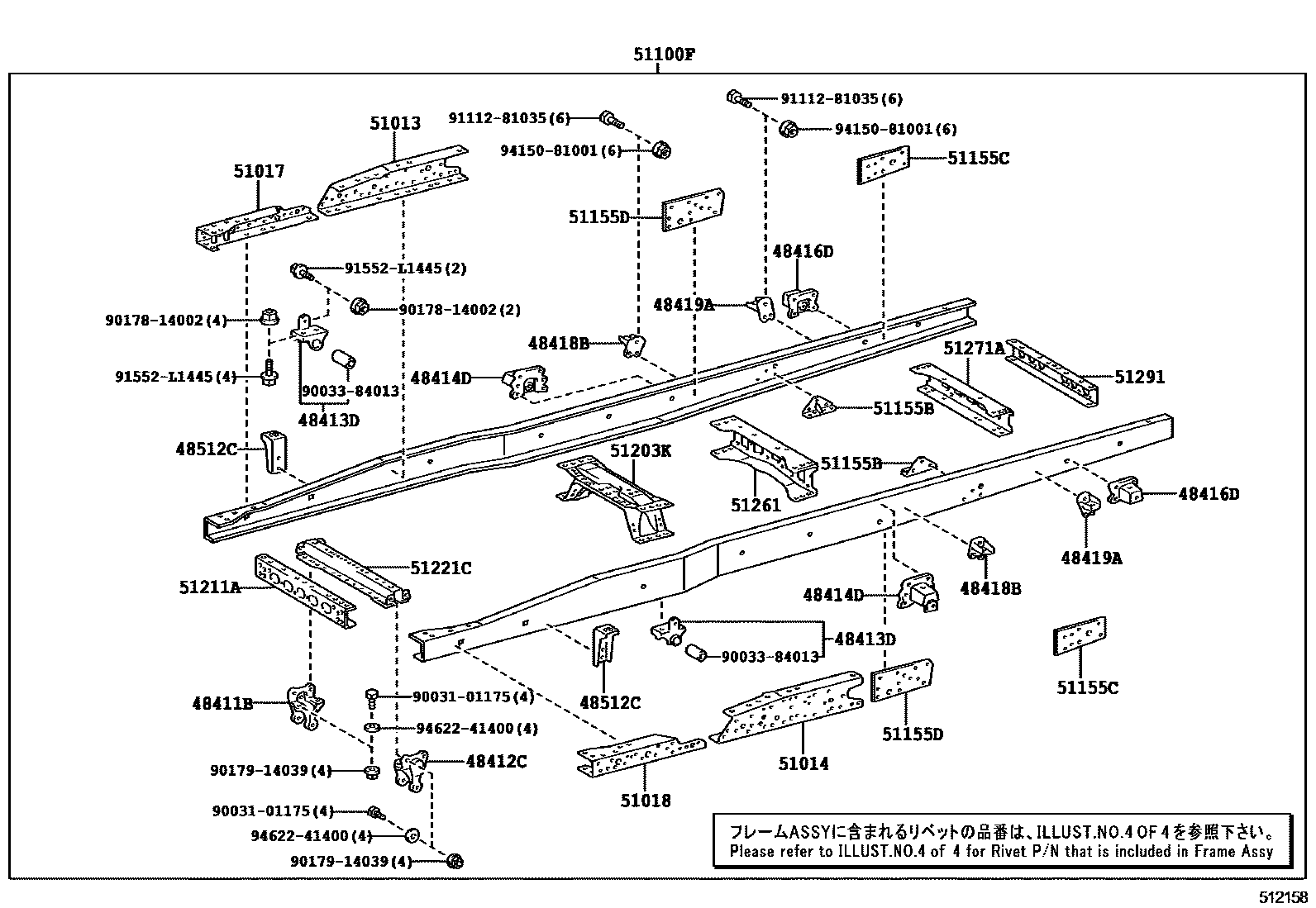

FRAME

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1REAR OVER HANG 0013 1REAR OVER HANG 0015 1REAR OVER HANG 0016 1REAR OVER HANG 0017 1 0018 1 0019 1REAR OVER HANG(ASSEMBLY LINE 0020 1REAR OVER HANG(PACKED PARTS) 0021 1 0022 1 0023 1 0024 1FRONT HOOK 0025 1FRONT HOOK, W(FRONT BUMPER SP0026 1REAR HOOK 0027 1RIVET

48411BBRACKET, SPRING, NO.1 RH

main48411-37090iWU720..GEN;WU700,710..5F;XZU710..5F..GCC201107-202005

main48411-37110iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

main48411-37110iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main48411-37110iXZU710,720,730..EUR201107-201512

48412CBRACKET, SPRING, NO.1 LH

main48412-37080iWU720..GEN;WU700,710..5F;XZU710..5F..GCC201107-202005

main48412-37100iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main48412-37100iXZU710,720,730..EUR201107-201512

main48412-37100iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

48413DBRACKET, SPRING, NO.2

main48403-37080iXZU710..CBU201107-202005

48414DBRACKET, SPRING, NO.3

main48414-37140iXZU710..CBU201107-202005

main48414-37200iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

main48414-37200iXZU710,720,730..EUR201107-201512

main48414-37200iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

48416DBRACKET, SPRING, NO.4

main48416-37120iWU720..GEN;WU700,710..5F;XZU710..5F..GCC201107-202005

48418BBRACKET, SPRING, NO.6

main48418-37030iXZU710,720..GEN201107-202005

main48418-37050iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main48418-37050iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

main48418-37050iXZU710,720,730..EUR201107-201512

48419ABRACKET, SPRING, NO.7

main48419-37030iXZU710..CBU201107-202005

main48419-37040iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION,RH

main48419-37040iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

RH

main48419-37040iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),RH

main48419-37050iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH),LH

main48419-37050iXZU710,720,730..EUR201107-202005

LH

main48419-37050iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION,LH

48512CBRACKET, FRONT SHOCK ABSORBER, UPPER

main48512-37080iXZU710..CBU201107-202005

51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH

main51013-37470iXZU710..CBU201107-202005

51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH

main51014-37450iXZU710..CBU201107-202005

51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH

main51017-37240iXZU710..CBU201107-202005

51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH

main51018-37190iXZU710..CBU201107-202005

51100FFRAME SUB-ASSY

main51001-3VZ00iWU700201107-201505

main51001-3VZ90iWU710,XZU710..85T201107-201705

main51001-3VZ91iWU710,XZU710..85T201705-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

main51001-3VZ91iWU710,XZU710..85T201705-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main51002-37A10iWU710,XZU710..SCB..5F201107-201706

main51002-37A11iWU710..5F;XZU710..SCB..5F..GCC201706-202005

main51002-37A50iXZU710..CBU201107-201505

main51002-37B90iXZU710..DCB201108-201705

main51002-37B91iXZU710..DCB201705-202005

main51002-37C20iXZU720..EUR201107-201705

main51002-37C21iWU720,XZU720..GCC201705-202005

main51002-37C30iWU720..GEN201107-201706

main51002-37C31iWU720..GEN201706-202005

main51002-37E40iXZU730201306-201512

main51002-3VR50iXZU710..GEN201911

main51002-3VR90iXZU720..GEN201911

51155BSTIFFENER, FRAME SIDE RAIL, REAR NO.2

main51155-37090iXZU710..CBU201107-202005

main51155-37300iXZU710,720..GEN201911

51155CSTIFFENER, FRAME SIDE RAIL, REAR NO.3

main51155-37050iWU720..GEN;WU700,710..5F;XZU710..5F..GCC201107-202005

main51155-37210iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main51155-37210iXZU710,720,730..EUR201107-201512

main51155-37210iWU720..GCC;WU710,XZU710,720..6F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

51155DSTIFFENER, FRAME SIDE RAIL, REAR NO.1

main51155-37040iXZU710..CBU201107-202005

main51155-37200iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)

main51155-37200iXZU710..5F..GCC201107-202005

REAR SUSPENSION-MULTI LEAF REIN TENSION

main51155-37200iXZU710,720,730..EUR201107-201512

51203KCROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-37202iXZU710..CBU201107-201505

main51203-37351iWU700,710,720;XZU710,720..MTM..GCC201107-202005

51211ACROSSMEMBER, FRAME, FRONT

main51211-37130iXZU710..CBU201107-202005

main51211-37310iXZU710,720..GEN201911

51221CCROSSMEMBER, FRAME, NO.2

main51221-37200iXZU710..CBU201107-202005

51261CROSSMEMBER, FRAME, NO.6

main51261-37060iXZU710..DCB;WU710..85T..IV3;WU720,XZU710,720..6F..GCC201107-201706

main51261-37170iXZU710..DCB;WU710,720,XZU710,720..6F..GCC201705-202005

51271ACROSSMEMBER, FRAME, NO.7

main51271-37010iWU700,710,720;XZU710,720..MTM..GCC201107-202005

51291CROSSMEMBER, FRAME, REAR

main51291-37050iWU700201107-201505

main51291-37100iXZU710..CBU201107-202212

sub51291-37101

main51291-37101iXZU710,720..GEN202301

9003101175

main90031-01175

9003384013

main90033-84013

9017814002

main90178-14002

9017914039

main90179-14039

9111281035

main91112-81035

91552L1445

main91552-L1445

9415081001

main94150-81001

9462241400

main94622-41400

30 parts on this diagram · 23 diagrams in section
