EPC Data

REAR SPRING & SHOCK ABSORBER

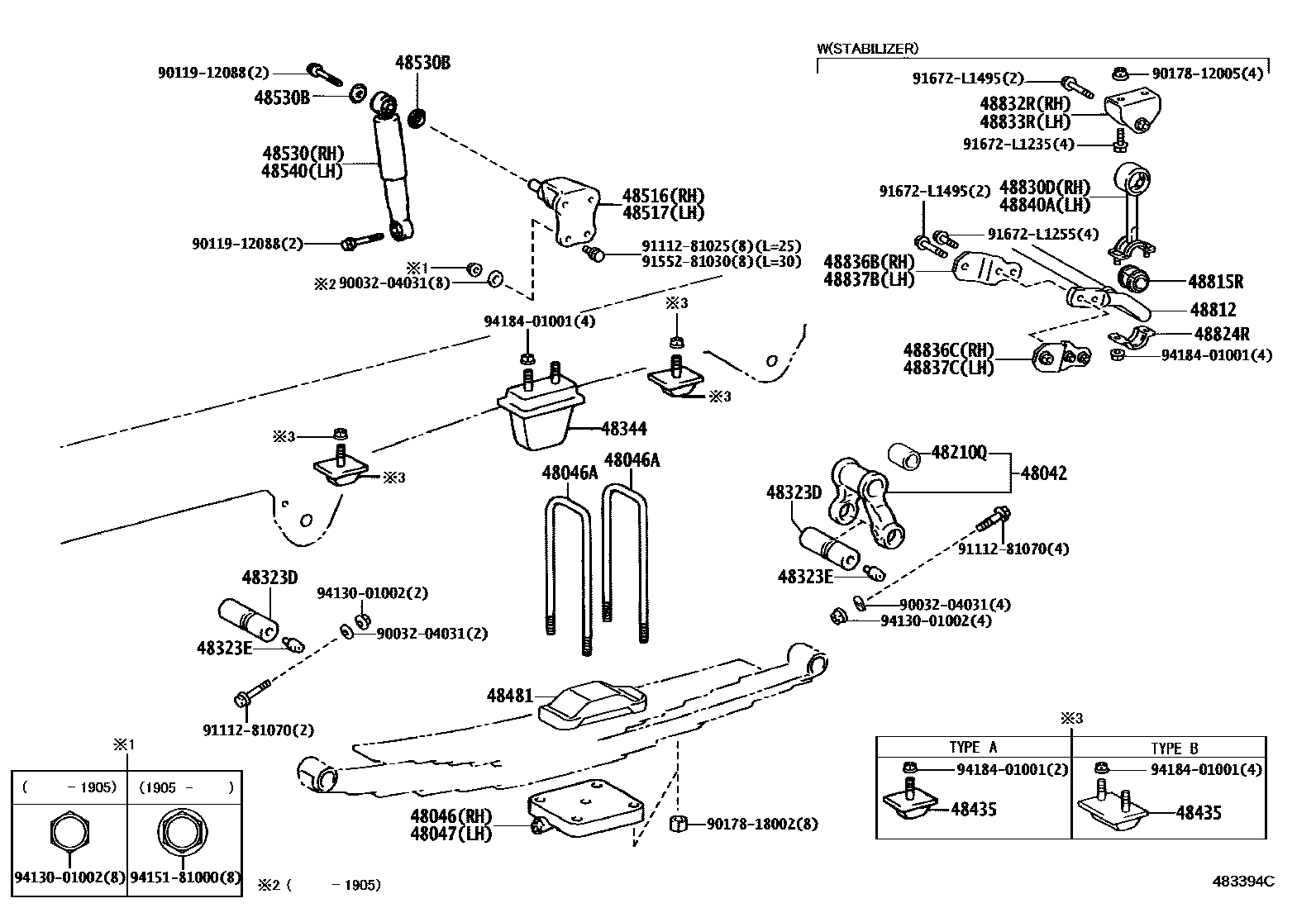

Parts diagram
48042SHACKLE SUB-ASSY, REAR SPRING, NO.2
main48042-37051i201107-201305
sub48042-37052
main48042-37052i201306-202005
main48042-37060i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)
main48042-37060i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION
main48042-37060i201107-201512
48046SEAT SUB-ASSY, SPRING U BOLT, RH
main48473-37111i201107-202005
48046ABOLT, U(FOR REAR SPRING)
main90117-18010i201306-201512
L=370
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-750R16-10 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-750R16-12 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-750R16-12 LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&STABILIZER-WITH(FRONT & REAR)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90117-18019i201107-202005
L=380,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE& DISK WHEEL-215/75R17.5 126 RIB
main90117-18020i201107-202005
L=390
main90117-18020i201107-201505
L=390,REAR SUSPENSION-MULTI LEAF REIN TENSION
main90117-18021i201107-202005
L=400
main90117-18021i201107-202005
L=400,REAR SUSPENSION-MULTI LEAF REIN TENSION(METAL BUSH)
48047SEAT SUB-ASSY, SPRING U BOLT, LH
main48473-37111i201107-202005
48210SPRING ASSY, REAR RH
main48210-37B60i201107-202005
MAIN 4+HELPER 4-LEAF
main48210-37K60i201306-201512
MAIN 3+HELPER 3-LEAF
sub48210-37K61
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF
main48210-37M10i201107-201505
MAIN 4+HELPER 4-LEAF,REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 RIB
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main48210-37M30i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISK WHEEL-750R16-12 RIB
main48210-37M40i201107-202005
MAIN 6+HELPER 6-LEAF
main48210-3V620i201107-202005
MAIN 6+HELPER 5-LEAF,REAR SUSPENSION-MULTI LEAF REIN TENSION(METAL BUSH)
main48210-3V620i201107-202005
MAIN 6+HELPER 5-LEAF
main48210-3V680i201911
MAIN 6+HELPER 5-LEAF
48210QBUSH(FOR REAR SPRING SHACKLE)
main90033-84013i201107-202005
48323DPIN, REAR SPRING BRACKET
main48323-37040i201107-202005
48323ENIPPLE, GREASE(FOR REAR SPRING BRACKET PIN)
main96451-01000i201107-202005
48344STOPPER, BUMPER, REAR
main48344-37140i201107-202005
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main48344-37220i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48344-37280i201107-202005
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG
main48344-37400i201107-201505
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main48344-37400i201911
48435ATTACHMENT, HELPER SPRING BRACKET, NO.1
main48306-E0280i201107-202005
TYPE A:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-12 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-215/75R17.5 126 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF REIN TENSION&REAR WHEEL BRAKE-320(115) DRUM&TIRE & DISKWHEEL-750R16-10 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG,TYPE B:REFER ILLUST.
main48435-37030i201107-202005
REAR SUSPENSION-MULTI LEAF(RUBBER BUSH)&REAR WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG,TYPE B:REFER ILLUST.
48481SEAT, REAR SPRING, UPPER
main48481-37120i201107-202005
main48481-37130i201107-202005
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
main48505-37052i201107-202005
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
main48505-37052i201107-202005
48530ABSORBER ASSY, SHOCK, REAR RH
main48531-37200i201107-201506
MARK 48531-37200
sub48531-37201
main48531-37201i201507-201908
MARK 48531-37201
sub48531-37202
main48531-37202i201909-202005
MARK 48531-37202
main48531-37340i201306-201506
MARK 48531-37340
sub48531-37341
main48531-37341i201507-201512
MARK 48531-37341
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
main90948-03011i201107-202005
48540ABSORBER ASSY, SHOCK, REAR LH
main48531-37200i201107-201506
MARK 48531-37200
sub48531-37201
main48531-37201i201507-201908
MARK 48531-37201
sub48531-37202
main48531-37202i201909-202005
MARK 48531-37202
main48531-37340i201306-201506
MARK 48531-37340
sub48531-37341
main48531-37341i201507-201512
MARK 48531-37341
48812BAR, STABILIZER, REAR
main48812-37060
main48812-37061
main48812-37080
48815RBUSH, STABILIZER(FOR REAR)
48824RBRACKET, STABILIZER(FOR REAR)
48830DLINK ASSY, REAR STABILIZER, RH
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48836BBRACKET, REAR STABILIZER END, INNER RH
48836CBRACKET, REAR STABILIZER END, OUTER RH
48837BBRACKET, REAR STABILIZER END, INNER LH
48837CBRACKET, REAR STABILIZER END, OUTER LH
48840ALINK ASSY, REAR STABILIZER, LH
9003204031
main90032-04031
9011912088
main90119-12088
9017812005
main90178-12005
9017818002
main90178-18002
9111281025
main91112-81025
9111281070
main91112-81070
9155281030
main91552-81030
91672L1235
main91672-L1235
91672L1255
main91672-L1255
91672L1495
main91672-L1495
9413001002
main94130-01002
9415181000
main94151-81000
9418401001
main94184-01001

40 parts on this diagram · 21 diagrams in section

REAR SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
