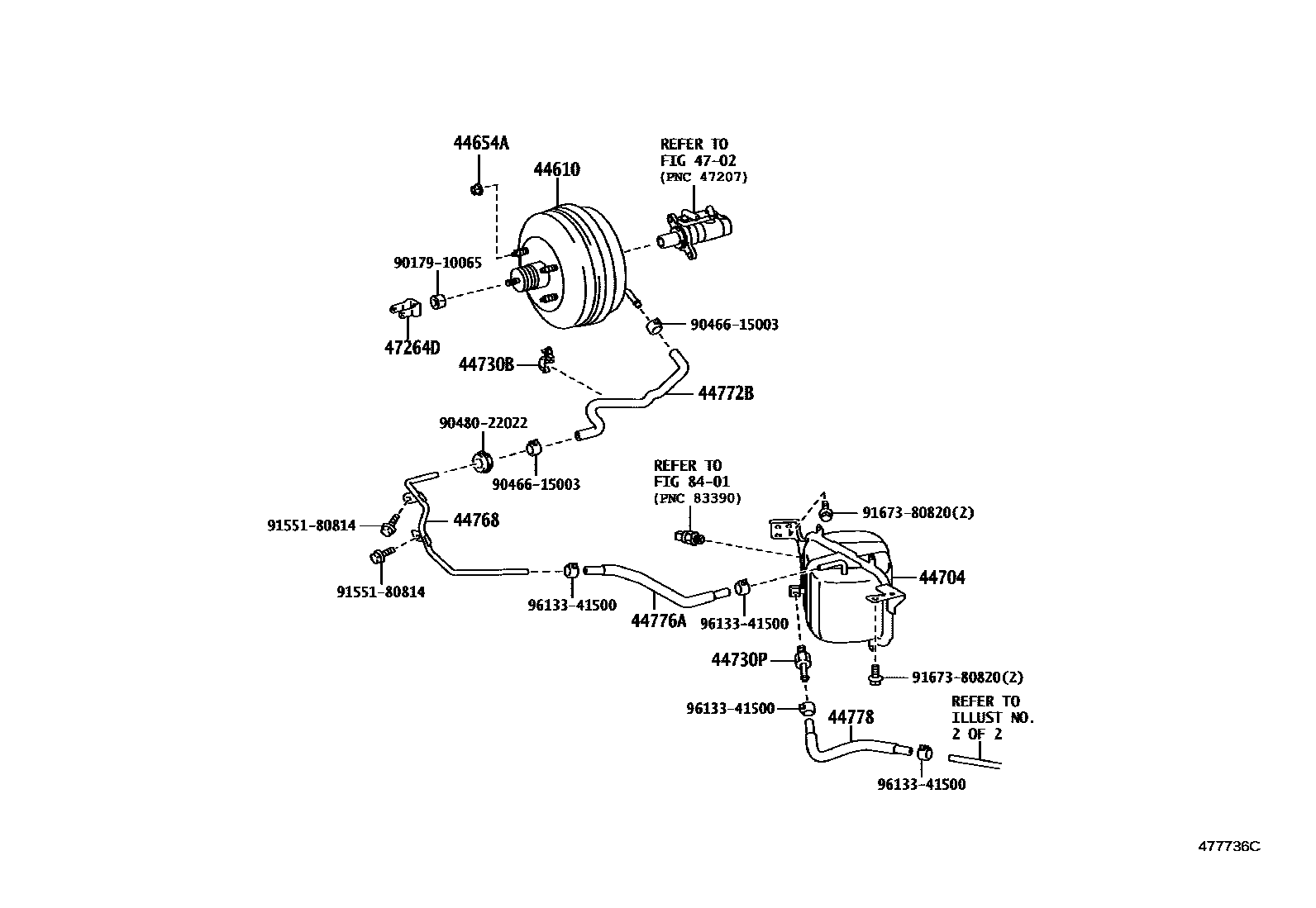

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

44610BOOSTER ASSY, BRAKE

main44610-37280iXZU710,720..GCC201107-202005

main44610-37290iXZU710..5F..GCC201505-202005

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-215/75R17.5 126 RIB

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 RIB

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 RIB

main44610-37300iXZU710..5F..GCC201505-202005

FRONT WHEEL BRAKE-115.7 DISC&TIRE & DISK WHEEL-750R16-12 LUG

main44610-37300iXZU710,720..GEN201306-202005

44654ANUT, BOOSTER

main90179-08038iXZU710,720,730..EUR201107-202108

main90179-08057iXZU710,720..GEN202109

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37210iWU710..RHD201107-201905

main44704-37230iWU700,710,720,XZU710,720,730..LHD201107-201405

main44704-37231iXZU710,720..GEN201406-202005

main44704-37330iWU710..RHD201905-202005

44730BCLAMP, VACUUM HOSE

main44597-37021iXZU710,720,730..EUR201107-202005

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iXZU710..CBU201107-202005

44768TUBE, BOOSTER VACUUM

main44768-37220iWU710..RHD201107-202005

main44768-37260iWU700,710,720,XZU710,720..LHD..MTM..(GCC,GEN)201107-201910

main44768-37270iWU710,720..LHD;XZU710,720..MTM..GCC201911-202005

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-37170iWU700,710,720201107-202005

44776HOSE, BRAKE BOOSTER

main44776-37330iXZU710,720,730..EUR201306-202005

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-37430iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-201912

main44776-37450iWU710..RHD201107-201904

main44776-37470iWU710..RHD201905-202005

main44776-37490iWU710,720..LHD;XZU710,720..MTM..GCC201911-202005

44778HOSE, CONNECTOR TO CHECK VALVE

main44750-37400iWU710..RHD201905-202005

main44778-37360iXZU710,720..GEN201107-202005

main44778-37370iWU710..RHD201107-201904

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-50010iXZU710..CBU201107-202005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017910065

main90179-10065

9046615003

main90466-15003

9048022022

main90480-22022

9155180814

main91551-80814

9167380820

main91673-80820

9613341500

main96133-41500

19 parts on this diagram · 9 diagrams in section
