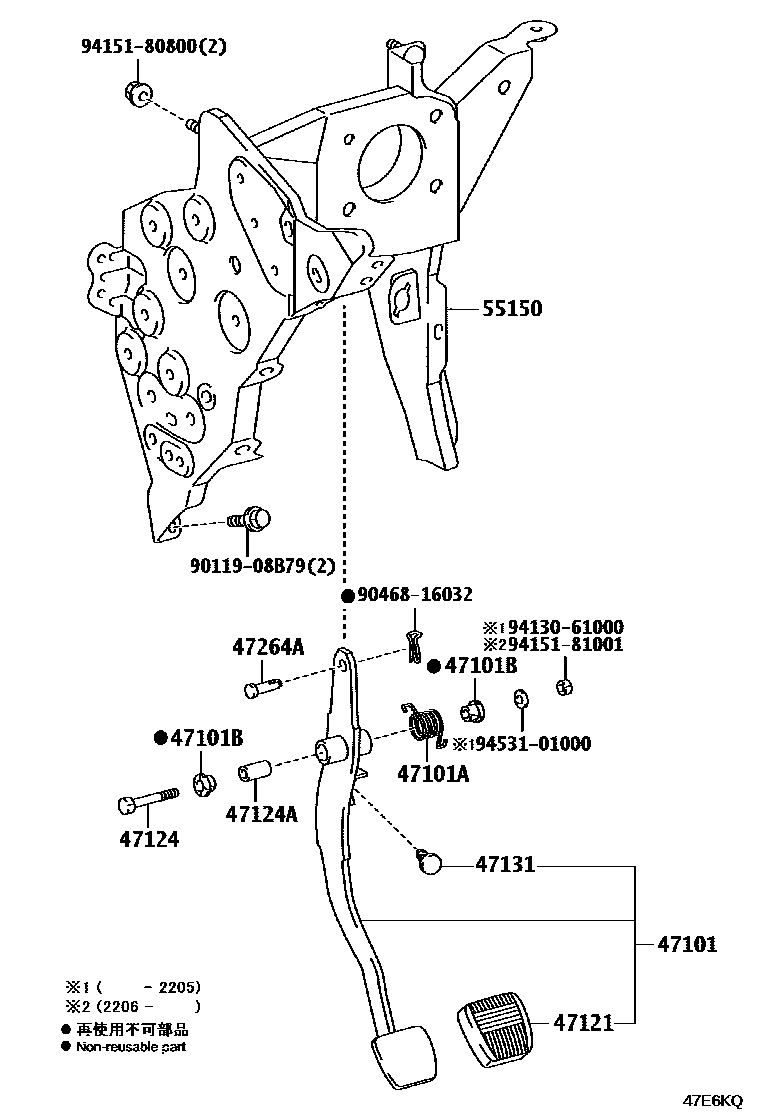

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-37140iWU700,710,720,XZU710,720..MTM..(GCC,GEN)201107-201704

sub47101-37141

main47101-37141iWU710,720;XZU710,720..MTM..GCC201705-202005

main47101-37170iXZU710,720..GEN201911

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35039iXZU710..CBU201110-202005

main90508-35324iWU700,710,720,XZU710201107-201109

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iXZU710,720,730..EUR201107-202005

47121PAD, BRAKE PEDAL

main31321-14020iXZU710..CBU201107-201704

main31321-52020iWU710,720;XZU710,720..MTM..GCC201705-202005

47124SHAFT, BRAKE PEDAL

main90119-10980iXZU710,720..GEN202206

main91112-61070iWU700,710,720;XZU710,720..MTM..GCC201107-202206

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iXZU710,720,730..EUR201107-202005

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iXZU710..CBU201107-202005

47264APIN(FOR PUSH ROD)

main90240-10037iXZU710,720,730..EUR201107-202005

55150BRACKET ASSY, PEDAL

main55150-37260iWU710..RHD201107-201209

sub55150-37261

main55150-37261iWU710..RHD201210-202005

main55150-37290iWU700,710,720,XZU710..LHD201107-201209

sub55150-37291

main55150-37291iXZU710,720,730..EUR201210-202005

main55150-37430iXZU710,720..GEN201911

9011908B79

main90119-08B79

9046816032

main90468-16032

9413061000

main94130-61000

9415180800

main94151-80800

9415181001

main94151-81001

9453101000

main94531-01000

15 parts on this diagram · 1 diagram in section
