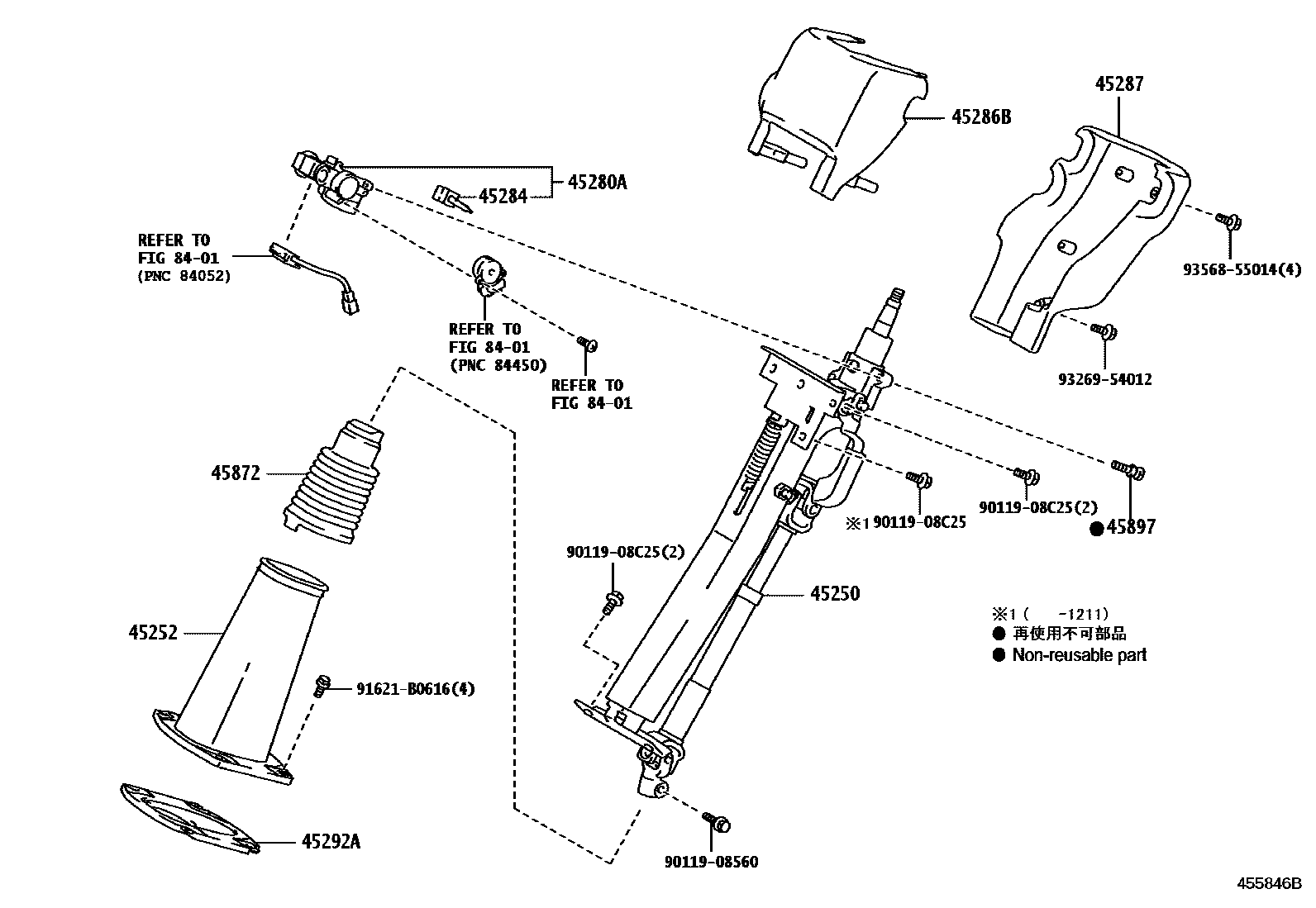

STEERING COLUMN & SHAFT

45250COLUMN ASSY, STEERING

main45250-37E60-C0iWU700,710,720,XZU710201107-201210

BLACK,TRIM1#

sub45250-37E61

main45250-37E61-C0iWU700,710,720,XZU710,720,730201211-201405

BLACK,TRIM1#

sub45250-37E62

main45250-37E62-C0iXZU710..CBU201406-202005

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37060-C0iXZU710..CBU201107-202005

BLACK,TRIM1#

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37140iWU710..85T..IV3;WU710,XZU710..(65T,75T)..(GCC,GEN);WU720,XZU720..(75T,85T)..(GCC,GEN)201107-201512

main45280-E0010iWU710,720;XZU710,720..MTM..GCC201505-202005

45284SHAFT, STEERING LOCK CAM

main45284-37020iWU710..85T..IV3;WU710,XZU710..(65T,75T)..(GCC,GEN);WU720,XZU720..(75T,85T)..(GCC,GEN)201107-201512

45286BCOVER, STEERING COLUMN, UPR

main45286-37130-C0iXZU710..CBU201107-202005

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37120-C0iXZU710..CBU201107-202005

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37080iXZU710..CBU201107-202005

45872COVER, STEERING COLUMN TUBE

main45872-37020iXZU710..CBU201107-202005

45897BOLT, STEERING LOCK SET

main45897-E0020iXZU710..CBU201107-202005

8401

9011908560

main90119-08560

9011908C25

main90119-08C25

91621B0616

main91621-B0616

9326954012

main93269-54012

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
