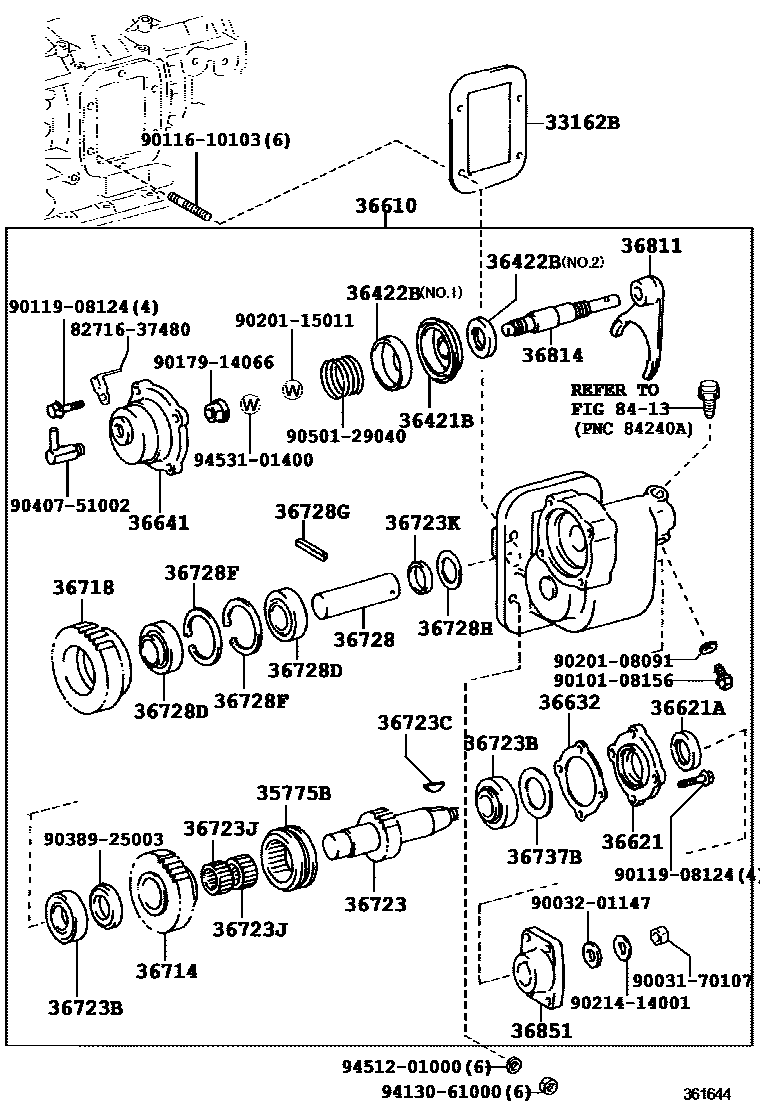

POWER TAKE-OFF CASE & GEAR

33162BGASKET, POWER TAKE-OFF COVER

35775BSLEEVE, OUTPUT SHAFT

36421BDIAPHRAGM (FOR POWER TAKE-OFF)

36422BPLATE, DIAPHRAGM (FOR POWER TAKE-OFF)

36610POWER TAKE-OFF ASSY

main90430-12001¥80

main90360-10001

main90430-12004¥80

main90430-12006¥80

main90430-18008¥110

main90311-20010¥190

main36800-37010¥15,000

main36800-37020¥15,000

main36800-37021

mainSU002-01053¥25,000

main90035-01053¥80

mainSU002-01066¥17,300

mainSU002-01098¥180

mainSU002-01099¥550

main36610-37151¥114,000

main90031-01180¥100

main36610-37290¥139,000

main36610-37291¥79,900

main36610-37331¥139,000

main36610-37332¥95,000

main36610-37350¥139,000

main36610-37351¥79,900

main36610-37410¥88,000

main36610-37411¥88,000

main36610-37412¥88,000

main36610-37450¥341,000

main36610-37590¥135,000

main36610-37591¥135,000

main36610-37601¥135,000

main36610-37602¥135,000

main36610-37603

mainSU002-00736¥740

mainSU002-00766¥4,430

mainSU002-00781¥2,780

mainSU002-00786¥260

mainSU002-00792¥9,300

mainSU002-00877¥130

mainSU002-00889¥1,030

36621RETAINER, POWER TAKE-OFF BEARING

main36621-37071¥2,170

main36621-37080¥3,100

main36621-37090¥3,750

main90311-25110¥290

main36621-93200¥2,770

mainSU002-00752¥590

mainSU002-00788¥8,200

mainSU002-00894¥5,500

36621ASEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)

36632GASKET, POWER TAKE-OFF JOINT RETAINER

main36632-37030¥230

36641CAP, POWER TAKE-OFF SHIFT SHAFT

main36641-93100¥1,590

36714GEAR, POWER TAKE-OFF OUTPUT

mainSU002-01030¥21,300

main36714-93108¥4,960

main36714-37171¥5,800

main36714-37241

36718GEAR, POWER TAKE-OFF IDLER

main36718-37110¥6,500

main36718-93112¥6,400

main36718-37161

mainSU002-00747¥590

mainSU002-00761

mainSU002-00762¥29,100

36723SHAFT, POWER TAKE-OFF OUTPUT, NO.1

main90366-22001¥2,170

main90389-25007¥350

main90387-25009¥230

main90280-07011¥100

main90364-28020¥1,210

main36723-37101¥5,200

main36723-93107¥5,700

main36723-37110¥9,600

main36723-37140¥9,600

main36723-37180¥9,600

main97100-06205¥630

mainSU002-00740¥1,470

mainSU002-00831¥17,200

mainSU002-00834¥250

36723BBEARING (FOR OUTPUT SHAFT REAR)

36723CKEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)

36723JBEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)

36723KCOLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT)

36728SHAFT, POWER TAKE-OFF IDLER

main90366-22001¥2,170

main90564-25001¥100

main90254-04002¥110

main90564-25002¥100

main90564-25003¥100

main90564-25004¥100

main90366-25011¥1,780

main36728-37020¥1,760

main36728-37060

main36728-93107¥660

main90521-56108¥730

mainSU002-00725¥160

mainSU002-00743¥2,220

mainSU002-00838¥3,070

mainSU002-00839¥3,070

mainSU002-00840¥3,070

mainSU002-00841¥3,070

mainSU002-00842¥3,070

mainSU002-00843¥3,070

mainSU002-00850¥4,810

36728DBEARING (FOR POWER TAKE-OFF IDLER SHAFT)

36728FRING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)

36728GPIN (FOR POWER TAKE-OFF IDLER SHAFT)

36728HSHIM (FOR POWER TAKE-OFF IDLER SHAFT)

36737BSHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)

36811FORK, POWR TAKE-OFF SHIFT, NO.1

main36811-37030

main36811-93104¥880

mainSU002-00851¥420

36814SHAFT, POWR TAKE-OFF FORK, NO.1

main90254-06006¥100

main90254-05017¥110

main90254-05022¥150

main36814-37060¥1,580

main36814-37080¥1,320

main36814-37090

main36814-37091

main36814-37100¥1,320

main36814-93104¥2,220

36851RETAINER, POWER TAKE-OFF JOINT

main36851-37010¥1,220

main36851-37030¥2,370

main36851-37040

mainSU002-00898¥4,870

8413

8271637480BRACKET, WIRING HARNESS CLAMP, LH

main82716-37480¥150

9003170107

main90031-70107¥100

9003201147

main90032-01147¥100

9010108156

main90101-08156¥210

9011610103

main90116-10103¥200

9011908124

main90119-08124¥120

9017914066

main90179-14066¥220

9020108091

main90201-08091¥90

9020115011

main90201-15011¥70

9021414001

main90214-14001¥530

9038925003

main90389-25003¥800

9040751002

main90407-51002¥350

9050129040

main90501-29040¥390

9413061000

main94130-61000¥70

9451201000

main94512-01000¥90

9453101400

main94531-01400¥100

42 parts on this diagram · 10 diagrams in section
