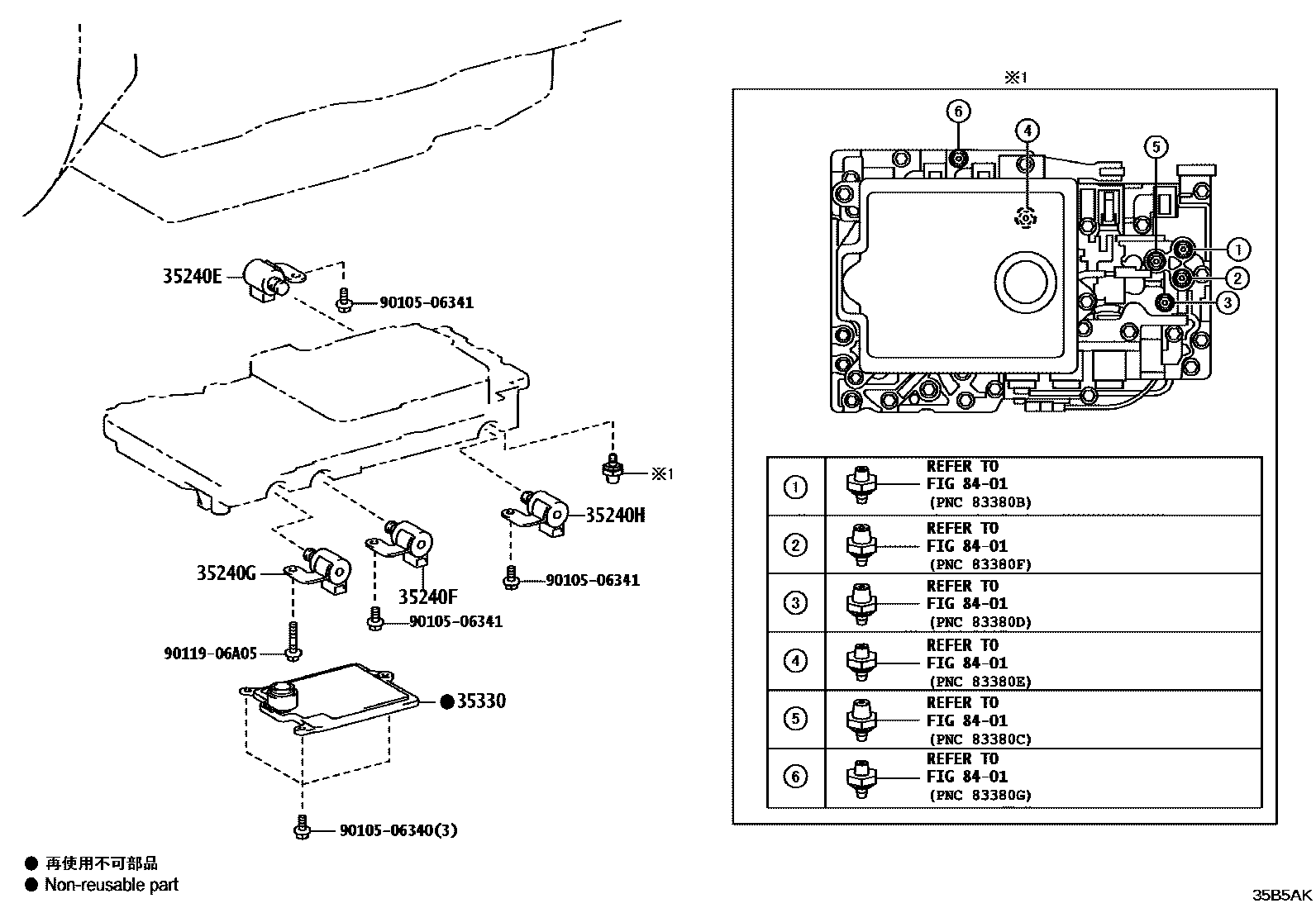

VALVE BODY & OIL STRAINER (ATM)

Parts diagram

35240EVALVE, SOLENOID(S1)

main85420-37010i201107-201505

35240FVALVE, SOLENOID(S2)

main85420-37010i201107-201505

35240GVALVE, SOLENOID(S3)

main85420-37010i201107-201505

35240HVALVE, SOLENOID(S4)

main85420-37010i201107-201505

35330STRAINER ASSY, VALVE BODY OIL

main35330-37010i201107-201505

8401

9010506340

main90105-06340

9010506341

main90105-06341

9011906A05

main90119-06A05

9 parts on this diagram · 2 diagrams in section
