SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-80013iXZU710..CBU201107-201505

N=18,MARK 18:5

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37020iXZU710..CBU201107-201505

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-21014iXZU710..CBU201107-201505

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iXZU710..CBU201107-201505

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXZU710..CBU201107-201505

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iXZU710..CBU201107-201505

8301

9161160814

main91611-60814

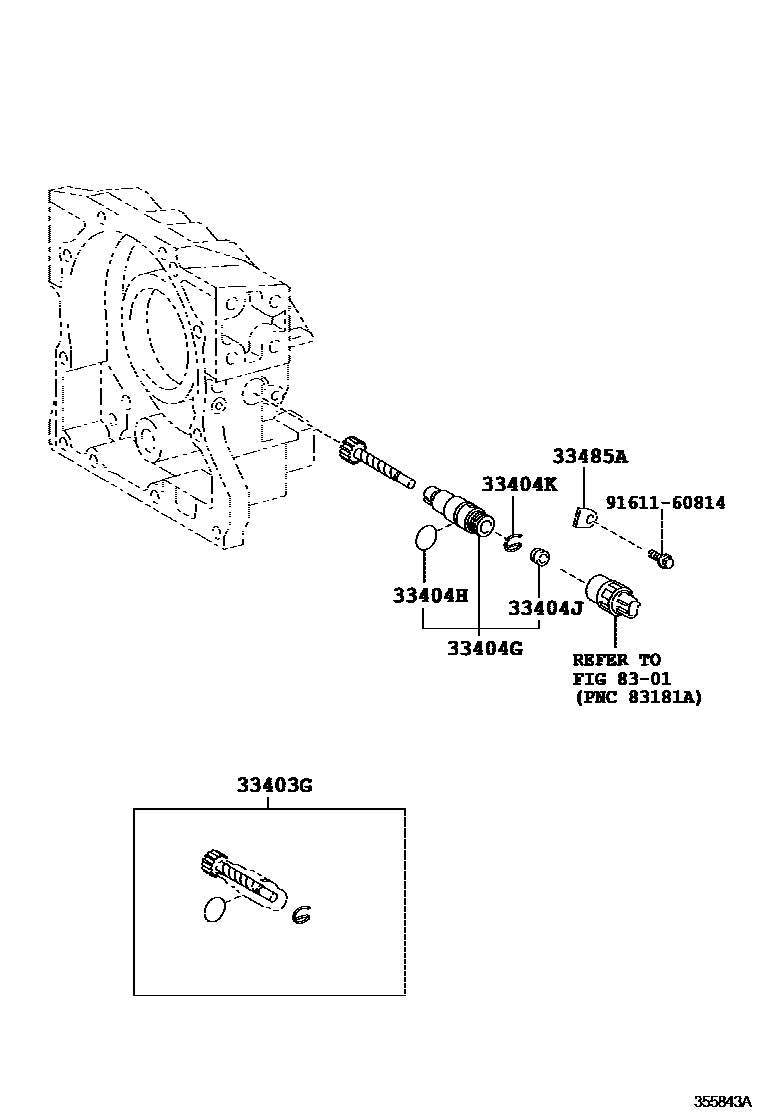

8 parts on this diagram · 1 diagram in section
