TRANSMISSION CASE & OIL PAN (ATM)

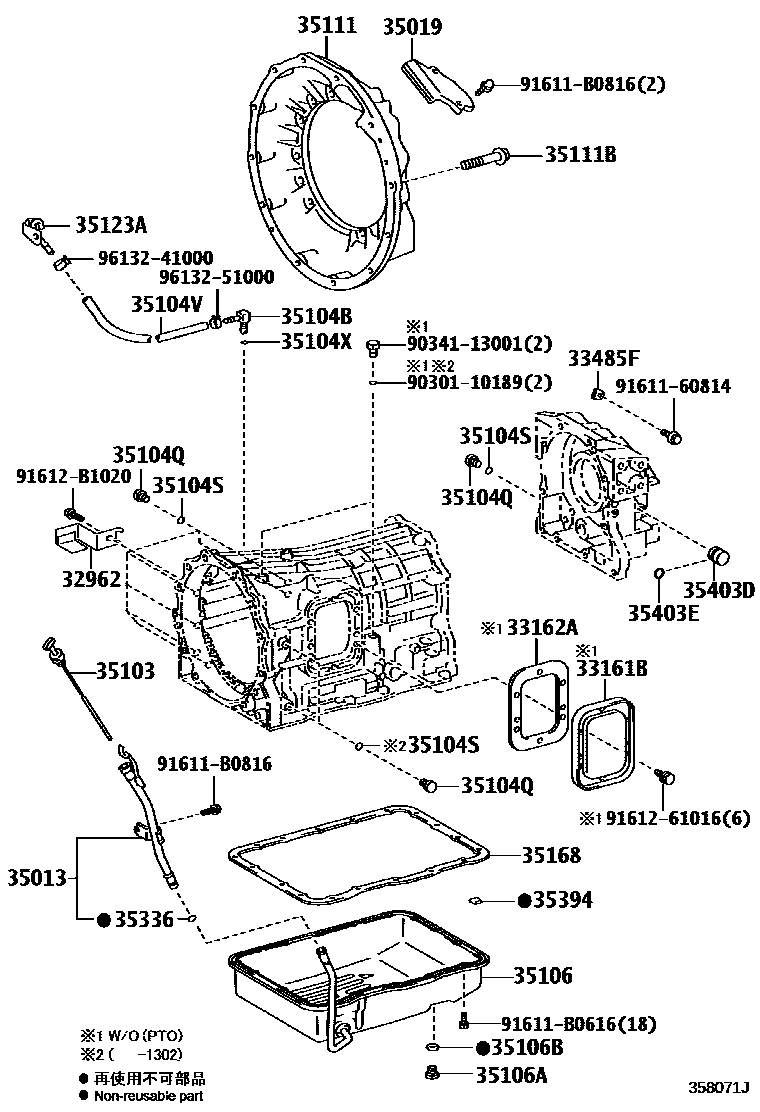

Parts diagram
32962INSULATOR, OIL TEMPERATURE SWITCH HEAT
main32962-37030i201107-201505
33161BCOVER, TRANSMISSION POWER TAKE-OFF
main33161-37020i201107-201505
33162AGASKET, TRANSMISSION POWER TAKE-OFF
main33162-37020i201107-201505
33485FPLATE, SPEEDMETER LOCK
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
main33485-30020i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
main33485-30020i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
main35013-37111i201107-201505
35019COVER SUB-ASSY, TRANSMISSION CASE DUST
main35019-37040i201107-201505
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
main35103-37113i201107-201505
35104BPLUG, BREATHER, NO.1 (ATM)
main90930-03094i201107-201505
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
main90341-13001i201107-201505
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
main90301-10189i201107-201302
35104VHOSE (FOR BREATHER PLUG)
main90445-11160i201107-201312
sub35012-37010
sub31484-37450
35104XRING, O (FOR BREATHER PLUG)
main90301-06005i201107-201505
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
main35106-37080i201107-201505
35106APLUG SUB-ASSY, DRAIN (ATM)
main90341-18057i201107-201505
35106BGASKET, DRAIN PLUG (ATM)
main12157-10010i201107-201505
35111HOUSING, AUTOMATIC TRANSMISSION
main35111-37020i201107-201505
35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)
main90119-10898i201107-201505
*14-1.50PX50-26
35123ASKIRT, TRANSMISSION BREATHER
main35123-37051i201107-201312
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
main35168-37010i201107-201505
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
main90301-09011i201107-201505
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
main35394-30011i201107-201505
35403DCAP, SPEED SENSOR DUST
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
mainG347337010i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
mainG347337010i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
35403ERING, O(FOR SPEED SENSOR DUST CAP)
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
main90301-21014i201107-201505
ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-215/75R17.5 126 RIB
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 RIB
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-10 F:RIB R:RIB-LUG
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 RIB
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 LUG
main90301-21014i201107-201505
POWER TAKE OFF-OIL PUMP SEPARATE TYPE&ABS-WITH(POWER ASSIST BRAKE)&TIRE & DISK WHEEL-750R16-12 F:RIB R:RIB-LUG
9030110189
main90301-10189
9034113001
main90341-13001
9161160814
main91611-60814
91611B0616
main91611-B0616
91611B0816
main91611-B0816
9161261016
main91612-61016
91612B1020
main91612-B1020
9613241000
main96132-41000
9613251000
main96132-51000

32 parts on this diagram · 2 diagrams in section
