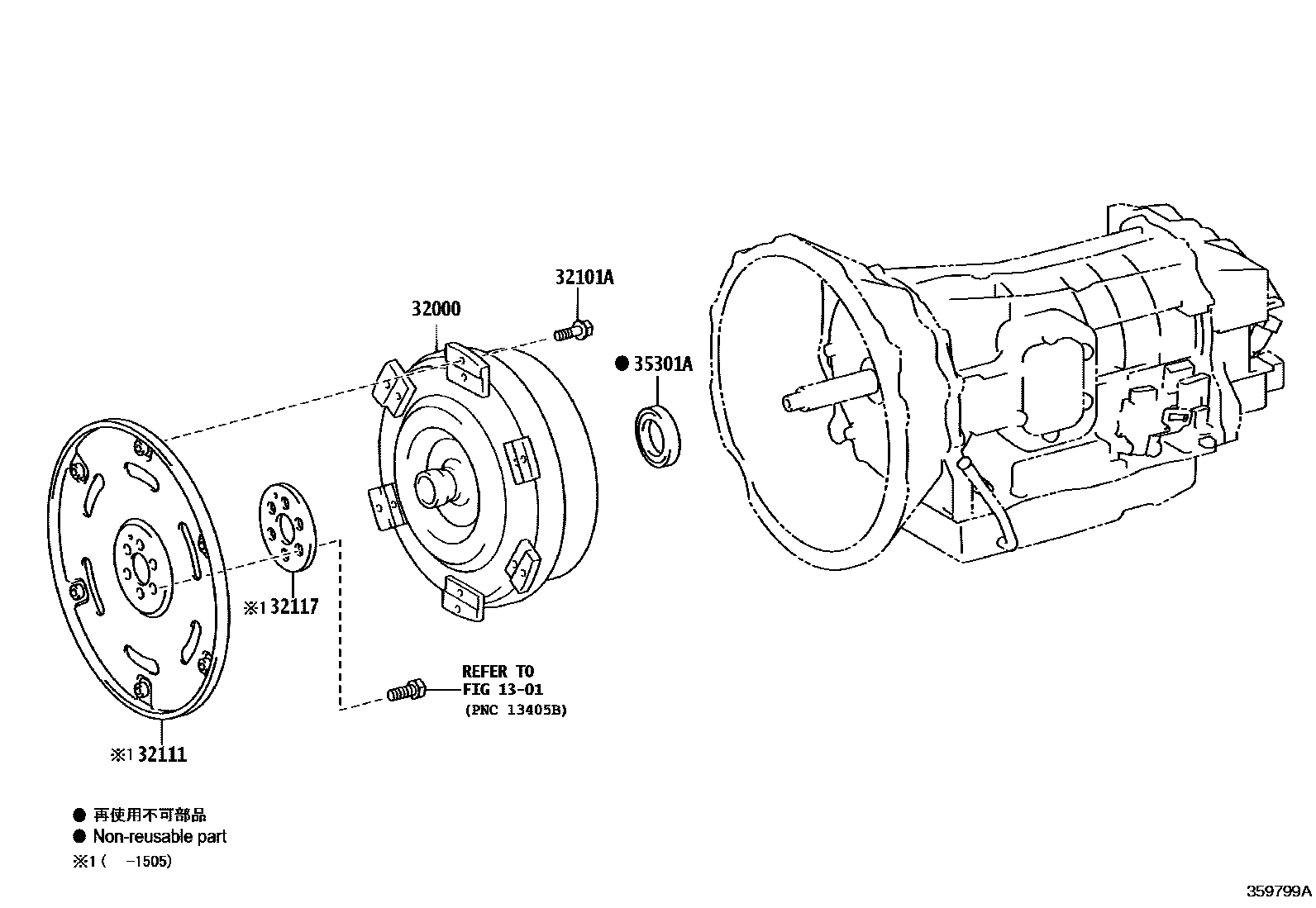

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

1301

32000CONVERTER ASSY, TORQUE

main32000-37060iXZU710..CBU201107-201505

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-10894iXZU710..CBU201107-201505

*10-1.25PX28-23

32111PLATE, PUMP IMPELLER DRIVE

main32111-37060iXZU710..CBU201107-201505

sub32111-37050

32117SPACER, DRIVE PLATE, REAR

main32117-37050iXZU710..CBU201107-201505

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-46009iXZU710..CBU201107-201505

6 parts on this diagram · 1 diagram in section
