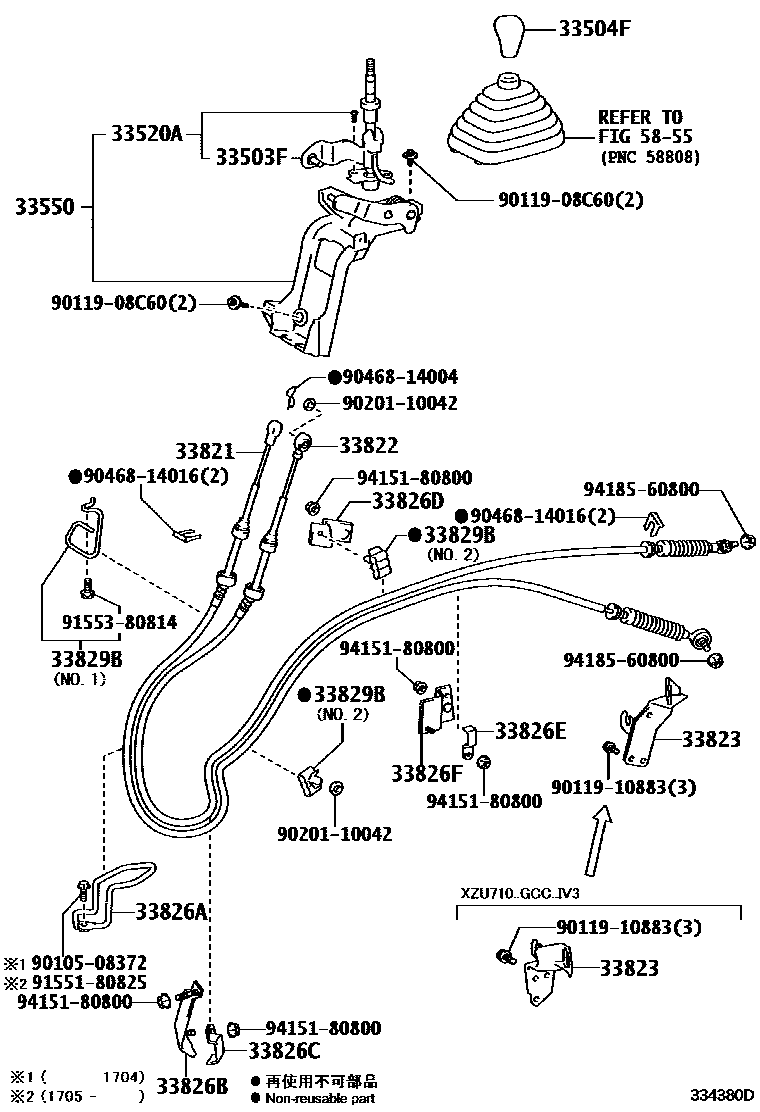

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33054-37030iWU710..RHD201308-202005

main33054-37040iWU700,710,720..LHD;XZU710,720..MTM..GCC201308-202005

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-C0iXZU710..5F..GCC;WU700,710,720..5F201107-202005

BLACK,TRIM1#

sub33504-36051

main33504-37060-C0iWU710,720,XZU710,720..6F..GCC201107-202005

BLACK,TRIM1#

main33504-37100-C0iXZU710..CBU201107-201505

BLACK,TRIM1#

sub33504-37101

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-37030iWU710..RHD201107-202005

main33520-37040iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-37330-C0iWU710..RHD201107-201307

BLACK,TRIM1#

sub33550-37331

main33550-37331-C0iWU710..RHD201308-202005

BLACK,TRIM1#

main33550-37400-C0iXZU710..CBU201107-201505

BLACK,TRIM1#

main33550-37410-C0iWU700,710,720,XZU710..LHD..5F201107-201307

BLACK,TRIM1#

sub33550-37411

main33550-37411-C0iXZU710,720..GEN201308-202005

BLACK,TRIM1#

main33550-37420-C0iWU710,720,XZU710,720,730..6F201107-201307

BLACK,TRIM1#

sub33550-37421

main33550-37421-C0iXZU710,720,730..EUR201308-202005

BLACK,TRIM1#

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33820-37M00iXZU710..GCC..IV3201108-201604

sub33820-37M01

main33820-37M01iXZU710..5F..GCC201605-202005

main33820-37M10iXZU710,720,730..EUR201211-202005

main33820-37M60iWU710..RHD..75T;WU700,710,720..65T201107-202005

main33820-37N30iWU710,720..LHD..75T..GEN201107-202005

main33820-37N40iWU710,720..6F201107-202005

main33820-37P51iXZU710,720..GEN201911

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33830-37580iXZU710..5F..GCC201108-202005

main33830-37590iXZU710,720..6F..GCC201211-202005

main33830-37630iWU710..RHD..75T;WU700,710,720..65T201107-202005

main33830-37690iWU710,720..LHD..75T..GEN201107-202005

main33830-37700iWU710,720..6F201107-202005

main33830-37761iXZU710,720..GEN201911

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-37600iXZU710..5F..GCC201108-202005

main33823-37750iWU710..RHD..75T;WU700,710,720..65T201107-202005

main33823-37770iWU710,720..LHD..75T..GEN201107-202005

main33823-37810iWU710,720..6F201107-202005

main33823-37880iXZU710..CBU201107-201505

main33823-37A60iXZU710,720,730..EUR201211-202005

main33823-37B40iXZU710,720..GEN201911

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-37B90iXZU710..CBU201107-202005

33826BBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33826-37A50iXZU710..CBU201107-202005

33826CBRACKET, TRANSMISSION CONTROL CABLE, NO.4

main33826-37580iWU700,710,720;XZU710,720..MTM..GCC201107-202005

33826DBRACKET, TRANSMISSION CONTROL CABLE, NO.5

main33827-37160iXZU710..CBU201107-202005

33826EBRACKET, TRANSMISSION CONTROL CABLE, NO.6

main33826-37580iXZU710..CBU201107-202005

33826FBRACKET, TRANSMISSION CONTROL CABLE, NO.7

main33827-37320iXZU710..CBU201107-202005

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-37210iXZU710..CBU201107-202005

NO.2

main33829-37340iWU710..RHD201107-202005

NO.1

main33829-37360iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

NO.1

5855

9010508372

main90105-08372

9011908C60

main90119-08C60

9011910883

main90119-10883

9020110042

main90201-10042

9046814004

main90468-14004

9046814016

main90468-14016

9155180825

main91551-80825

9155380814

main91553-80814

9415180800

main94151-80800

9418560800

main94185-60800

25 parts on this diagram · 4 diagrams in section
