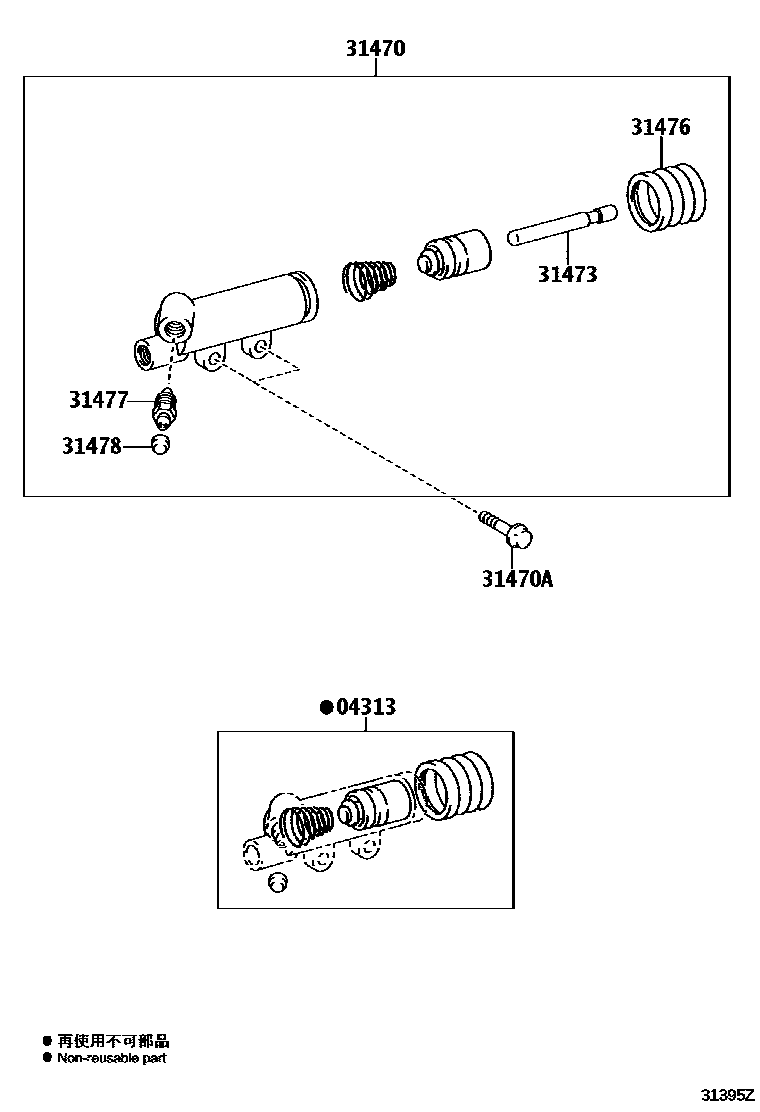

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iWU700,710,720,XZU710,720..MTM201107-201306

main04313-37090iWU700,710,720,XZU710,720,730..MTM201307-201411

main04313-37091iXZU710,720,730..EUR201411-201512

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37080iWU700,710,720,XZU710,720..MTM201107-201306

main31470-37081iWU700,710,720,XZU710,720,730..MTM201307-201410

main31470-37082iXZU710,720,730..EUR201411-201512

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825×2iXZU710,720,730..EUR201107-201512

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37050iXZU710,720,730..EUR201107-201512

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU710,720,730..EUR201107-201512

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU710,720,730..EUR201107-201512

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU710,720,730..EUR201107-201512

7 parts on this diagram · 1 diagram in section
