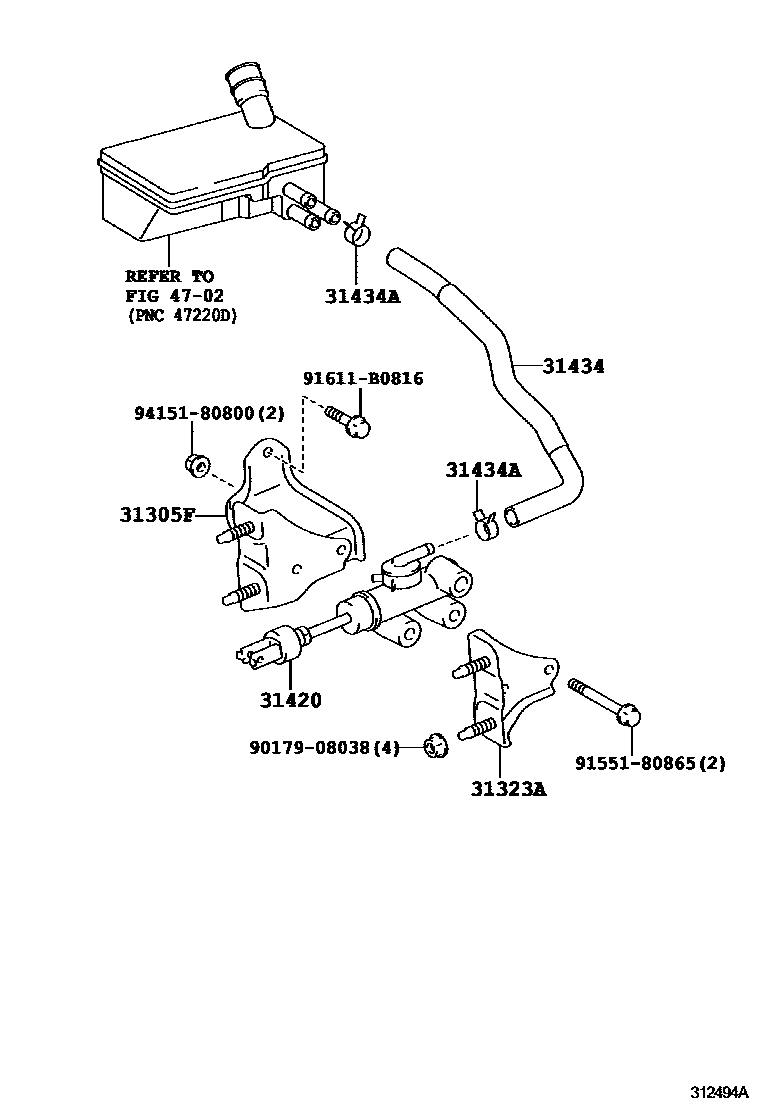

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

31305FBRACKET SUB-ASSY, CLUTCH PEDAL

main31305-37060iWU700,710,720;XZU710,720..MTM..GCC201107-202005

31323ABRACKET, CLUTCH PEDAL

main31323-37120iWU700,710,720;XZU710,720..MTM..GCC201107-202005

31420CYLINDER ASSY, MASTER W/O RESERVOIR

main31420-37141iWU700,710,720,XZU710,720..MTM..(GCC,GEN)201107-201311

sub31420-37142

main31420-37142iXZU710,720..GEN201312-202005

31434TUBE, CLUTCH RESERVOIR

main31434-37260iWU710..RHD201107-202005

main31434-37270iXZU710,720,730..EUR201306-201512

main31434-37280iWU700,710,720..LHD;XZU710,720..MTM..GCC201107-202005

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300iXZU710,720,730..EUR201107-202005

4702

9017908038

main90179-08038

9155180865

main91551-80865

91611B0816

main91611-B0816

9415180800

main94151-80800

10 parts on this diagram · 3 diagrams in section
