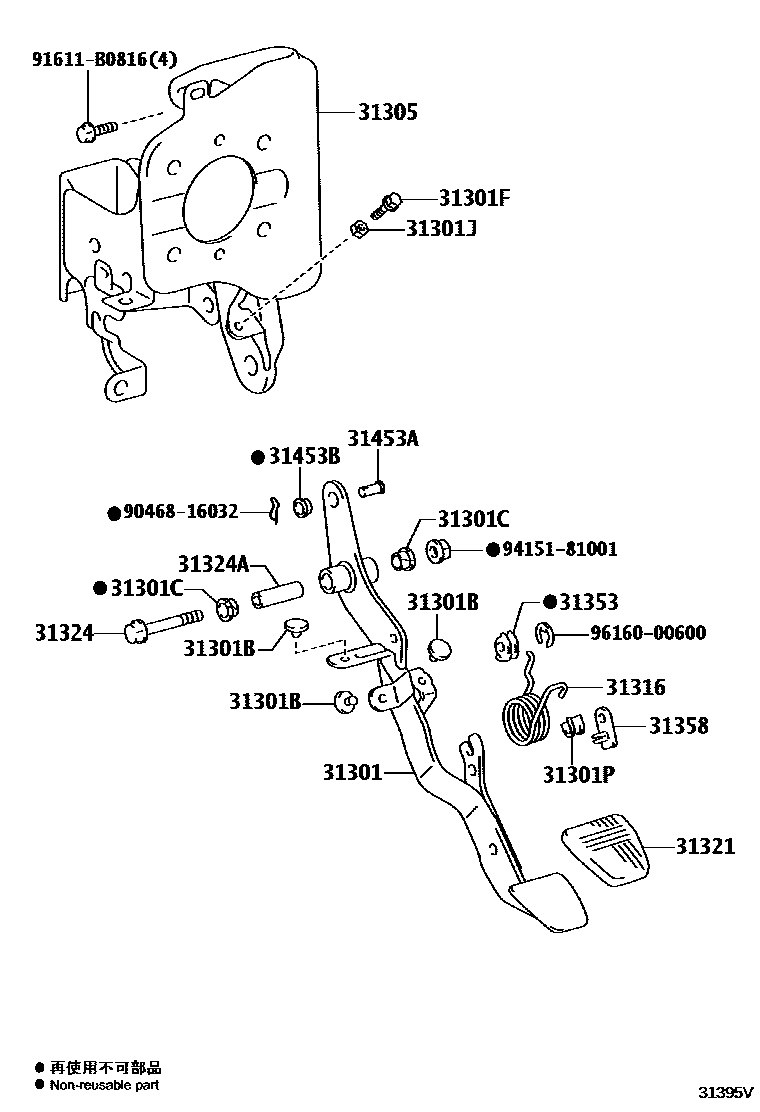

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37340iXZU710,720,730..EUR¥2,150201306-201512

main31301-37380iXZU710,720..GEN¥2,650201107-201912

sub31301-37381¥2,650

sub31316-37021¥800

main31301-37381iXZU710,720..GEN¥2,650201912-202005

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iXZU710,720,730..EUR¥110201107-202005

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iXZU710,720..GEN¥120201107-202005

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main91551-80825iXZU710,720,730..EUR¥80201107-202005

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-60800iXZU710,720,730..EUR¥60201107-202005

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iWU700,710,720;XZU710,720..MTM..GCC¥100201107-202005

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main31305-37020iXZU710,720,730..EUR¥4,400201306-201512

main31305-37040iXZU710,720..GEN¥4,400201107-202005

31316SPRING, TURNOVER CLUTCH PEDAL

main31316-37020iWU700,710,720,XZU710,720..MTM..(GCC,GEN)¥510201107-201912

sub31316-37021¥800

main31316-37021iWU710,720;XZU710,720..MTM..GCC¥800201912-202108

sub31316-37022¥800

main31316-37022iXZU710,720..GEN¥800202109

31321PAD, CLUTCH PEDAL

main31321-14020iXZU710,720,730..EUR¥200201107-201704

main31321-52020iWU710,720;XZU710,720..MTM..GCC¥200201705-202005

31324SHAFT, CLUTCH PEDAL

main91552-81060iWU700,710,720;XZU710,720..MTM..GCC¥160201107-202005

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iXZU710,720,730..EUR¥370201107-202005

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iWU700,710,720;XZU710,720..MTM..GCC¥660201107-202107

main31353-37010iXZU710,720..GEN¥510202108

31358CAP, OVER CENTER SPRING

main31358-42010iWU700,710,720;XZU710,720..MTM..GCC¥430201107-202005

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iWU700,710,720;XZU710,720..MTM..GCC¥160201107-202005

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iWU700,710,720;XZU710,720..MTM..GCC¥240201107-202005

9046816032

main90468-16032¥80

91611B0816

main91611-B0816¥140

9415181001

main94151-81001¥110

9616000600

main96160-00600¥80

19 parts on this diagram · 5 diagrams in section
