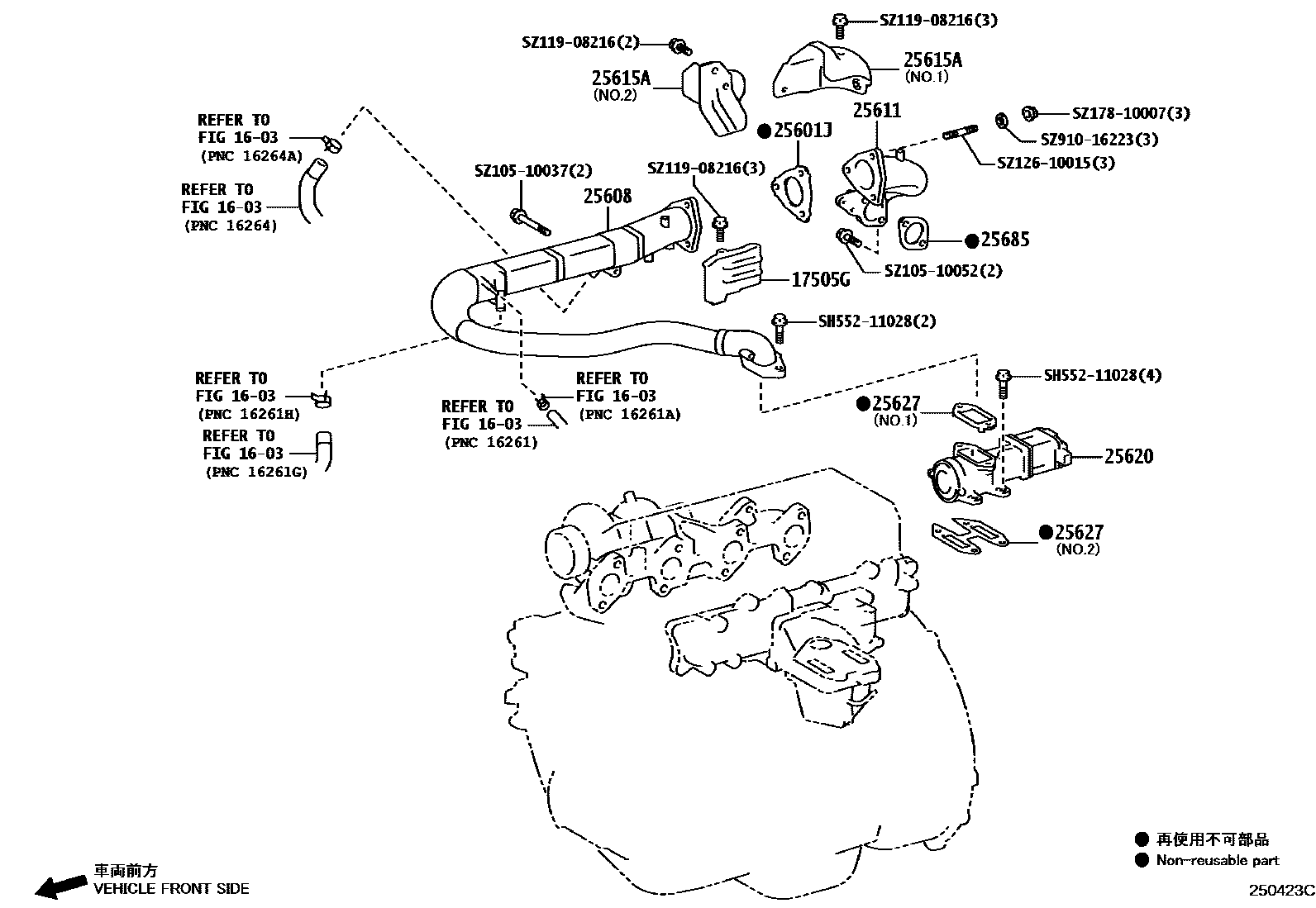

EXHAUST GAS RECIRCULATION SYSTEM

1603

17505GINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-E0710iN04C..XZU710,720,730..EUR201306-201512

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110iN04C..XZU710,720,730..EUR201306-201512

25608COOLER SUB-ASSY, EGR

main25608-E0201iN04C..XZU710,720,730..EUR201306-201512

25611CONNECTOR, EGR PIPE

main25611-E0370iN04C..XZU710,720,730..EUR201306-201512

sub25611-E0371

25615AINSULATOR, EGR PIPE

main17505-78230iN04C..XZU710,720,730..EUR201306-201512

NO.2

main17505-E0A70iN04C..XZU710,720,730..EUR201306-201512

NO.1

25620VALVE ASSY, EGR

main25620-E0252iN04C..XZU710,720,730..EUR201306-201512

sub25620-E0253

25627GASKET, EGR VALVE

main25627-E0130iN04C..XZU710,720,730..EUR201306-201512

NO.1

main25627-E0140iN04C..XZU710,720,730..EUR201306-201512

NO.2

25685GASKET, EGR COOLER, NO.1

mainS171042020iN04C..XZU710,720,730..EUR201306-201512

SH55211028

mainSH552-11028

SZ10510037

mainSZ105-10037

SZ10510052

mainSZ105-10052

SZ11908216

mainSZ119-08216

SZ12610015

mainSZ126-10015

SZ17810007

mainSZ178-10007

SZ91016223

mainSZ910-16223

16 parts on this diagram · 1 diagram in section
