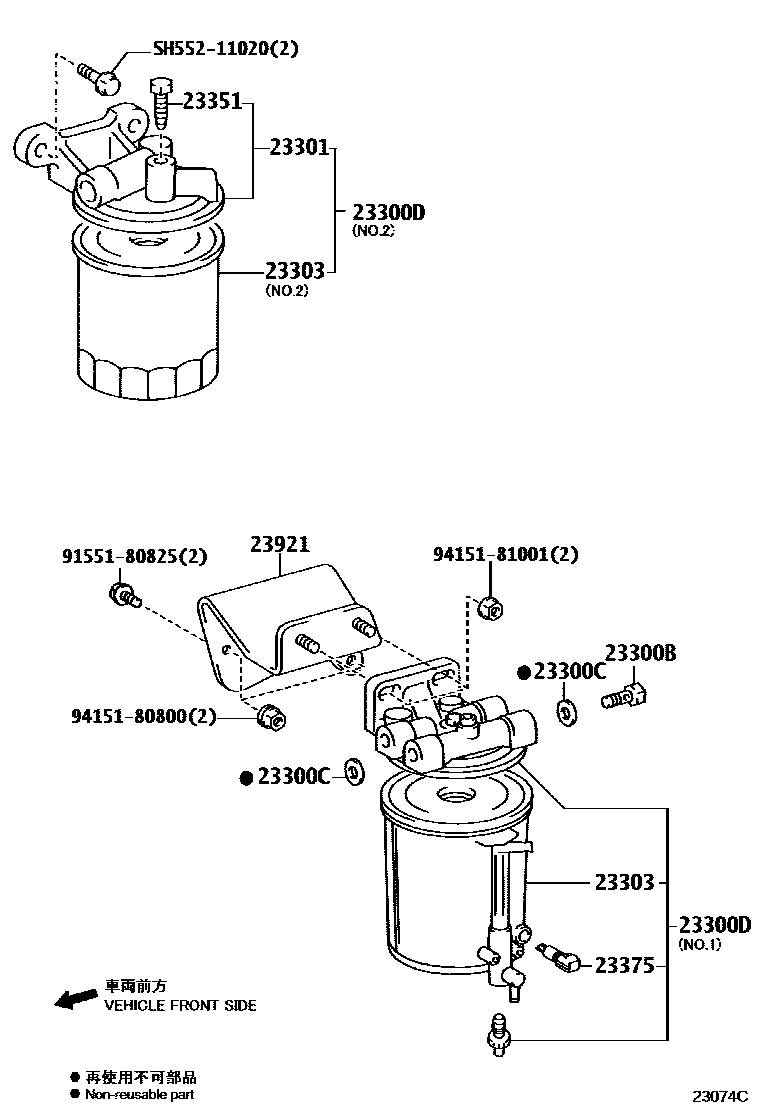

FUEL FILTER

0001 1 0002 1 0003 1FRAME SIDE 0004 1 0005 1ENGINE SIDE 0006 1ENGINE SIDE

23300FILTER ASSY, FUEL

main23300-78470iN04C..XZU710,720,730201107-201311

sub23300-78471

main23300-78471iN04C..XZU710,720,730201312-201409

sub23300-78472

main23300-78472iN04C..XZU710,720,730201410-201503

sub23300-78473

main23300-78473iN04C..XZU710..CBU201504-201805

sub23300-78474

main23300-78474iN04C..XZU710,720..MTM..GCC201806-202005

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

mainSZ40114024iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

23300CGASKET, NIPPLE UNION(FOR FUEL)

mainSZ43014003iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-78110iW04D..WU700,710,720201107-202005

NO.1

main23300-78500iN04C..XZU710,720..GEN201911-202009

sub23300-78501

main23300-78501iN04C..XZU710,720..GEN202010

main23300-E0382iN04C..XZU710,720,730..EUR201306-201401

sub23300-E0383

main23300-E0570iN04C..XZU710,720,730..EUR201401-201512

sub23300-78420

mainS233001912iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

NO.2

mainS233002360iW04D..WU710,720..LHD..(75T,85T)201107-202005

NO.2

23301BODY SUB-ASSY, FUEL FILTER

main23301-78470iN04C..XZU710,720201107-201304

sub23301-78471

main23301-78471iN04C..XZU710,720,730201304-201312

sub23301-78472

main23301-78472iN04C..XZU710,720..MTM..GCC201312-202001

sub23301-78473

main23301-78473iN04C..XZU710,720..MTM..GCC202001-202005

main23301-78500iN04C..XZU710,720..GEN201911-202101

sub23301-78501

main23301-78501iN04C..XZU710,720..GEN202101

mainS233101420iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS233101660iW04D..WU710,720..LHD..(75T,85T)201107-202005

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-78090iN04C..XZU710201107-201209

sub23304-78091

main23304-78091iN04C..XZU710..CBU201209-202005

main23304-78110iW04D..WU700,710,720201107-202005

NO.1

mainS234011133iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

NO.2

mainS234011510iW04D..WU710,720..LHD..(75T,85T)201107-202005

NO.2

23351PLUG, AIR VENT

mainS233161040iW04D..WU700,710,720201107-202005

sub23322-78030

23375SENSOR, FUEL FILTER

main23375-78110iW04D..WU700,710,720201107-202005

23921SUPPORT, FUEL FILTER

main23264-E0220iW04D..WU710,720..LHD..(75T,85T)201107-202005

NO.2

main23921-78470iW04D..WU700,710,720201107-202005

NO.1

main23921-78570iN04C..XZU710,720,730..EUR201107-202005

main23921-78730iN04C..XZU710,720..GEN201911

TYPE B:REFER ILLUST.

9155180825

main91551-80825

9415180800

main94151-80800

9415181001

main94151-81001

SH55211020

mainSH552-11020

13 parts on this diagram · 6 diagrams in section
