INJECTION PUMP BODY

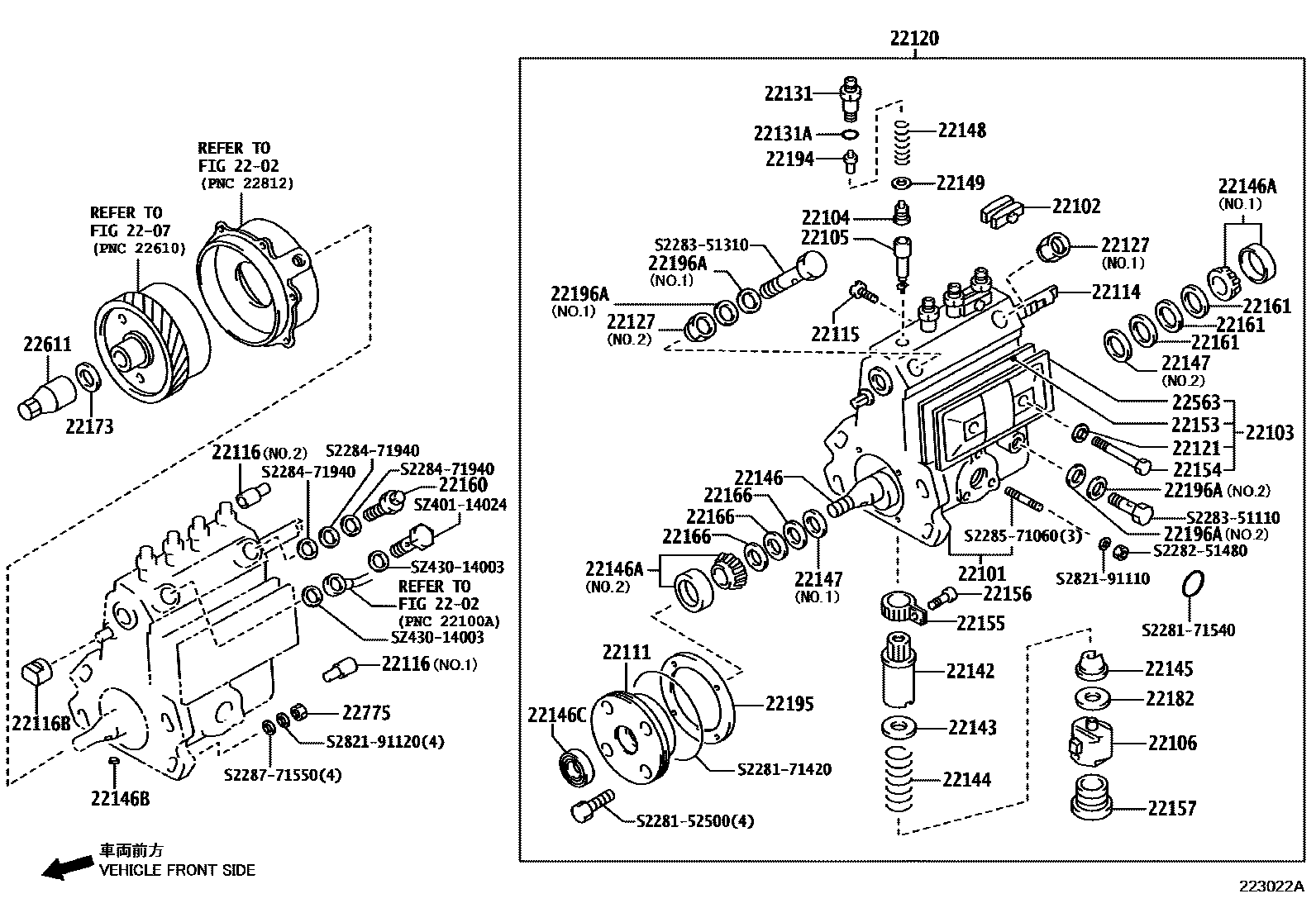

Parts diagram
2202
2207
22101HOUSING SUB-ASSY, INJECTION PUMP
mainS221012710i201107-202005
mainS221014410i201107-202005
22102PLATE SET, VALVE HOLDER LOCK
mainS221091170i201107-202005
sub22102-58230
22103COVER SUB-ASSY, INJECTION PUMP
mainS221701640i201107-202005
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
mainS221031460i201107-202005
mainS221032700i201107-202005
22105ELEMENT SUB-ASSY, INJECTION PUMP
mainS221041730i201107-202005
mainS221044550i201107-202005
22106TAPPET SUB-ASSY, INJECTION PUMP
mainS221051020i201107-202005
mainS221051480i201107-202005
22111COVER, INJECTION PUMP CAMSHAFT BEARING
mainS221111600i201107-202005
mainS221111670i201107-202005
22114RACK, CONTROL
mainS221131500i201107-202005
sub22114-78130
mainS221131870i201107-202005
22115SCREW, RACK GUIDE
mainS228114850i201107-202005
sub22115-78140
22116COVER, CONTROL RACK
mainS223231210i201107-202005
NO.1
mainS223231430i201107-202005
NO.2
mainS223231550i201107-202005
NO.3
22116BCOVER, CONTROL RACK
mainS221141250i201107-202005
mainS221141420i201107-202005
22120BODY ASSY,INJECTION
mainS221103680i201107-202005
mainS221103860i201107-202005
22121PACKING, AIR BLEEDER SCREW
mainS228471890i201107-202005
22127UNION, INJECTION PUMP FUEL INLET
mainS221311050i201107-202005
NO.1
mainS221311580i201107-202005
mainS221311640i201107-202005
NO.2
22131HOLDER, DELIVERY VALVE
mainS221161100i201107-202005
mainS221161230i201107-202005
22131ARING, O(FOR DELIVERY VALVE HOLDER)
mainS228171260i201107-202005
sub90099-14070
22142SLEEVE, PLUNGER CONTROL
mainS221181310i201107-202005
mainS221181320i201107-202005
22143SEAT, SPRING UPPER
mainS221191090i201107-202005
subS2211-91140
mainS221191190i201107-202005
22144SPRING, PUMP PLUNGER
mainS221211110i201107-202005
mainS221211170i201107-202005
22145SEAT, SPRING, LOWER
mainS221221120i201107-202005
mainS221221280i201107-202005
22146CAMSHAFT, INJECTION PUMP
mainS221231530i201107-202005
mainS221232430i201107-202005
22146ABEARING(FOR INJECTION CAMSHAFT)
mainS228371050i201107-202005
mainS228371100i201107-202005
NO.2
sub90099-10151
mainS228371230i201107-202005
NO.1
sub90099-10087
22146BKEY(FOR INJECTION PUMP CAMSHAFT)
mainS228911070i201107-202005
mainS228951080i201107-202005
22146CSEAL, OIL, INJECTION PUMP CAMSHAFT
mainS228271040i201107-202005
sub90099-15028
mainS228271750i201107-202005
22147RING, CAMSHAFT ADJUST
mainS221241090i201107-202005
NO.1
sub22147-78030
mainS221241100i201107-202005
NO.2
mainS221241160i201107-202005
NO.2
sub22147-77020
22148SPRING, DELIVERY VALVE
mainS221251070i201107-202005
mainS221251430i201107-202005
22149GASKET, DELIVERY VALVE
mainS228471720i201107-202005
22153GASKET, INJECTION PUMP COVER PLATE
mainS228471990i201107-202005
22154SCREW(FOR INJECTION PUMP COVER SETTING)
mainS228151550i201107-202005
22155PINION, PLUNGER CONTROL
mainS221281020i201107-202005
sub22155-76010
22156SCREW, PLUNGER CONTROL PINION CLAMP
mainS228651280i201107-202005
sub22156-76010
22157PLUG, INJECTION PUMP FELT PLATE
mainS228451420i201107-202005
22160SCREW SUB-ASSY, OVERFLOW
mainS221071500i201107-202005
mainS221071750i201107-202005
HIGH ALTITUDE COMPENSATOR-WITH
22161PLATE, CAMSHAFT SHIM
mainS221291190i201107-202005
T=1.00
sub22166-78030
mainS221291200i201107-202005
T=1.50
sub22166-78031
mainS228854900i201107-202005
T=0.10
sub22161-76010
mainS228854910i201107-202005
T=0.12
sub22162-76010
mainS228854920i201107-202005
T=0.14
sub22163-76010
mainS228854930i201107-202005
T=0.16
sub22164-76010
mainS228854940i201107-202005
T=0.18
sub22165-76010
mainS228854950i201107-202005
T=0.50
sub22166-76010
mainS228855830i201107-202005
T=0.30
sub22166-78140
mainS228855840i201107-202005
T=2.00
sub22166-78141
mainS228856660i201107-202005
T=0.03
22166PLATE, CAMSHAFT SHIM
mainS221291170i201107-202005
T=1.00
sub22166-78036
mainS221291180i201107-202005
T=1.50
sub22166-78037
mainS221291210i201107-202005
T=0.10,NO.2
mainS221291220i201107-202005
T=0.16,NO.2
mainS221291230i201107-202005
T=0.30,NO.2
mainS221291240i201107-202005
T=0.50,NO.2
mainS228851550i201107-202005
T=0.10,NO.1
sub22166-78032
mainS228851560i201107-202005
T=0.16,NO.1
sub22166-78033
mainS228851570i201107-202005
T=0.30,NO.1
sub22166-78034
mainS228851580i201107-202005
T=0.50,NO.1
sub22166-78035
mainS228855680i201107-202005
T=0.12,NO.1
sub22166-78142
mainS228855690i201107-202005
T=0.14,NO.1
sub22166-78143
mainS228855700i201107-202005
T=0.18,NO.1
sub22166-78144
mainS228856670i201107-202005
T=0.03,NO.1
mainS228856690i201107-202005
T=0.12,NO.2
mainS228856700i201107-202005
T=0.14,NO.2
mainS228856710i201107-202005
T=0.18,NO.2
mainS228856730i201107-202005
T=0.03,NO.2
22173WASHER, SPRING
mainS228671320i201107-202005
22182PLATE, TAPPET ADJUSTING SHIM
mainS228851130i201107-202005
T=0.60
sub22187-46010
mainS228851140i201107-202005
T=0.70
mainS228851150i201107-202005
T=0.80
mainS228851160i201107-202005
T=0.90
mainS228851170i201107-202005
T=1.00
mainS228851180i201107-202005
T=1.10
mainS228851190i201107-202005
T=1.20
mainS228851230i201107-202005
T=0.10
sub22182-46010
mainS228851240i201107-202005
T=0.20
sub22183-46010
mainS228851250i201107-202005
T=0.15
sub22185-48010
mainS228851330i201107-202005
T=1.30
sub22189-48035
mainS228851340i201107-202005
T=1.40
sub22189-48036
mainS228851350i201107-202005
T=0.30
sub22184-46010
mainS228851360i201107-202005
T=0.40
sub22185-46010
mainS228851370i201107-202005
T=0.50
sub22186-46010
mainS228852270i201107-202005
T=0.13
sub22186-78030
22194STOPPER, DELIVERY VALVE
mainS221171040i201107-202005
mainS221171310i201107-202005
22195GASKET, BEARING COVER
mainS228433040i201107-202005
mainS228472750i201107-202005
22196SCREW, FUEL INLET FOLLOW
mainS228351310i201107-202005
sub90099-18010
22196AWASHER(FOR INLET FOLLOW SCREW)
mainS228471900i201107-202005
NO.2
subS2287-71120
mainS228771100i201107-202005
NO.1
sub90099-01502
22563PLATE, INJECTION PUMP COVER
mainS221271210i201107-202005
22611NUT, TIMER ROUND
mainS225111060i201107-202005
mainS228252240i201107-202005
22775NUT, LOCK(FOR INJECTION PUMP)
mainS228251490i201107-202005
mainS228252070i201107-202005
S228152500
mainS2281-52500
S228171420
mainS2281-71420
S228171540
mainS2281-71540
S228251480
mainS2282-51480
S228351110
mainS2283-51110
S228351310
mainS2283-51310
S228471940
mainS2284-71940
S228571060
mainS2285-71060
S228771550
mainS2287-71550
S282191110
mainS2821-91110
S282191120
mainS2821-91120
SZ40114024
mainSZ401-14024
SZ43014003WASHER, SOFT, NO.1
mainSZ430-14003
