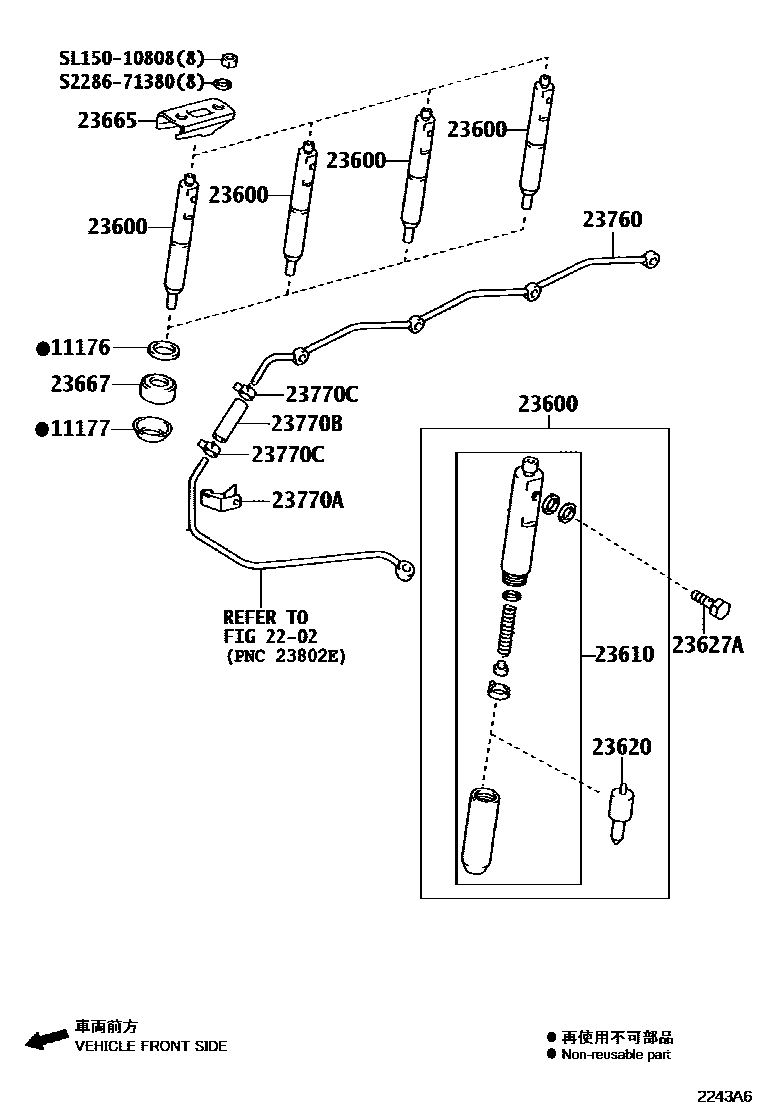

INJECTION NOZZLE

0001 1 0002 1 0003 1

11176SEAT, INJECTION NOZZLE

mainS111761200iN04C..XZU710..CBU201107-202005

mainSZ91011017iW04D..WU700,710,720201107-202005

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XZU710..CBU201107-202005

mainS236611140iW04D..WU700,710,720201107-202005

2202

23600HOLDER & NOZZLE SET, NOZZLE

mainS236101710iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS236102270iW04D..WU710,720..LHD..(75T,85T)201107-202005

23610HOLDER ASSY, NOZZLE

mainS236301640iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS236302160iW04D..WU710,720..LHD..(75T,85T)201107-202005

23620NOZZLE ASSY

mainS236501620iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS236502370iW04D..WU710,720..LHD..(75T,85T)201107-202005

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XZU710,720..MTM..GCC201210-202005

mainS228351320iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS228351570iN04C..XZU710201107-201210

sub21811-E0050

23665ADAPTER, NOZZLE HOLDER

mainS236651110iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

23667RING, PACKING, NO.2(FOR NOZZLE)

mainS236671070iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS236671110iW04D..WU710,720..LHD..(75T,85T)201107-202005

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XZU710,720..MTM..GCC201905-202005

main23708-E0090iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main23761-E0020iW04D..WU710,720..LHD..(75T,85T)201107-202005

mainS230812630iN04C..XZU710,720,730..EUR201107-201905

23770ACLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET)

mainS799041950iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

23770BHOSE, FUEL

mainSZ92031066iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

L=65

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

mainS799041240iW04D..WU710,720..LHD..(75T,85T)201107-202005

mainSZ46611003iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

S228671380

mainS2286-71380

SL15010808

mainSL150-10808

15 parts on this diagram · 3 diagrams in section
