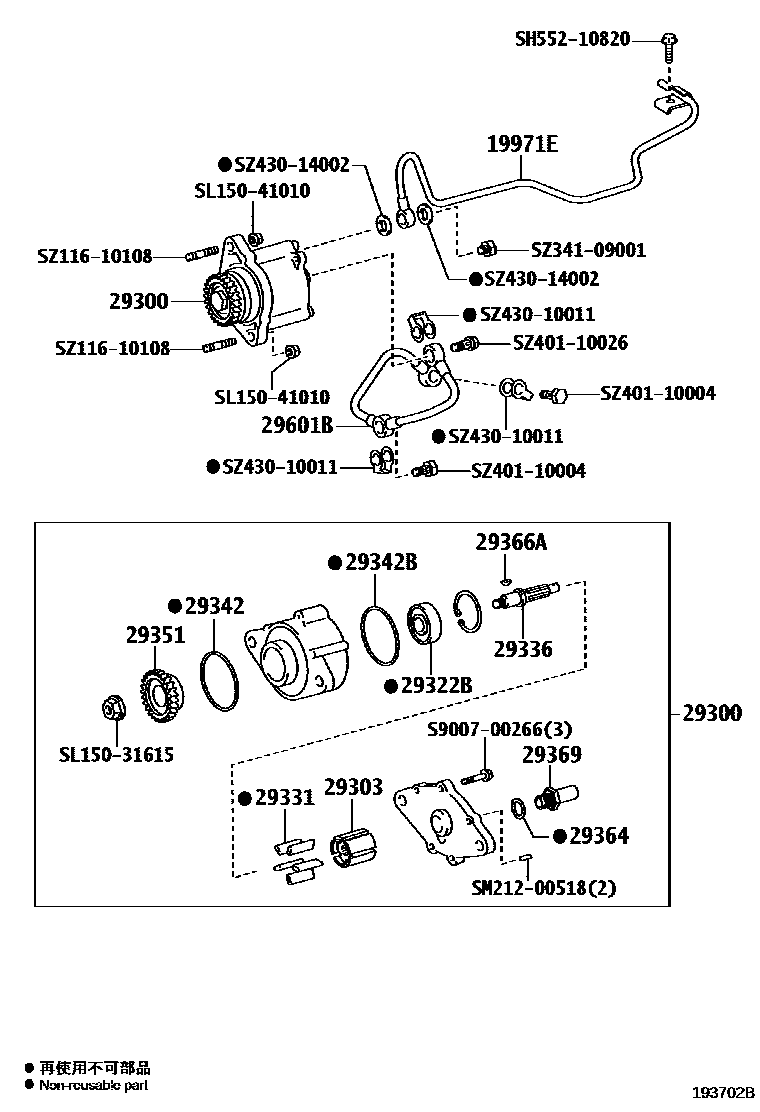

VACUUM PUMP

0001 1 0002 1 0004 1 0007 1 0008 1 0009 1

19971EPIPE, VACUUM

main87207-37F50iN04C..XZU710,720..GEN¥2,600201911

main87207-E0051iN04C..XZU710..CBU¥2,350201107-202005

main87207-E0123iN04C..XZU710,720,730..EUR¥3,650201306-201512

main87207-E0150iW04D..WU700,710,720201107-202005

29300PUMP ASSY, VACUUM

main29300-E0051iN04C..XZU710¥25,200201107-201505

sub29300-E0090¥25,200

sub29300-E0100¥25,200

main29300-E0090iN04C..XZU710,720..MTM..GCC¥25,200201506-202005

main29300-E0100iN04C..XZU710,720,730¥25,200201202-201309

sub29300-E0051¥25,200

mainS293001481iW04D..WU700,710,720201107-202005

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-EV020iN04C..XZU710,720,730..EUR¥2,220201506-202005

mainS293031020iN04C..XZU710,720,730..IV3201107-201506

29322BBEARING, VACUUM PUMP

mainS291721160iN04C..XZU710201107-201506

29331BLADE, VACUUM PUMP, A

main29331-EV020iN04C..XZU710,720,730..EUR201506-202005

mainS293311100iN04C..XZU710..CBU201107-201506

mainS293311130iW04D..WU700,710,720201107-202005

29336SHAFT, VACUUM PUMP

mainS293361030iN04C..XZU710,720,730..IV3201107-201506

29342PACKING, VACUUM PUMP

main29343-EV020iN04C..XZU710,720,730¥370201202-201309

sub29343-EV030¥280

main29343-EV030iN04C..XZU710,720,730..EUR¥280201506-202005

mainS293421160iW04D..WU700,710,720201107-202005

mainSZ01046050iN04C..XZU710201107-201506

29342BRING, O

mainSZ01046051iN04C..XZU710,720,730..IV3201107-201506

29351GEAR, VACUUM PUMP

mainS136331050iN04C..XZU710..CBU201107-201506

29364WASHER, VACUUM PUMP

main29364-66010iN04C..XZU710,720,730..EUR¥180201309-201506

29366AKEY, VACUUM PUMP

mainSM16100413iN04C..XZU710201107-201506

29369VALVE SUB-ASSY, CHECK

main29369-EV020iN04C..XZU710,720,730¥1,700201202-201309

sub29369-EV060¥1,700

main29369-EV060iN04C..XZU710,720,730..EUR¥1,700201506-202005

mainS293011270iN04C..XZU710201107-201506

mainS293011290iW04D..WU700,710,720201107-202005

29601BPIPE SUB-ASSY, OIL(FOR VACUUM PUMP)

main29601-E0320iN04C..XZU710..CBU¥2,400201107-202005

S900700266

mainS9007-00266

SH55210820

mainSH552-10820¥340

SL15031615

mainSL150-31615

SL15041010

mainSL150-41010¥200

SM21200518

mainSM212-00518¥130

SZ11610108

mainSZ116-10108¥390

SZ34109001

mainSZ341-09001¥810

SZ40110004

mainSZ401-10004¥210

SZ40110026

mainSZ401-10026¥970

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011¥210

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002¥250

24 parts on this diagram · 6 diagrams in section
