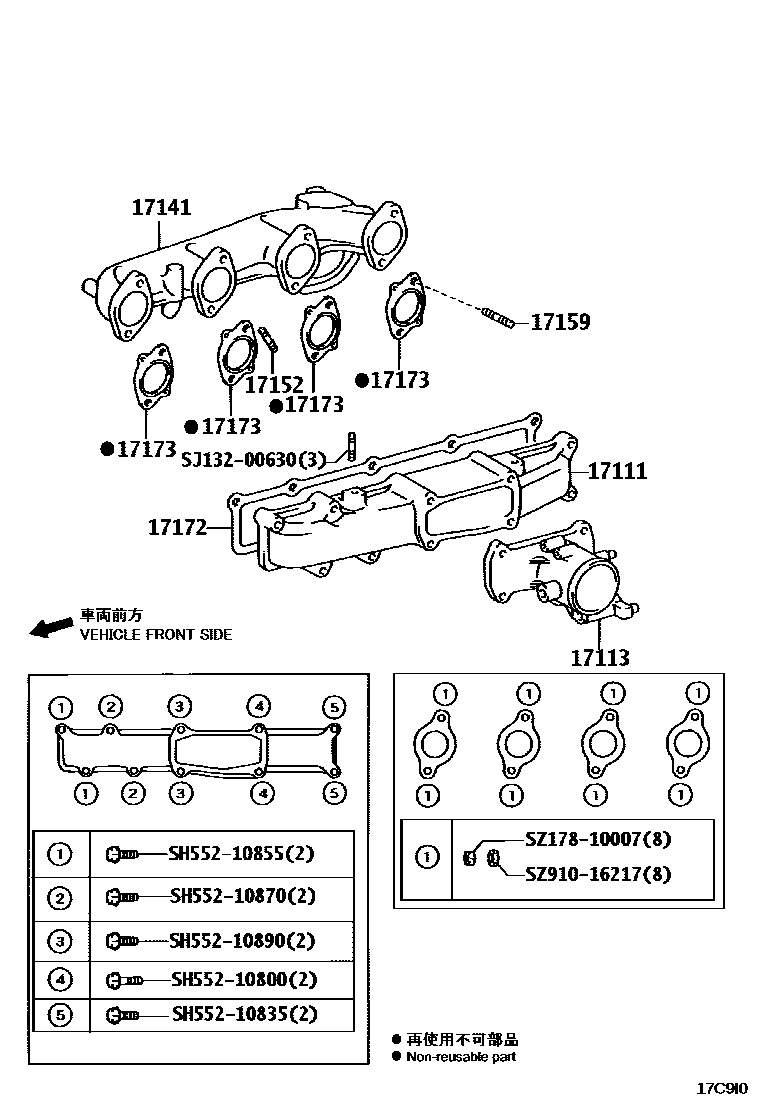

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17111MANIFOLD, INTAKE

main17111-78110iN04C..XZU710,720..GEN201911

main17111-E0040iW04D..WU710,720..LHD..(75T,85T)201107-202005

main17111-E0210iN04C..XZU710..CBU201107-201505

main17111-E0270iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

main17111-E0351iN04C..XZU710,720,730..EUR201306-201512

sub17111-E0352

17113PIPE, INTAKE

main17103-E0190iW04D..WU710,720..LHD..(75T,85T)201107-202005

NO.1

main17113-78091iN04C..XZU710,720..GEN201911

main17113-78441iN04C..XZU710,720,730..EUR201306-201512

sub17113-78442

main17113-E0V81iW04D..WU710,720..LHD..(75T,85T)201107-202005

NO.2

mainS171138240iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

17141MANIFOLD, EXHAUST

main17141-78170iN04C..XZU710,720..MTM..GCC202004-202005

main17141-E0360iN04C..XZU710,720..MTM..GCC201107-202004

main17141-E0370iN04C..XZU710,720,730..EUR201306-201512

mainS171416312iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

mainS171416432iW04D..WU710,720..LHD..(75T,85T)201107-202005

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

mainSZ12610015×3iN04C..XZU710..CBU201107-201505

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

mainSZ12610006×4iN04C..XZU710,720..GEN201911

mainSZ12610012×2iN04C..XZU710201107-201203

17172GASKET, MANIFOLD TO CYLINDER HEAD

mainS171712220iW04D..WU710..RHD..75T;W04D..WU700,710,720..65T201107-202005

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78080×4iN04C..XZU710,720..MTM..GCC201612-202005

mainS171041880×4iN04C..XZU710,720,730..EUR201107-201512

SH55210800

mainSH552-10800

SH55210835

mainSH552-10835

SH55210855

mainSH552-10855

SH55210870

mainSH552-10870

SH55210890

mainSH552-10890

SJ13200630

mainSJ132-00630

SZ17810007

mainSZ178-10007

SZ91016217

mainSZ910-16217

15 parts on this diagram · 7 diagrams in section
