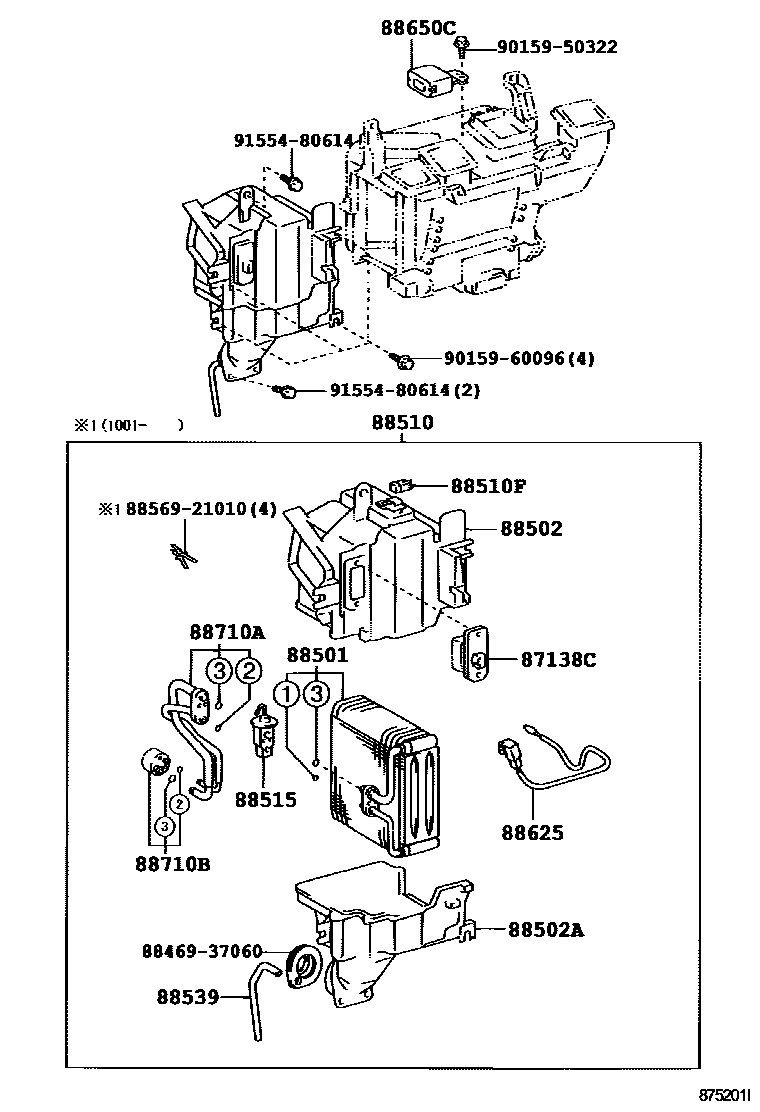

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0004 1 0006 1 0007 1O-RING

87138CRESISTOR, BLOWER

main87138-37090iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201208

main87138-37220iBU410,420200302-200902

sub87138-37090

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iWU410..RHD..GEN200110-201001

main88501-37070iBU410,420200302-201208

main88501-37090iWU410..RHD201001-201106

88502CASE SUB-ASSY, COOLING UNIT

main88502-37050iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201001

main88502-37060iWU410..RHD201001-201106

88502ACASE SUB-ASSY, COOLING UNIT

main88502-37040iWU410..RHD..GEN200110-201001

main88502-37070iWU410..RHD201001-201106

88510UNIT ASSY, COOLER

main88510-37120iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201001

main88510-37200iXZU412,422..6F200302-200808

sub88510-37270

main88510-37230iWU410..RHD201001-201106

main88510-37270iWU41#,422,XZU413,417,419,423,427,429,439..LHD200809-201006

sub88510-37271

main88510-37271iWU41#,422,XZU41#,42#,439..LHD201007-201208

88510FHOLDER, FUSE

main82630-95J03iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201001

88515VALVE, COOLER EXPANSION

main88515-28160iWU410..RHD..GEN200311-201208

main88515-48040iWU410,XZU41#,422,424..LHD..5F200110-200311

main88515-60150iWU410..RHD201001-201106

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-37060iWU410..RHD..GEN200110-201106

main88539-37070iXZU412,422..6F200607-201208

88625THERMISTOR, COOLER, NO.1

main88625-20460iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200802

sub88625-32150

main88625-32150iWU41#,422,XZU417,427..LHD200610-201208

main88625-37020iWU410..RHD201001-201106

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37120iWU410,XZU412,414,422,424..LHD..5F200110-201208

main88650-37290iWU410..RHD201001-201106

88710ATUBE ASSY, AIR CONDITIONER

main88710-37340iWU410..RHD..GEN200110-201001

main88710-37460iWU410,XZU412,414,422,424..LHD..5F200607-201208

main88710-37480iWU410..RHD201001-201106

88710BTUBE ASSY, AIR CONDITIONER

main88710-37350iWU41#,422,XZU417,427..LHD200610-201208

8846937060SWITCH, PRESSURE CONTROL

main88469-37060

8856921010CLAMP (FOR COOLER RELAY)

main88569-21010

9015950322

main90159-50322

9015960096

main90159-60096

9155480614

main91554-80614

17 parts on this diagram · 5 diagrams in section
