MIRROR

0001 1INNER MIRROR 0002 1OUTER MIRROR(DOOR MIRROR) 0003 1OUTER MIRROR 0004 1OUTER MIRROR 0006 1OUTER MIRROR COVER

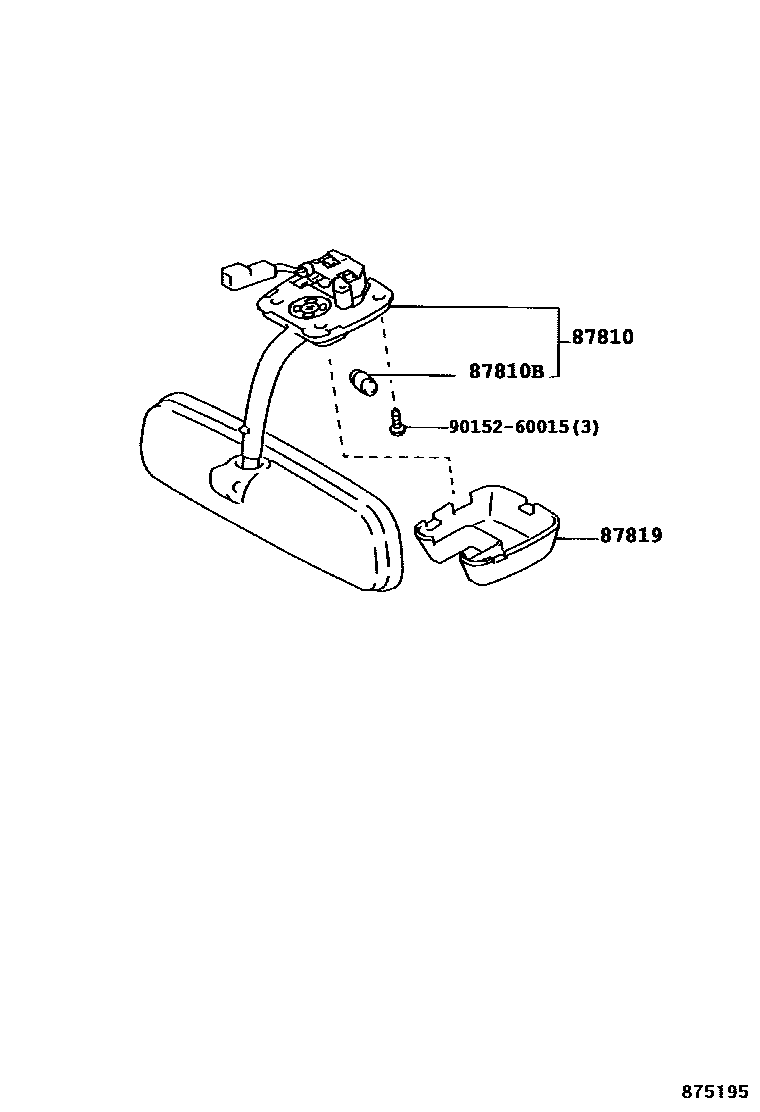

87810MIRROR ASSY, INNER REAR VIEW

main87810-37050-B0iWU410,420,XZU41#,42#,43#..EUR,GCC,SA200110-200512

MD.CHARCOAL,TRIM1#

sub87810-37051

main87810-37051iXZU414,424,434..EUR200601-200605

sub87810-37052

main87810-37051-B0iWU410,420,XZU412,420,422,430..GCC,SA200601-200605

MD.CHARCOAL,TRIM1#

sub87810-37052

main87810-37052iXZU414,424,434..EUR200606-200608

main87810-37052-B0iXZU415,425,435200606-200802

MD.CHARCOAL,TRIM1#

main87810-37060-B0iBU410,420,WU410,XZU404,41#,422,424,434..ARL,GEN,TAIW200110-200605

MD.CHARCOAL,TRIM1#

sub87810-37061

main87810-37061-B0iBU410,420200606-200802

MD.CHARCOAL,TRIM1#

main87810-37070-B0iWU410..65T..(GCC,SA);WU412,42#,XZU415,419,423,425,429,433,435,439..(EUR,GCC,SA)..(DCRTJ,DCRTK,DSL)200610-201208

MD.CHARCOAL,TRIM1#

main87810-37080-B0iWU41#,422,XZU413,417,423,427..GEN,TAIW200610-201106

MD.CHARCOAL,TRIM1#

sub87810-37080

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-16019iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

24V 10W

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87819-25010iXZU414,424,434..EUR200110-201208

9015260015

main90152-60015

4 parts on this diagram · 5 diagrams in section
