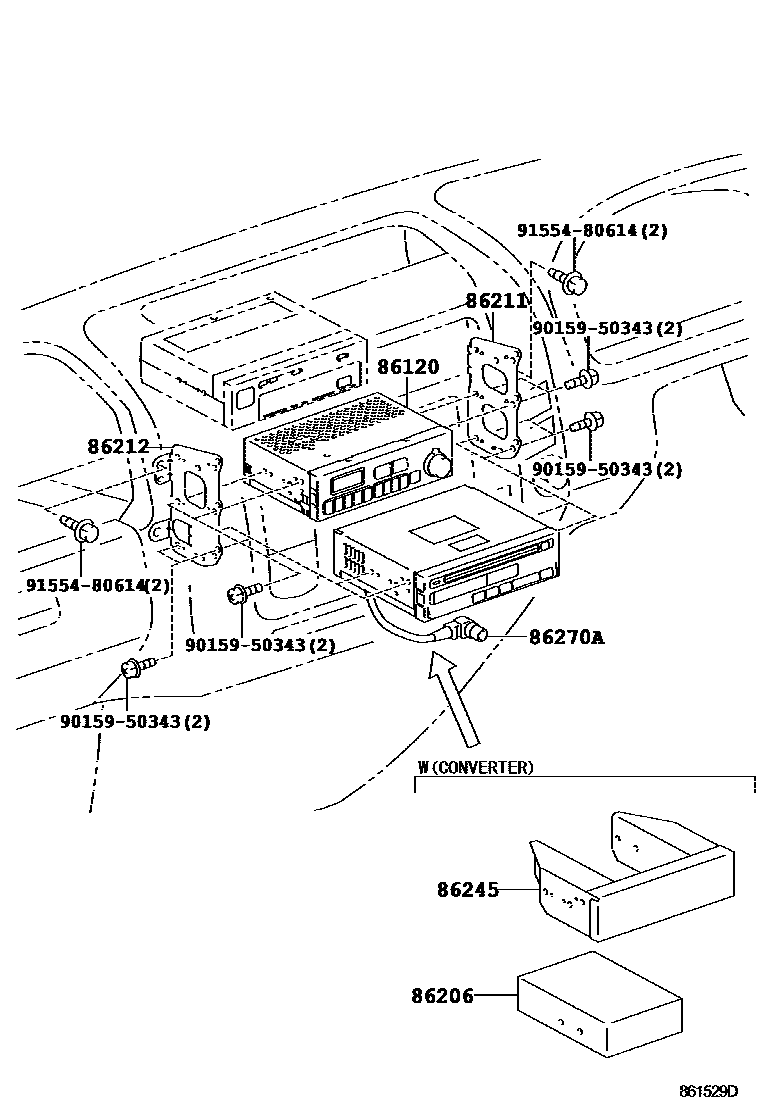

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-37150iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-200802

HINOJIDOU,TYPE A:REFER TO ILLUSTRATION

main86120-37160iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200110-200802

HINOJIDOU,TYPE B:REFER TO ILLUSTRATION

main86120-37170iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200610-201106

HINOJIDOU,TYPE C:REFER TO ILLUSTRATION

main86120-37180iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200610-201106

HINOJIDOU,TYPE D:REFER TO ILLUSTRATION

main86120-37190iXZU413,423..6F..GEN200801-201106

HINOJIDOU,TYPE E:REFER TO ILLUSTRATION,P/N LABEL=8612037190

main86120-37320iWU41#,422,XZU413,423..LHD..GEN200808-201106

CLARION,TYPE E:REFER TO ILLUSTRATION,P/N LABEL=8612037320

86206CONVERTER SUB-ASSY, VOLTAGE

main86206-37060iXZU404,414,424..RHD..GEN200110-200610

86211BRACKET, RADIO, NO.1

main86211-37050iWU410,420,XZU420,430..SA200110-201106

main86211-37060iWU410,XZU412,414,422,424..LHD..5F200302-201106

86212BRACKET, RADIO, NO.2

main86212-37030iWU410,420,XZU404,41#,42#,43#..RHD200110-200606

sub86212-37031

main86212-37031iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200607-201106

main86212-37040iXZU412,422..6F200302-201106

86245BRACKET, VOLTAGE CONVERTER

main86245-37010iXZU404,414,424..RHD..GEN200110-200610

86270ADISC PLAYER ASSY

main86270-37010iXZU404,414,424,434..RHD200110-200610

9015950343

main90159-50343

9155480614

main91554-80614

8 parts on this diagram · 3 diagrams in section
