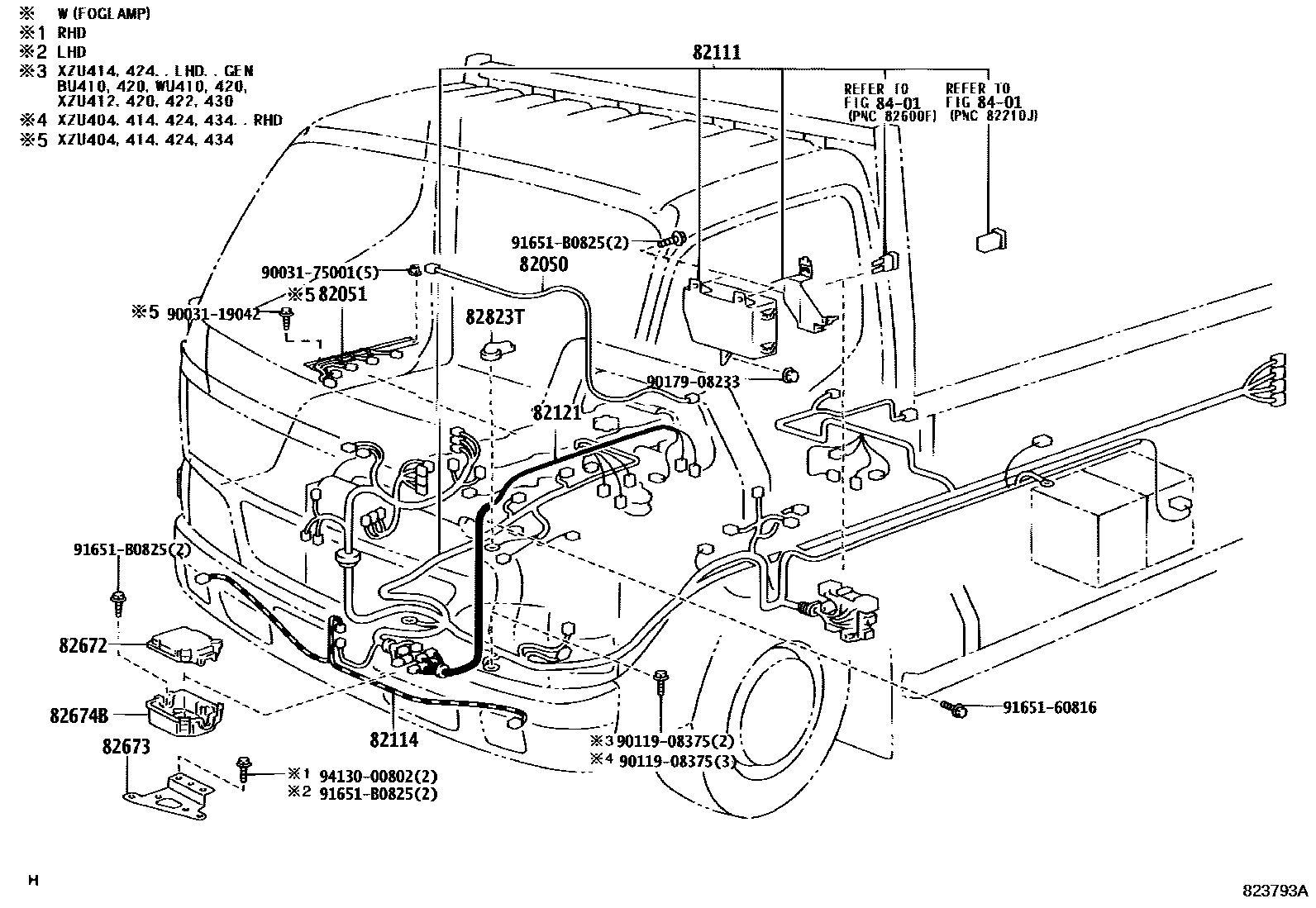

WIRING & CLAMP

0001 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1COWL 0009 1COWL 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1BODY 0019 1BODY 0020 1BODY 0021 1CLAMP & BRACKET 0024 1CLAMP & BRACKET 0027 1CLAMP & BRACKET 0028 1CLAMP & BRACKET 0029 1CLAMP & BRACKET 0030 1CONNECTOR

82050WIRE ASSY, ENGINE

main82050-37010iBU410,420200212-201106

82051HARNESS ASSY, FUEL CONTROL

main82051-37011iXZU404,414,424,434200110-200609

sub82051-37020

main82051-37020iXZU414,424..LHD200609-200610

sub82051-37021

82111WIRE, ENGINE ROOM MAIN

main82111-3VN50iXZU415,425,435200608-200708

main82111-3VW80iWU410,420..SA200802-200812

PART NUMBER LABEL=82111-3VW80

main82111-3VW90iWU410..RHD..GEN200610-200704

PART NUMBER LABEL=82111-3VW90

sub82111-3VW91

main82111-3VW91iWU410..RHD..GEN200705-200712

PART NUMBER LABEL=82111-3VW91

sub82111-3VW92

main82111-3VW92iWU410..RHD..GEN200801-201106

PART NUMBER LABEL=82111-3VW92

main82111-3VX20iXZU423,433..SA200802-200812

PART NUMBER LABEL=82111-3VX20

main82111-3VY20iWU410..LHD200610-200712

PART NUMBER LABEL=82111-3VY20

sub82111-3VY21

main82111-3VY21iWU410..LHD200801-201106

PART NUMBER LABEL=82111-3VY21

main82111-3VY30iWU412,422..5F200610-200712

PART NUMBER LABEL=82111-3VY30

sub82111-3VY31

main82111-3VY31iWU412,422..5F200801-201106

PART NUMBER LABEL=82111-3VY31

main82111-3VY40iWU412,422..85T200610-200712

PART NUMBER LABEL=82111-3VY40

sub82111-3VY41

main82111-3VY41iWU412,422..85T200801-201106

PART NUMBER LABEL=82111-3VY41

main82111-3VY50iXZU413,423200610-200712

PART NUMBER LABEL=82111-3VY50

sub82111-3VY51

main82111-3VY51iXZU413,423..5F200801-200901

PART NUMBER LABEL=82111-3VY51

sub82111-3VY52

main82111-3VY52iXZU413,423..5F200902-201106

PART NUMBER LABEL=82111-3VY52

main82111-3VY61iXZU413,423..6F..GEN200802-200901

PART NUMBER LABEL=82111-3VY61

sub82111-3VY62

main82111-3VY62iXZU413,423..6F200902-201106

PART NUMBER LABEL=82111-3VY62

main82111-3VY70iXZU417,427200701-200901

PART NUMBER LABEL=82111-3VY70

main82111-3VY80iXZU415,425,435200708-200905

PART NUMBER LABEL=82111-3VY80

main82111-3VY90iWU410..LHD200610-200712

PART NUMBER LABEL=82111-3VY90

sub82111-3VY91

main82111-3VY91iWU410..LHD200801-201106

PART NUMBER LABEL=82111-3VY91

main82115-37680iXZU404,414,424..GEN200110-200212

main82115-37710iXZU414,424,434..EUR200110-200405

main82115-37711iXZU414,424,434..EUR200405-200608

main82115-37F10iXZU419,429,439200908-201208

PART NUMBER LABEL=82115-37F10

main82115-3V570iBU410,420200411-200701

main82115-3V580iXZU420,430200304-200802

main82115-3V590iXZU414,424..LHD..GEN200212-200610

main82115-3V600iXZU404,414,424,434..ARL200212-200610

W(ABS)

main82115-3V610iXZU404,414..55T..ARL200212-200610

W/O(ABS)

main82115-3V620iXZU412,422..LHD..DSL200212-200610

main82115-3V630iXZU412,422..RHD..DSL200212-200610

main82115-3V640iWU410..LHD200212-200610

main82115-3V650iWU410,420..SA200304-200802

main82115-3V660iWU410..RHD..GEN200212-200610

main82115-3V670iXZU412,422..LHD..5F..TD200212-200802

main82115-3V680iXZU412..RHD..TD200212-200610

main82115-3V740iXZU404,414,424..RHD..GEN200212-200610

82114WIRE, ENGINE ROOM, NO.4

main82114-37030iBU410,420200110-201106

main82114-37030iXZU413,423..5F;WU41#,422..GCC,GEN200610-201106

W(FOG LAMP)

main82114-37100iWU412..75T..GEN;WU422,XZU417,419,427,429,439..EUR,GEN,TAIW200610-201208

82121WIRE, ENGINE

main82121-37B30iXZU415,425,435200608-200708

sub82121-37L60

main82121-3V520iXZU414,424,434..EUR200110-200610

main82139-37110iBU410,420200411-200701

main82139-37120iXZU420,430200304-200802

main82139-37131iXZU412,422200212-200303

sub82139-37132

main82139-37132iXZU412,422..5F200303-200802

main82139-37150iWU410..GCC,GEN200212-200802

82672COVER, JUNKTION BLOCK

main82672-37030iBU410,420200110-200802

82673BRACKET, JUNCTION BLOCK

main82673-37030iXZU420,430200110-200802

main82673-37060iXZU414,424,434..EUR200110-200701

82674BCOVER, JUNCTION BLOCK, LOWER

main82674-37010iXZU414,424,434..EUR200110-200802

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

8401

9003119042

main90031-19042

9003175001

main90031-75001

9011908375

main90119-08375

9017908233

main90179-08233

9165160816

main91651-60816

91651B0825

main91651-B0825

9413000802

main94130-00802

17 parts on this diagram · 19 diagrams in section
