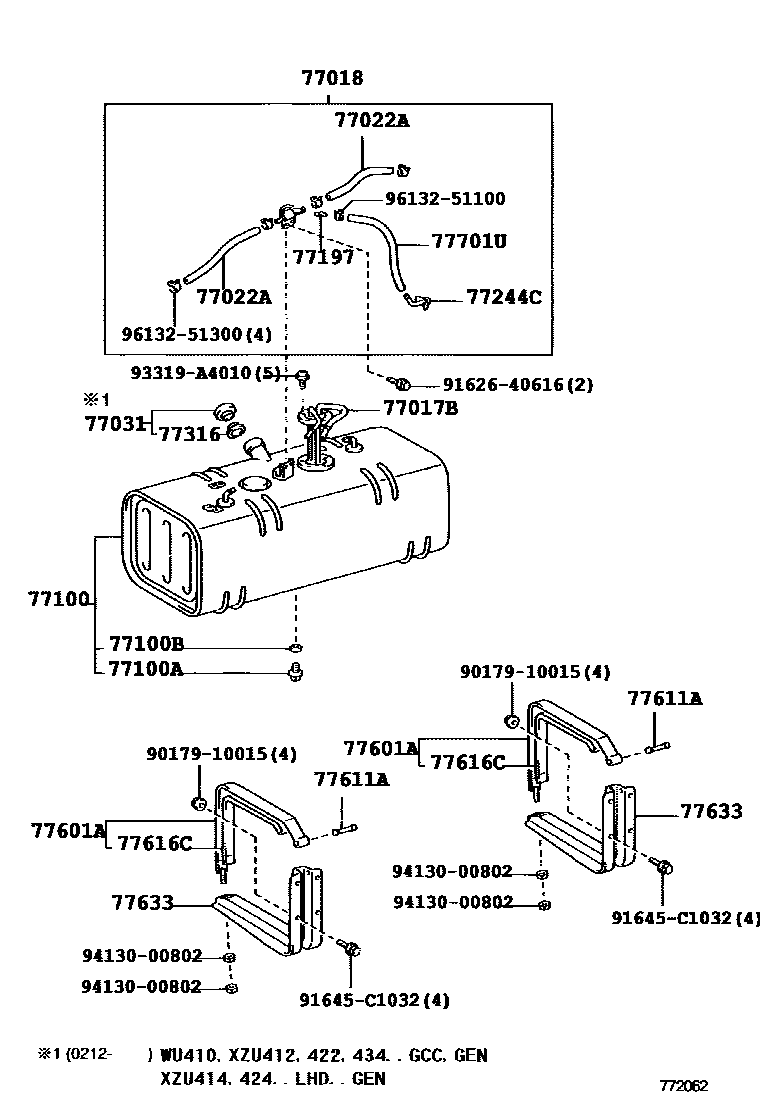

FUEL TANK & TUBE

0001 1TANK 0003 1TANK W(SUB TANK) 0005 1TANK W(SUB TANK) 0007 1TANK 0008 1TANK 0009 1TANK 0010 1TANK(100L) 0011 1SUB TANK(70L) 0012 1TANK 0013 1TANK(100L) COLOMBIA OR VENEZU0014 1SUB TANK(70L) COLOMBIA OR VEN0015 1TUBE 0018 1TUBE 0019 1TUBE 0020 1TUBE 0021 1TUBE 0022 1TUBE

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37010iXZU414,424,434..EUR¥2,910200110-201208

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-37050iWU410,XZU404,412,414,422,424..5F..(GCC,GEN)¥2,460200301-201106

main77018-37170iXZU404,414,424,434..ARL¥4,270200301-200610

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08030iXZU413,423..5F..75T¥660200301-201106

L=300(*H,L=220)

77031CAP ASSY, FUEL TANK

main77310-60100iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)¥1,530200212-200802

main77310-60100iWU41#,422,XZU413,423..GCC,GEN¥1,530200610-201106

W(SUB TANK)

77100TANK ASSY, FUEL

main77001-37220iWU410,XZU404,41#,42#..GCC,GEN¥54,400200110-200301

sub77001-37221¥54,400

main77001-37221iBU410,420,WU410,420,XZU404,41#,42#,430..GCC,GEN,SA,TAIW¥54,400200301-200601

sub77001-37222¥54,400

main77001-37222iXZU413,423..5F..75T¥54,400200903-201106

COLOMBIA SPEC OR VENEZUELA SPEC

main77001-37222iBU410,420,WU410,420,XZU404,412,414,420,422,424,430..GCC,GEN,SA,TAIW¥54,400200602-200802

main77001-37400iXZU414,424,434..ARL¥56,400200212-200301

sub77001-37401

main77001-37401iXZU414,424,434..ARL200301-200412

sub77001-37402

main77001-37402iXZU414,424,434..ARL200501-200610

main77001-37411iXZU414,415,424,425,434,435..EUR¥54,500200110-201003

main77001-37430iXZU404..ARL¥44,100200212-200301

sub77001-37431¥44,100

main77001-37431iXZU404..ARL¥44,100200301-200412

sub77001-37432

main77001-37432iXZU404..ARL200501-200610

main77001-37500iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433¥39,600200610-201106

main77001-37600iXZU419,429,439201003-201208

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU415,425,435¥110200110-201208

main90105-12116iWU41#,422,XZU413,423,427..GCC,GEN,TAIW¥110200610-201106

W(SUB TANK)

77100BGASKET(FOR FUEL TANK)

main90430-12245iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL¥160200110-201208

main90430-12245iWU41#,422,XZU413,423,427..GCC,GEN,TAIW¥160200610-201106

W(SUB TANK)

main90430-37001iXZU404,414,424,434..ARL¥1,130200301-200610

77197ORIFICE, FUEL VAPOR

main90977-02001iWU410,XZU404,412,414,422,424..5F..(GCC,GEN)¥300200301-201106

77244CJOINT, FUEL TUBE, NO.2

main77244-37010iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)¥90200301-201106

77316GASKET, FUEL TANK CAP

main77316-12050iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)¥310200212-200802

main77316-12050iWU41#,422,XZU413,423..GCC,GEN¥310200610-201106

W(SUB TANK)

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36140iXZU404,414,424,434..ARL¥2,390200212-200610

EXHAUST TAIL PIPE=VERTICAL TYPE

sub77601-37030¥2,810

main77601-36140iXZU414,424,434..EUR¥2,390200110-200611

sub77601-37030¥2,810

main77601-36150iXZU404,414,424,434..ARL¥2,920200212-200610

EXHAUST TAIL PIPE=REAR

sub77601-37040¥4,890

main77601-37030iBU410,420¥2,810200612-200802

main77601-37030iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL¥2,810200610-201106

W(SUB TANK)

main77601-37040iXZU419,429,439¥4,890200908-201104

sub77601-37041¥3,070

main77601-37041iXZU419,429,439¥3,070201105-201208

77611BAND, FUEL TANK

main77616-36030iXZU424..LHD..GEN;XZU412..5F..(75T,85T);XZU412,414..LHD..(55T,65T);WU410,XZU422..5F..(GCC,GEN)¥350200212-200802

77611APIN (FOR FUEL TANK BAND)

main77629-36010iXZU414,424,434..EUR¥140200110-201208

main77629-36010iWU41#,422,XZU413,423,427..GCC,GEN,TAIW¥140200610-201106

W(SUB TANK)

77616CSEAT, FUEL TANK BAND

main77616-36030iXZU414,424,434..EUR¥350200110-201208

main77616-36030iWU41#,422,XZU413,423,427..GCC,GEN,TAIW¥350200610-201106

W(SUB TANK)

77633STAY, FUEL TANK

main77501-37080iXZU404,414,424,434..ARL¥7,200200212-200610

EXHAUST TAIL PIPE=REAR

main77501-37080iXZU419,429,439¥7,200200908-201208

main77633-37100iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL¥4,420200610-201106

W(SUB TANK)

main77633-37100iXZU414,424,434..EUR¥4,420200110-200802

main77633-37100iXZU404,414,424,434..ARL¥4,420200212-200610

EXHAUST TAIL PIPE=VERTICAL TYPE

77701UHOSE, FUEL (FOR CHECK VALVE)

main95333-06010iXZU404,414,424,434..ARL¥300200301-200610

*H,L=70

main95333-06040iXZU412,422..6F;WU410,420,XZU420,430..SA¥730200301-201106

*H,L=400

main95333-06040iXZU404,414,424,434..ARL¥730200301-200610

*H,L=320

9017910015

main90179-10015¥100

9162640616

main91626-40616¥110

91645C1032

main91645-C1032¥200

93319A4010

main93319-A4010¥60

9413000802

main94130-00802¥90

9613251100

main96132-51100¥120

9613251300

main96132-51300¥120

23 parts on this diagram · 17 diagrams in section
