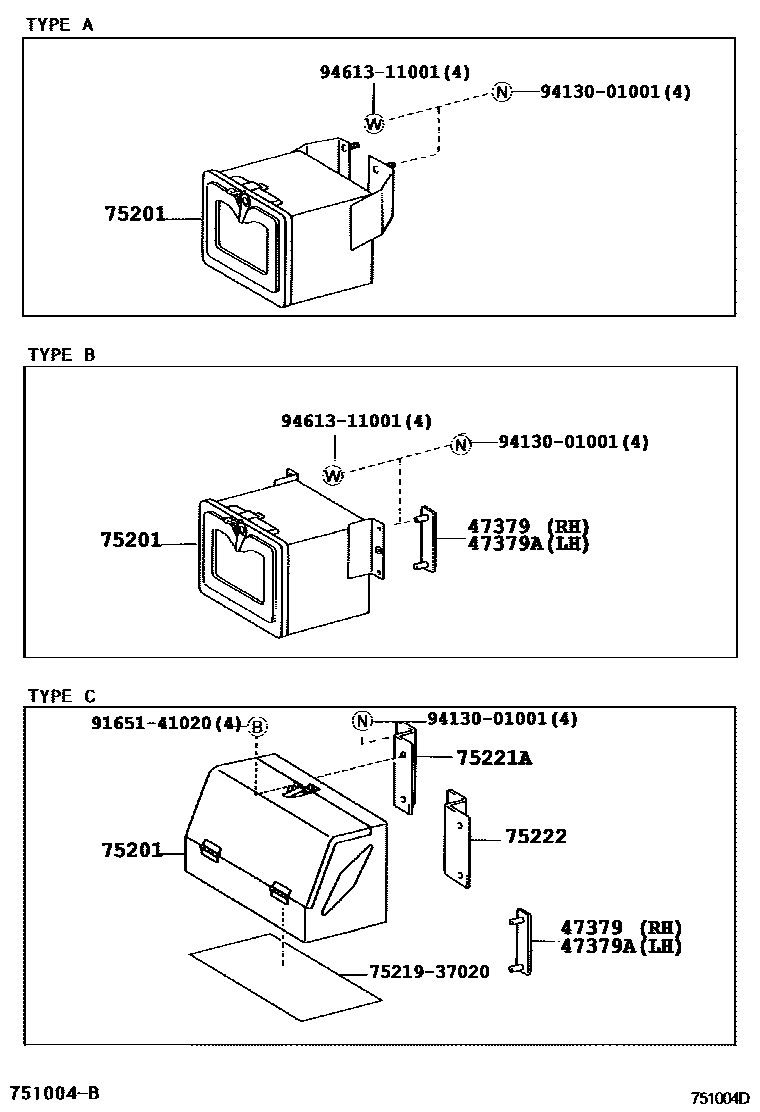

TOOL BOX & LICENSE PLATE BRACKET

0001 1TOOL BOX 0002 1JACK 0003 1LICENSE PLATE BRACKET 0005 1LICENSE PLATE BRACKET 0006 1LICENSE PLATE BRACKET

47379SPACER, BRAKE TUBE, NO.1

main47379-37080iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200110-201106

47379ASPACER, BRAKE TUBE, NO.2

main47379-37080iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

75201BOX SUB-ASSY, TOOL W/STAY

main75201-37020iXZU422..6F;WU420,XZU420,430200110-200802

TYPE C:REFER ILLUST.

main75210-37130iXZU414..ARL,GEN;WU410,XZU412..5F..(GCC,GEN)200110-201106

TYPE B:REFER ILLUST.

sub75210-37230

main75210-37151iXZU404200110-200610

TYPE A:REFER ILLUST.

main75210-37200iWU410..65T;WU412,XZU413;WU410..75T..GEN200610-201106

TYPE B:REFER ILLUST.

75221ABRACKET, TOOL BOX, RH

main75221-37190iXZU422..5F;XZU424,434..ARL,GEN200110-200802

75222BRACKET, TOOL BOX, LH

main75221-37200iXZU422..5F;XZU424,434..ARL,GEN200110-200802

7521937020TRIM, CRADLE JACK

main75219-37020

9165141020

main91651-41020

9413001001

main94130-01001

9461311001

main94613-11001

9 parts on this diagram · 5 diagrams in section
