ARMREST & VISOR

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74231-37012-B0iXZU414,424..RHD;XZU414,424..EUR;BU410,420,XZU404,415,425,434,435200110-200708

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74231-37020-B0iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200610-201106

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74231-37032iXZU404,414,424..RHD..GEN200110-200610

TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-37020-B0iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200610-201106

TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74232-37010-B0iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,419,425,427,429,435,439..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200610-201208

TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#

main74232-37020iXZU404,414,424..RHD..GEN200110-200610

TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN

74257SPRING, ARMREST, NO.1

main74257-37010×2iXZU415,425,435200110-200708

74310VISOR ASSY, RH

main74310-37081-B0iWU410,420,XZU404,41#,42#,43#..EUR,GCC,GEN,SA200110-200405

MD.CHARCOAL,TRIM1#

main74310-37290iXZU404,414,424,434..ARL200212-200405

main74310-37300-B0iXZU404,414,424,434..ARL200212-200405

MD.CHARCOAL,TRIM1#

main74310-37420-B0iBU410,420,WU410,420,XZU404,41#,42#,43#..EUR,GCC,GEN,SA,TAIW200406-200504

MD.CHARCOAL,TRIM1#

sub74310-37580

main74310-37480-B0iXZU404,414,424,434..ARL200406-200610

MD.CHARCOAL,TRIM1#

sub74310-37481

main74310-37490-B0iXZU404,414,424,434..ARL200406-200610

W(SRS AIR BAG),MD.CHARCOAL,TRIM1#

main74310-37570-B0iXZU414,424,434..EUR200505-200608

MD.CHARCOAL,TRIM1#

74320VISOR ASSY, LH

main74320-37041-B0iWU410,420,XZU404,41#,42#,43#..EUR,GCC,GEN,SA200110-200405

MD.CHARCOAL,TRIM1#

main74320-37130-B0iXZU404,414,424,434..ARL200212-200405

MD.CHARCOAL,TRIM1#

main74320-37180-B0iBU410,420,WU410,420,XZU404,41#,42#,43#..EUR,GCC,GEN,SA,TAIW200406-200504

MD.CHARCOAL,TRIM1#

main74320-37210-B0iXZU404,414,424,434..ARL200406-200610

MD.CHARCOAL,TRIM1#

sub74320-37211

main74320-37260-B0iBU410,420200505-200701

MD.CHARCOAL,TRIM1#

74348HOLDER, VISOR

main74348-22020-B9iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL200610-201106

DRIVER SIDE & PASSENGER SIDE,MD.CHARCOAL,TRIM1#

74351ACOVER, VISOR, NO.1

main74351-35010-B2iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-200610

MD.CHARCOAL,TRIM1#

sub74351-37100

74352COVER, VISOR, NO.2

main74352-35010-B2iXZU414,424..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN)200212-200610

MD.CHARCOAL,TRIM1#

sub74352-37100

74603BCLIP (FOR ASSIST GRIP)

main90467-05101-B2×2iXZU412,422..6F;WU410,420,XZU420,430..SA200302-200802

MD.CHARCOAL,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74611-89101-B2iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74610BGRIP ASSY, ASSIST, NO.2 RH

main74610-95404-B1iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

main74610-95405-B1iWU41#,422,XZU41#,42#,439200911-201208

MD.CHARCOAL,TRIM1#

74610KGRIP ASSY, ASSIST, NO.2 LH

main74610-95404-B1iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

main74610-95405-B1iWU41#,422,XZU41#,42#,439200911-201208

MD.CHARCOAL,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-95J00-B1×4iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-37020-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74631CHOOK, COAT

main74348-22020-B9×2iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74640CGRIP ASSY, DOOR ASSIST, LH

main74640-37010-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-37010-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74646COVER, DOOR ASSIST GRIP, LH

main74646-37010-B0iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

74811BHANDLE, DOOR PULL

main74811-95J04-B2×2iXZU414,424,434..EUR200110-200608

MD.CHARCOAL,TRIM1#

9015960243

main90159-60243

9015960515

main90159-60515

91651B0820

main91651-B0820

9353015020

main93530-15020

9354054012

main93540-54012

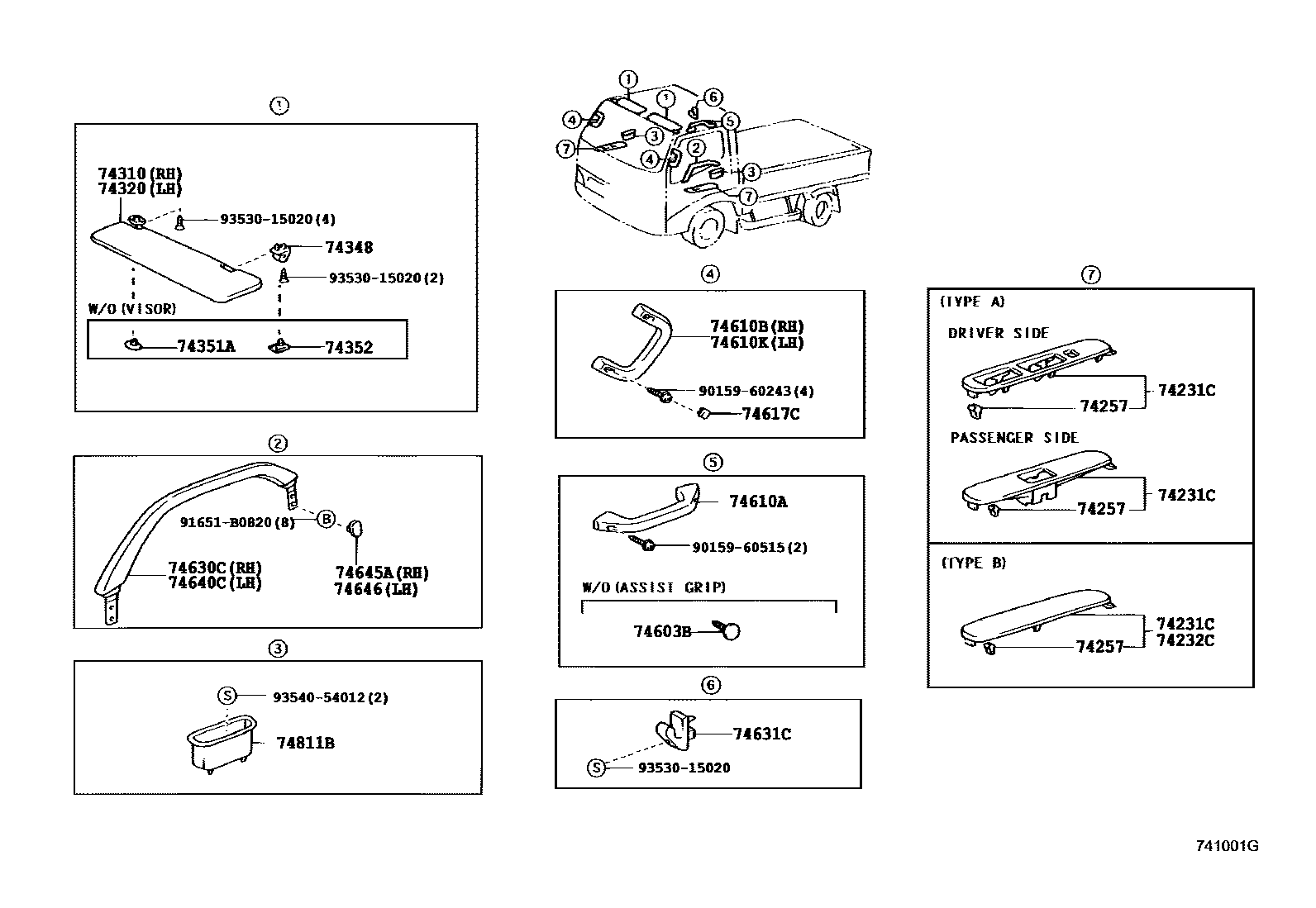

24 parts on this diagram · 1 diagram in section
