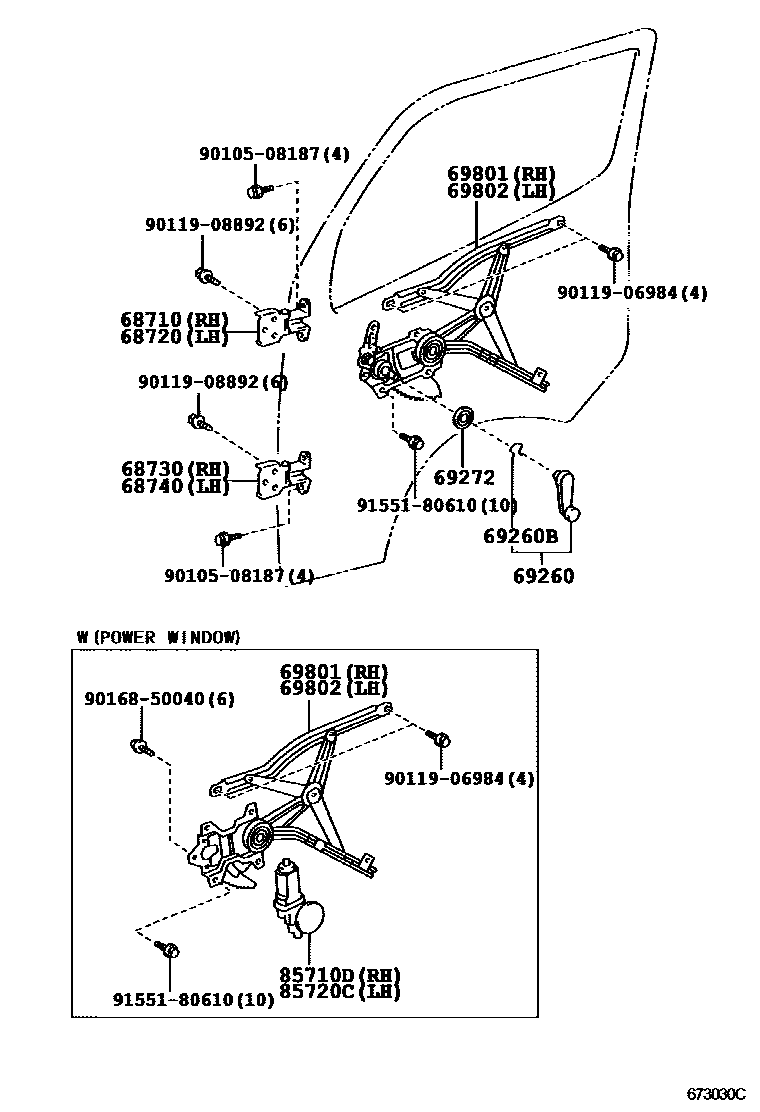

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXZU414,424,434..EUR200110-201208

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXZU414,424,434..EUR200110-201208

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iBU410,420200110-201208

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-89104-B3iXZU412,422..6F;WU410,420,XZU420,430..SA200212-201106

MD.CHARCOAL,TRIM1#

sub69260-89104

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423,433200212-201106

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37020iXZU404,414,424..ARL;XZU414,424..LHD..GEN;WU410,420,XZU412,420,422,430,434..ARL,GCC,GEN,SA200212-200609

sub69801-37050

main69801-37030iXZU414,424,434..RHD;BU410,420,XZU404,415,425,435200110-200609

W(POWER WINDOW)

sub69801-37060

main69801-37050iXZU412,422;WU410,420,XZU420,430..SA200610-200704

sub69801-37051

main69801-37051iXZU412,422;WU410,420,XZU420,430..SA200705-200905

sub69801-37052

main69801-37052iWU41#,422,XZU413,423200906-201106

main69801-37060iXZU415,425,435200610-200704

W(POWER WINDOW)

sub69801-37061

main69801-37061iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,425,427,435..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200705-200905

W(POWER WINDOW)

sub69801-37062

main69801-37062iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU419,429,439..EUR,GCC200906-201208

W(POWER WINDOW)

sub69801-37063

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37020iXZU404,414,424..ARL;XZU414,424..LHD..GEN;WU410,420,XZU412,420,422,430,434..ARL,GCC,GEN,SA200212-200609

sub69802-37050

main69802-37030iXZU414,424,434..EUR200110-200609

W(POWER WINDOW)

sub69802-37060

main69802-37050iXZU412,422;WU410,420,XZU420,430..SA200610-200704

sub69802-37051

main69802-37051iXZU412,422;WU410,420,XZU420,430..SA200705-200905

sub69802-37052

main69802-37052iWU41#,422,XZU413,423200906-201106

main69802-37060iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU417,427..GCC,TAIW200610-200704

W(POWER WINDOW)

sub69802-37061

main69802-37061iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,425,427,435..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200705-200905

W(POWER WINDOW)

sub69802-37062

main69802-37062iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU419,429,439..EUR,GCC200906-201208

W(POWER WINDOW)

sub69802-37063

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37040iXZU414,424,434..EUR200110-200708

main85710-37080iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,419,425,427,429,435,439..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200610-201208

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37050iXZU414,424,434..EUR200110-200708

main85720-37110iWU412..GCC..CBU;WU412..(75T,85T)..IV3;WU410,422,XZU415,417,419,425,427,429,435,439..(EUR,GCC,TAIW)..(DCRTJ,DCRTK,DSL)200610-201208

9010508187

main90105-08187

9011906984

main90119-06984

9011908892

main90119-08892

9016850040

main90168-50040

9155180610

main91551-80610

16 parts on this diagram · 1 diagram in section
