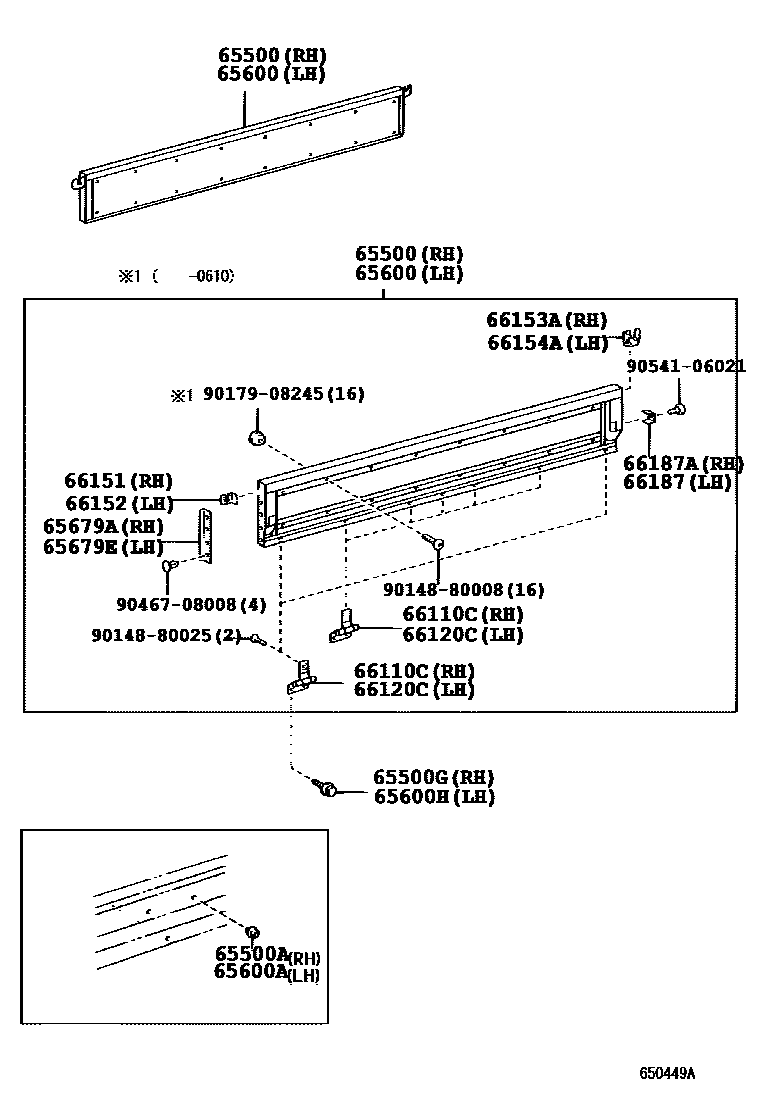

REAR BODY SIDE PANEL

0001 1 0002 1

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-3V560iWU422..GCC..CBU200212-201106

UAE SPEC

main65500-3V630iXZU412..85T..CBU200212-201106

main65500-3V640iXZU422..CBU200212-201106

main65500-3V880iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

65500APLUG, HOLE(FOR REAR BODY SIDE PANEL)

main90950-01753iWU41#..5F..CBU200212-201106

65500GBOLT, W/WASHER(FOR SIDE GATE, RH)

main90119-08464iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-3V560iWU422..GCC..CBU200212-201106

UAE SPEC

main65600-3V630iXZU412..85T..CBU200212-201106

main65600-3V640iXZU422..CBU200212-201106

main65600-3V880iWU41#..5F..CBU200212-201106

65600APLUG, HOLE(FOR SIDE GATE, LH)

main90950-01753iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

65600HBOLT, W/WASHER(FOR SIDE GATE, LH)

main90119-08464iWU41#..5F..CBU200212-201106

65679ASEAL, SIDE GATE

main65679-37010iWU410,XZU412,422..CBU200212-201106

sub65679-37011

65679ESEAL, SIDE GATE

main65679-37010iWU41#,422..CBU200212-201106

sub65679-37011

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main65010-37040iWU410,XZU412..(55T,65T,75T)..CBU200212-201012

CENTER

main65010-37041iWU41#..5F..CBU201101-201106

CENTER

sub65010-37042

main65050-37080iWU410,XZU412..(55T,65T,75T)..CBU200212-200807

FRONT & REAR

main65535-37080iWU422..CBU200212-201106

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main65010-37040iWU41#..5F..CBU200212-201012

CENTER

main65010-37041iWU41#..5F..CBU201101-201106

CENTER

sub65010-37042

main65050-37080iWU410,XZU412..(55T,65T,75T)..CBU200212-200807

FRONT & REAR

main65535-37080iXZU412..85T..CBU200212-201106

66151LATCH, SIDE GATE FEMALE, RH

main66151-37010iWU422..CBU;WU412..85T..CBU200212-201106

main66151-92703iWU41#..5F..CBU200212-201106

66152LATCH, SIDE GATE FEMALE, LH

main66152-37020iXZU422..CBU;XZU412..85T..CBU200212-201106

main66152-92703iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

66153ALATCH, TAIL GATE FEMALE, RH

main66153-37010iWU410,XZU412,422..CBU200212-201106

66154ALATCH, TAIL GATE FEMALE, LH

main66154-37010iWU410,XZU412,422..CBU200212-201106

66187HANDLE, SIDE GATE LATCH, CENTER NO.2

main66187-37010iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

sub66187-37011

66187ALATCH, SIDE GATE SUPPORT

main66187-37010iWU410,XZU412..(55T,65T,75T)..CBU200212-201106

sub66187-37011

main66187-37020iXZU422..CBU;XZU412..85T..CBU200212-201106

RH

main66187-37030iXZU422..CBU;XZU412..85T..CBU200212-200610

LH

main66187-37030iWU422..CBU;WU412..85T..CBU200610-201106

9014880008

main90148-80008

9014880025

main90148-80025

9017908245

main90179-08245

9046708008

main90467-08008

9054106021

main90541-06021

21 parts on this diagram · 2 diagrams in section
