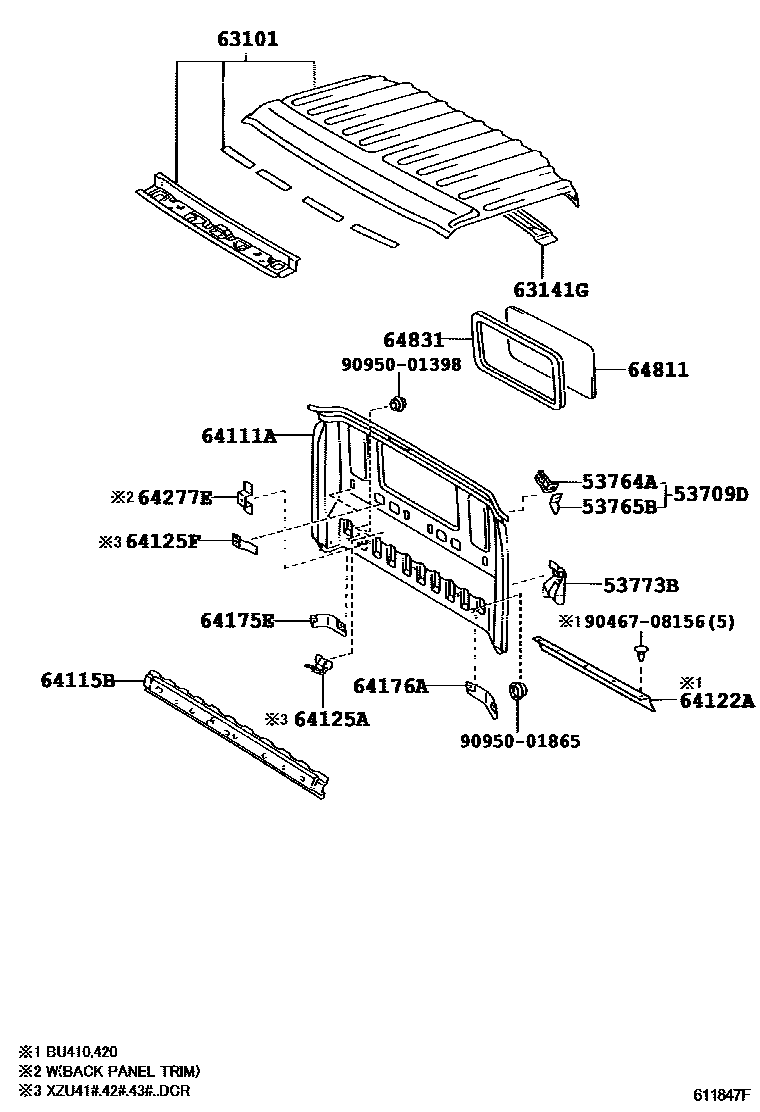

ROOF PANEL & BACK PANEL

53709DBRACKET SUB-ASSY, AIR CLEANER INLET SEAL

main53709-37070iXZU414,424,434..EUR200110-201208

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37060iXZU414,424,434..EUR200110-201208

53765BBRACKET, AIR CLEANER INLET, NO.2

main53765-37070iXZU414,424,434..EUR200110-201208

53773BBRACKET, AIR CLEANER INLET, NO.2

main53773-37100iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

63101PANEL SUB-ASSY, ROOF

main63101-37310iXZU414,424,434..EUR200110-201208

sub63111-37180

sub63132-37260

sub63151-37040

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37120iXZU414,424,434..EUR200110-201208

64111APANEL, BACK

main64111-37530iXZU404,414,424,434200110-200212

sub64111-37531

main64111-37531iXZU414,424,434..EUR200212-201208

64115BREINFORCEMENT, BACK PANEL

main64115-37130iXZU404,414,424,434200110-200212

sub64115-37131

main64115-37131iBU410,420,WU410,420,XZU404,41#,42#,43#200212-200603

sub64115-37132

main64115-37132iXZU414,424,434..EUR200604-201208

64122ABAFFLE, DUST REAR BODY

main64122-37170iBU410,420200411-200701

64125ABRACKET, UPPER BACK PANEL, RH

main64125-37030iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

64125FBRACKET, UPPER BACK PANEL

main64125-37040iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

64175EPATCH, REAR MOUNTING, RH

main64175-37050iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

64176APATCH, REAR MOUNTING, LH

main64176-37030iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200212-201106

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010iXZU414,424,434..EUR200110-201208

64811GLASS, BACK WINDOW

main64811-37150iXZU414,424,434..EUR200110-201208

*TEM,T=3.5,GREEN

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37060iXZU414,424,434..EUR200110-201208

9046708156

main90467-08156

9095001398

main90950-01398

9095001865

main90950-01865

19 parts on this diagram · 1 diagram in section
