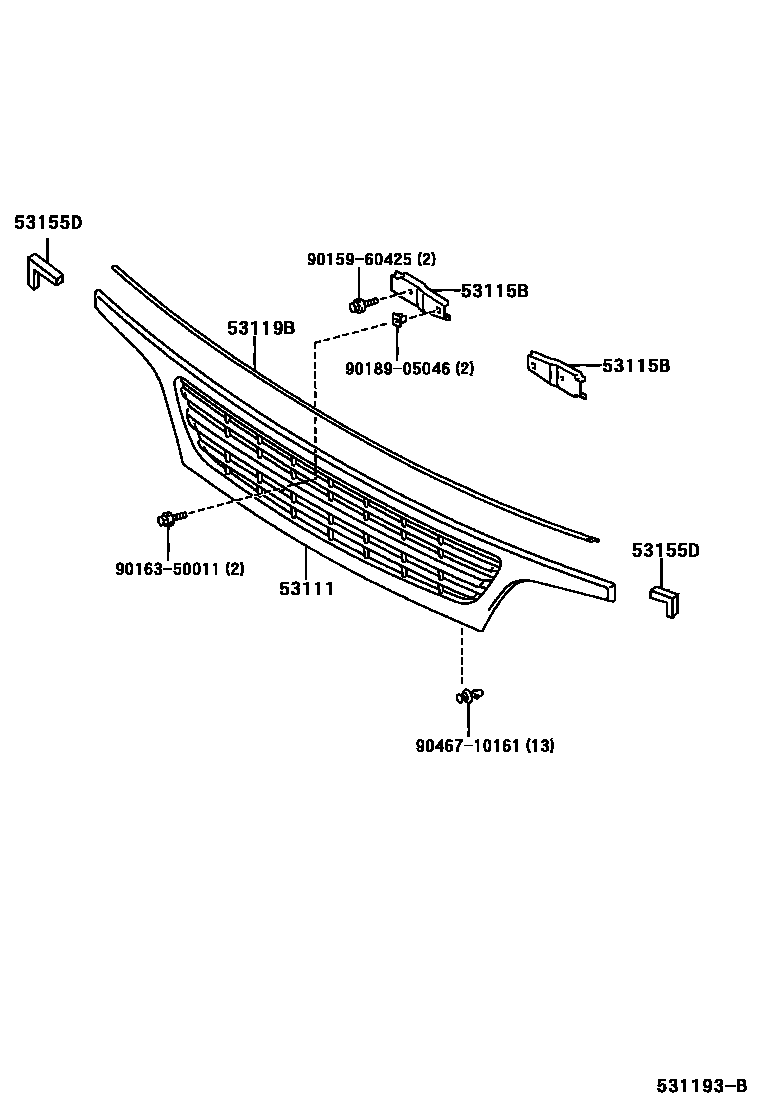

RADIATOR GRILLE

0001 1 0003 1 0006 1

53111GRILLE, RADIATOR

main53111-37241-A0iXZU404,414,424..GEN200110-200311

WHITE,058

main53111-37470iXZU414,424..LHD..GEN;XZU404,414,424,434..ARL;WU410,XZU412,422..5F..(GCC,GEN)200212-200802

UNPAINTED

main53111-37480-A0iXZU404,414,424,434..RHD200212-200610

WHITE,058

main53111-37730iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

UNPAINTED

53115BBRACKET, RADIATOR GRILLE

main53115-37050iXZU414,424,434..EUR200110-200802

main53115-37070iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

53119BPROTECTOR, RADIATOR GRILLE

main53119-37040iXZU404,414,424..GEN200110-200311

main53119-37050iXZU414,424,434..EUR200212-200802

main53119-37110-C0iWU410..65T..SA;WU420,XZU415,417,419,423,425,427,429,433,435,439..(EUR,SA,TAIW)..(DCRTK,DSL)200701-201208

BLACK,058

main53119-37110-C0iWU41#,422,XZU413,423..GCC,GEN200610-201106

BLACK,058 ,199 ,766 ,8P0

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-37010iXZU404,414,424..GEN200110-200311

9015960425

main90159-60425

9016350011

main90163-50011

9018905046

main90189-05046

9046710161

main90467-10161

8 parts on this diagram · 3 diagrams in section
