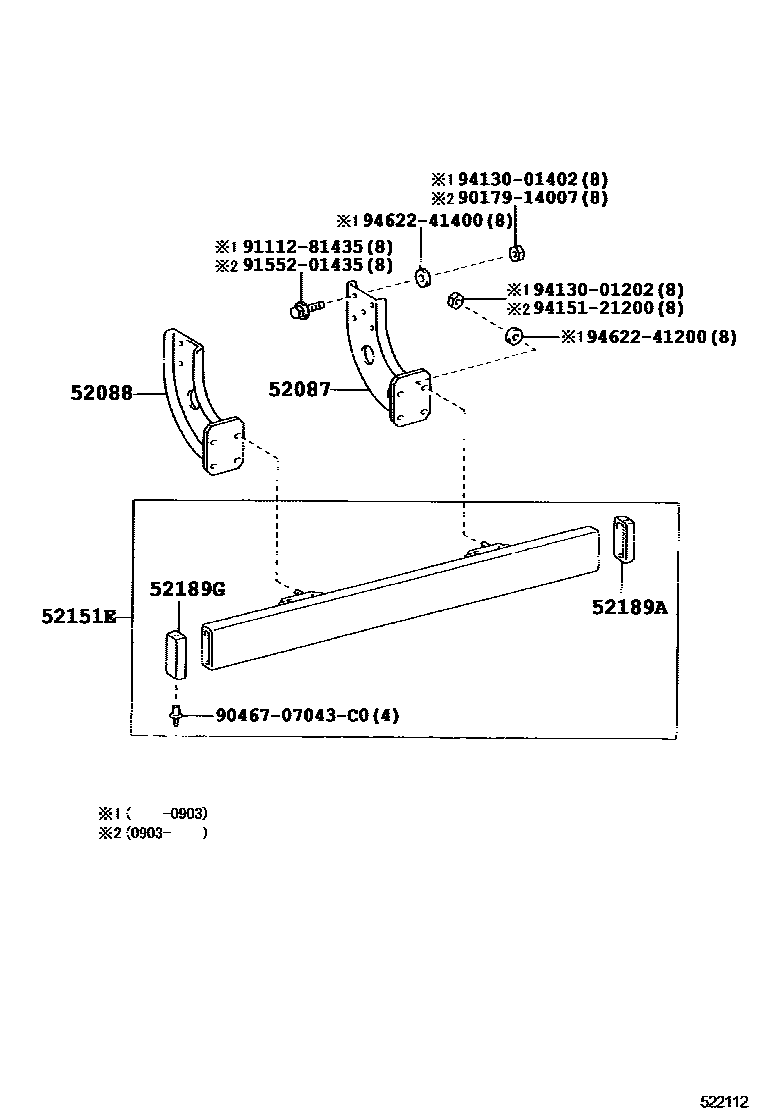

REAR BUMPER & BUMPER STAY

0001 1 0004 1 0005 1

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-37090iXZU412..RHD..TD¥10,500200212-201106

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-37060iXZU412..RHD..TD¥10,500200212-201106

52151EBAR, REAR BUMPER

main52105-37120iXZU412..RHD..TD¥105,000200212-200405

sub52105-37140¥101,000

main52105-37140iXZU412..RHD..TD¥101,000200406-200610

main52105-37150iXZU412,422..GCC¥101,000200508-201106

main52105-37330iWU410..GCC¥46,500200610-201106

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-37030iXZU412..RHD..TD¥1,410200212-200405

main52189-37040iXZU412..RHD..TD¥1,780200406-201106

main52189-37050iWU410..GCC¥1,410200610-201106

52189GPROTECTOR, REAR BUMPER ARM EDGE, LH

main52189-37030iXZU412..RHD..TD¥1,410200212-200405

main52189-37040iXZU412..RHD..TD¥1,780200406-201106

main52189-37050iWU410..GCC¥1,410200610-201106

9017914007

main90179-14007¥260

9046707043C0

main90467-07043C0

9111281435

main91112-81435¥190

9155201435

main91552-01435¥240

9413001202

main94130-01202¥100

9413001402

main94130-01402¥110

9415121200

main94151-21200¥140

9462241200

main94622-41200¥80

9462241400

main94622-41400¥160

14 parts on this diagram · 3 diagrams in section
