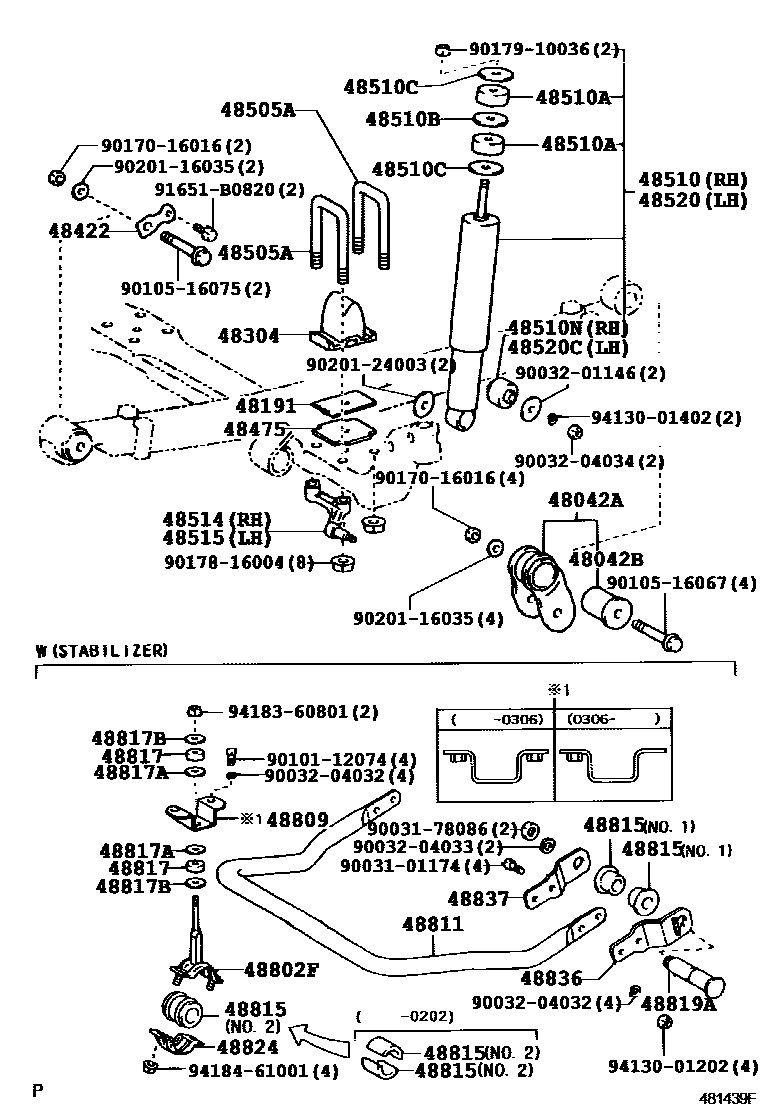

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0006 12-LEAF 48110-3V310 0008 12-LEAF,W(STABILIZER) 48110-3V0009 12-LEAF,48110-37570 0010 12-LEAF,W(STABILIZER) 48110-370011 13-LEAF 48110-37632 0012 13-LEAF,W(STABILIZER) 48110-370013 15-LEAF 48110-3V620,3V630 0015 15-LEAF 48110-3V740 0017 16-LEAF 48110-3V640,3V760 0021 16-LEAF,W(STABILIZER) 48110-3V0023 16-LEAF,W(STABILIZER) 48110-3V0025 17-LEAF 48110-3V660 0028 17-LEAF,W(STABILIZER)48110-3V70032 18-LEAF,W(STABILIZER) 48110-3V0035 14-LEAF 48110-37D20 0036 14-LEAF,W(STABILIZER) 48110-37

48042ASHACKLE SUB-ASSY, FRONT SPRING, NO.2

main48042-37020iXZU404,414..55T..ARL200110-200610

48042BBUSH, FRONT SPRING NO.2 SHACKLE

main90389-16026iXZU404,414,424..RHD..55T200110-200610

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-37070iWU410,420,XZU41#,42#,43#..65T,75T,85T200110-200610

main48191-37090iXZU404,414..55T..ARL200110-200707

main48192-36020iWU410..GCC;XZU413..55T200707-201106

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-37050iWU410..GCC;XZU413..55T200110-201106

main48304-37080iBU410,420200110-201208

48422SUPPORT, FRONT SPRING PIN

main48422-37010iXZU404,414..55T..ARL200212-200610

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iXZU404,412,414,424..55T200212-201106

main48475-37060iWU412,422;XZU413,423..5F..75T;WU410,XZU417,427..GEN,TAIW200610-201106

HEAVY DUTY SUSPENSION

main48475-37060iXZU414,424,434..EUR200110-201208

48505ABOLT, U(FOR FRONT SPRING)

main90117-16065iWU410..75T..GEN;WU410,420,XZU433..(65T,85T)..(GEN,SA);WU412,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(65T,75T,85T)..(DCRTJ,DCRTK)200110-201208

L=150

main90117-16073iWU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)200212-201106

L=160

main90117-16075iWU410,420..65T..SA200212-201106

L=170

main90117-16080iXZU415,419,425,429,435,439200110-201208

L=130

main90117-16082iWU420,XZU423..75T;WU41#,422,XZU413..(55T,65T,75T)..(GCC,GEN)200212-201106

L=140

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80095iXZU414,420,424,43#;WU410,420,XZU404,412,422..5F200110-200408

MARK 48511-37160

sub48511-80115

main48511-80115iBU410,420,WU410,420,XZU404,41#,42#,43#200408-200604

MARK 48511-37161

sub48511-89215

main48511-89215iXZU414,424,434..EUR200604-201208

MARK 48511-37260

sub48511-80182

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01031iXZU414,424,434..EUR200110-201208

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02017iXZU414,424,434..EUR200110-201208

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-03018iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90385-19011iXZU414,424,434..EUR200110-201208

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-37020iXZU414,424,434..EUR200110-201208

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-37030iXZU414,424,434..EUR200110-201208

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80095iXZU414,420,424,43#;WU410,420,XZU404,412,422..5F200110-200408

MARK 48511-37160

sub48511-80115

main48511-80115iBU410,420,WU410,420,XZU404,41#,42#,43#200408-200604

MARK 48511-37161

sub48511-89215

main48511-89215iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200604-201208

MARK 48511-37260

sub48511-80182

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90385-19011iXZU414,424,434..EUR200110-201208

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-37040iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

sub48802-37041

48809BRACKET SUB-ASSY, STABILIZER

main48809-37020iWU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA200110-200306

main48809-37021iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,419,423,429,433,439200306-201208

48811BAR, STABILIZER, FRONT

main48811-37070iWU410..75T..SA;XZU412,420,422,430..6F200110-201208

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-37020iXZU404,414,424..GEN200110-200202

NO.2

main48815-37030iWU410..75T..SA;XZU412,420,422,430..6F200110-201208

NO.1

main48815-37040iWU410,420,XZU404,41#,42#,43#..ARL,GCC,GEN,SA200202-200604

NO.2

sub48815-37080

main48815-37080iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,419,423,429,433,439200605-201208

NO.2

48817CUSHION, FRONT STABILIZER

main48817-36011iWU420;WU410..65T..SA200110-201208

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02167iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

48819ABOLT, FRONT STABILIZER

main48819-37010iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

48824BRACKET, STABILIZER, FRONT

main48824-37060iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

sub48824-37061

48836BRACKET, FRONT STABILIZER END, RH

main48836-37050iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

48837BRACKET, FRONT STABILIZER END, LH

main48837-37030iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

9003101174

main90031-01174

9003178086

main90031-78086

9003201146

main90032-01146

9003204032

main90032-04032

9003204033

main90032-04033

9003204034

main90032-04034

9010112074

main90101-12074

9010516067

main90105-16067

9010516075

main90105-16075

9017016016

main90170-16016

9017816004

main90178-16004

9017910036

main90179-10036

9020116035

main90201-16035

9020124003

main90201-24003

91651B0820

main91651-B0820

9413001202

main94130-01202

9413001402

main94130-01402

9418360801

main94183-60801

9418461001

main94184-61001

46 parts on this diagram · 18 diagrams in section
