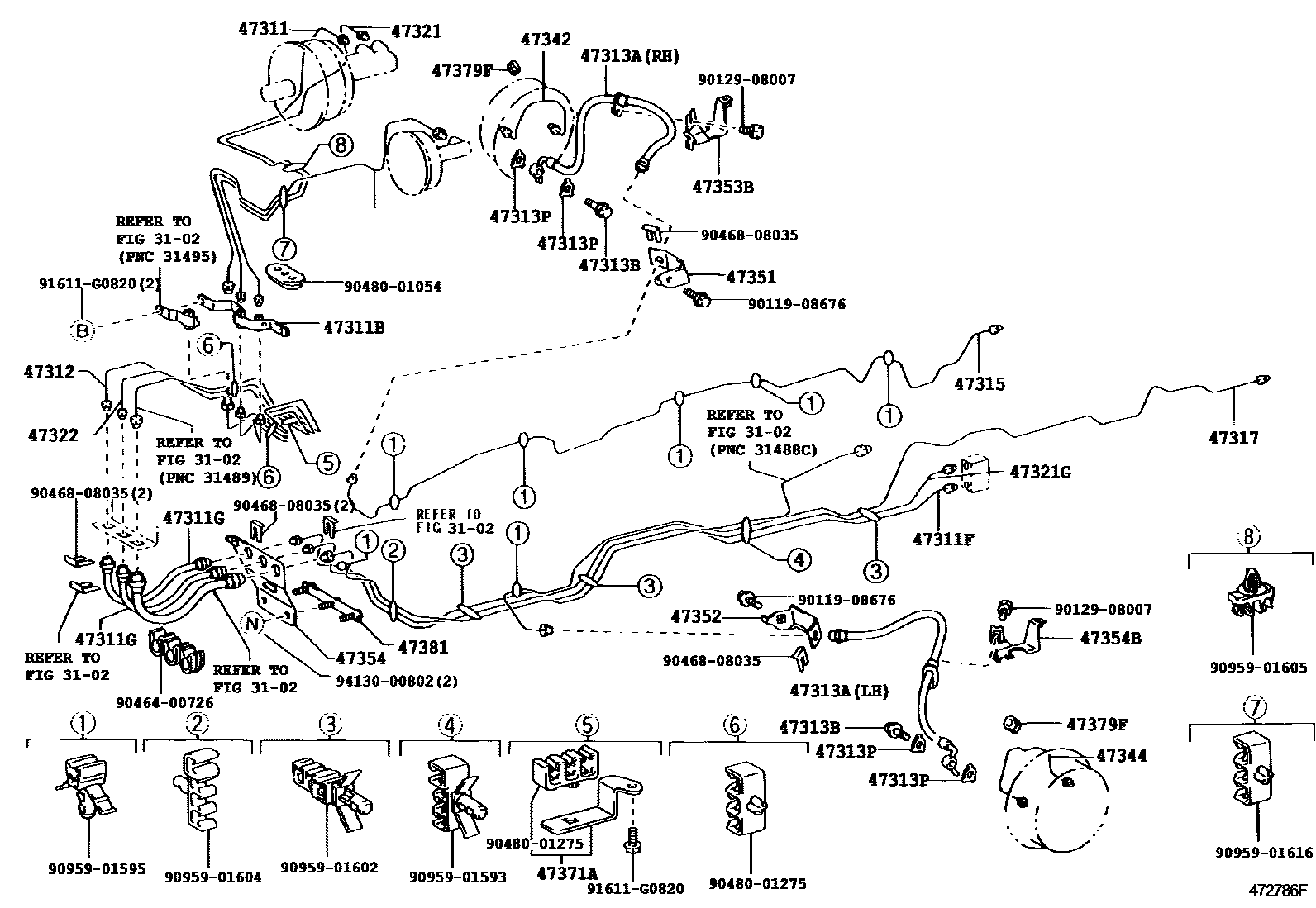

BRAKE TUBE & CLAMP

0001 1W(ABS) & W/O(LSPV) 0003 1W/O(ABS) & W(LSPV) 0005 1W/O(ABS & LSPV) 0007 1W(ABS) & W/O(LSPV) 0010 1W/O(ABS) & W(LSPV) 0013 1W/O(ABS & LSPV) 0016 1W(ABS) & W/O(LSPV) 0017 1W/O(ABS) & W(LSPV) 0018 1W/O(ABS & LSPV) 0019 1W/O(ABS) & W(LSPV) 0020 1W/O(ABS & LSPV) 0021 1W(ABS) & W/O(LSPV) 0022 1W(ABS) & W/O(LSPV) 0023 1W(ABS) & W/O(LSPV) 0027 1W/O(ABS) & W(LSPV) 0031 1W/O(ABS & LSPV) 0035 1W(ABS) & W/O(LSPV) 0036 1W/O(ABS) & W(LSPV) 0037 1W/O(ABS & LSPV) 0038 1W/O(ABS) & W(LSPV) 0039 1W(ABS) & W/O(LSPV) 0040 1W(ABS) & W/O(LSPV) 0041 1W(ABS) & W/O(LSPV) 0045 1W(ABS) & W/O(LSPV) 0047 1W/O(ABS) & W(LSPV) 0048 1W(LSPV)

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-37160iWU410,420,XZU404,41#,42#,43#..RHD200110-200306

sub47311-37161

main47311-37161iWU410,420,XZU404,41#,42#,43#..RHD200306-200603

sub47311-37162

main47311-37162iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200604-201106

main47311-37171iXZU412,422..6F200110-201208

main47311-37400iXZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN200212-200610

W(LSPV)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37020iBU410,420200110-201208

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37271iXZU404,414,424,434..RHD200110-200802

main47311-37350iXZU414,424,434..EUR200110-200608

main47311-37410iWU410,XZU412,414,422,424..LHD..5F200212-200802

main47311-37430iWU410..65T..SA;WU420,XZU415,423,425,433,435..EUR,SA200608-200804

sub47311-37431

main47311-37500iWU41#,422,XZU413,417,423,427..GCC,GEN,TAIW200610-201106

main47311-37540iWU410,420,XZU415,419,423,425,429,43#..EUR,SA200805-201208

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02A79iXZU415,425,435200110-201208

47312TUBE, FRONT BRAKE, NO.2

main47312-37270iWU420;WU410..65T..SA200110-200802

main47312-37270iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

NO.1

main47312-37430iXZU412,422..6F200110-200802

main47312-37520iXZU415,425,435200608-200804

NO.2

sub47312-37521

main47312-37730iXZU415,425,435200608-201208

NO.1

main47312-37890iWU410,420,XZU415,419,423,425,429,43#..EUR,SA200805-201208

NO.2

47313TUBE, FRONT BRAKE, NO.3

main47313-37390iXZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN200212-200610

main47313-37420iXZU412,422..6F200212-200802

main47313-37490iWU41#,422,XZU413,417,423,427..GCC,GEN,TAIW200610-201106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A73iWU410..GCC;XZU413..55T201002-201106

W(FRONT DISC BRAKE),RH

main90947-02A73iXZU404,414,424..RHD..55T200110-200610

RH

main90947-02A74iWU410..GCC;XZU413..55T201002-201106

W(FRONT DISC BRAKE),LH

main90947-02A74iXZU404,414,424..RHD..55T200110-200610

LH

main90947-02A77iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,423,433..65T,75T,85T200110-201106

RH

main90947-02B28iXZU414,424,434..EUR200110-201106

LH

main90947-02D41iWU410..GCC;XZU413..55T200212-201106

RH

main90947-02D42iXZU412..55T;XZU414..LHD..GEN200212-201106

LH

main90947-02D86iXZU415,425,435200608-201208

RH

main90947-02D87iXZU415,425,435200608-201208

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iXZU414,424,434..EUR200110-201208

47315TUBE, FRONT BRAKE, NO.5

main47315-37170iXZU404,414,424..RHD..55T200110-200610

main47315-37240iXZU414,424,434..RHD..(65T,75T,85T)200110-200802

main47315-37510iXZU412..RHD..55T;XZU404,414..55T..ARL200212-200610

W/O(ABS)

main47315-37520iWU410,XZU412,422..RHD..(65T,75T)..GEN200212-200610

W/O(ABS)

main47315-37530iXZU412,422..6F200212-200802

main47315-37540iXZU412,414..LHD..55T200212-200610

main47315-37590iWU410..GCC;XZU413..55T200610-201106

main47315-37600iWU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW)200610-201106

47317TUBE, FRONT BRAKE, NO.7

main47317-37200iXZU404200110-200610

W(ABS)

main47317-37210iXZU414..RHD..55T200110-200610

W(ABS)

main47317-37300iXZU414,424,434..EUR200110-200802

main47317-37490iXZU412..RHD..55T200212-200610

W/O(ABS)

main47317-37500iWU410,XZU412,422..RHD..(65T,75T)..GEN200212-200610

main47317-37510iWU410,XZU412,422,424..LHD..5F..(65T,75T,85T)200212-200802

main47317-37520iXZU412,414..LHD..55T200212-200610

main47317-37540iWU410..GCC;XZU413..55T200610-201106

main47317-37550iWU412,422;WU410,XZU413,417,423,427..(65T,75T,85T)..(GEN,TAIW)200610-201106

47321TUBE, REAR BRAKE, NO.1

main47321-37160iWU410,XZU420,430..(75T,85T)..SA200110-201106

main47321-37172iWU410,XZU412,414,422,424..LHD..5F200110-201208

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37270iWU410,XZU420,430..(75T,85T)..SA200304-200802

main47321-37270iXZU404,414,424,434..RHD200110-200610

W(ABS)

main47321-37340iWU410,XZU412,414,422,424..LHD..5F200110-200802

main47321-37390iXZU404,414..55T..ARL;WU410,XZU412,422..RHD..GEN200212-200610

W/O(ABS)

main47321-37410iWU410..65T..SA;WU420,XZU415,423,425,433,435..EUR,SA200608-200804

main47321-37470iWU41#,422,XZU413,417,423,427..GCC,GEN,TAIW200610-201106

main47321-37510iWU410,420,XZU415,419,423,425,429,43#..EUR,SA200805-201208

47322TUBE, REAR BRAKE, NO.2

main47322-37370iWU410,420,XZU404,41#,42#,43#..RHD200110-200603

sub47322-37371

main47322-37371iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200604-200802

main47322-37371iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

NO.1

main47322-37510iWU410,XZU412,414,422,424..LHD..5F200110-200802

main47322-37560iXZU415,425,435200608-200708

NO.2

main47322-37760iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200608-201208

NO.1

main47322-37780iWU410..65T..SA;WU420,XZU415,423,425,433,435..EUR,SA200708-200804

NO.2

main47322-37A10iWU410,420,XZU415,419,423,425,429,43#..EUR,SA200805-201208

NO.2

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-37040iWU410..GCC;XZU413..55T200212-201106

main47342-37061iWU420;WU410..65T..SA200110-201106

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-37061iWU410..75T..SA;XZU412,420,422,430..6F200110-201106

main47344-37020iWU410..GCC;XZU413..55T200212-201106

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37210iXZU404,412,414,424..55T200110-201106

main47351-37300iWU410..75T..GEN;WU410..65T..(GEN,SA);WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..(DCRTJ,DCRTK,DSL)200110-201208

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-37130iWU410..GCC;XZU413..55T200110-201106

main47352-37180iBU410,420200110-201208

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-37250iWU420;WU410..65T..SA200110-201208

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-37200iWU410..GCC;XZU413..55T200110-201106

main47353-37210iBU410,420200110-201106

main47353-37261iXZU415,417,419,425,427,429,435,439..DCRTK200608-201208

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-37130iXZU404,414,424..GEN200110-200212

sub47354-37131

main47354-37131iWU410..75T..SA;XZU412,420,422,430..6F200206-201208

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37141iXZU415,425,435200608-201208

main47354-37200iXZU404,412,414,424..55T200110-201106

main47354-37210iXZU414,424,434..(65T,75T,85T)..(ARL,GEN);WU410,XZU412,422..5F..(65T,75T,85T)..(GCC,GEN)200110-201106

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37020iXZU412,422..6F200110-201208

main47371-37030iWU410,XZU420,430..(75T,85T)..SA200110-201106

47379FDAMPER, TUBE(FOR FRONT)

main47379-37010iWU420;WU410..65T..SA200110-201106

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-37230iXZU404,414,424..GEN200110-200212

main47381-37280iXZU414,424,434..EUR200110-201008

sub47381-37281

main47381-37281iWU41#,422,XZU41#,42#,439201009-201208

9011908676

main90119-08676

9012908007

main90129-08007

9046400726

main90464-00726

9046808035

main90468-08035

9048001054

main90480-01054

9048001275

main90480-01275

9095901593

main90959-01593

9095901595

main90959-01595

9095901602

main90959-01602

9095901604

main90959-01604

9095901605

main90959-01605

9095901616

main90959-01616

91611G0820

main91611-G0820

9413000802

main94130-00802

40 parts on this diagram · 26 diagrams in section
