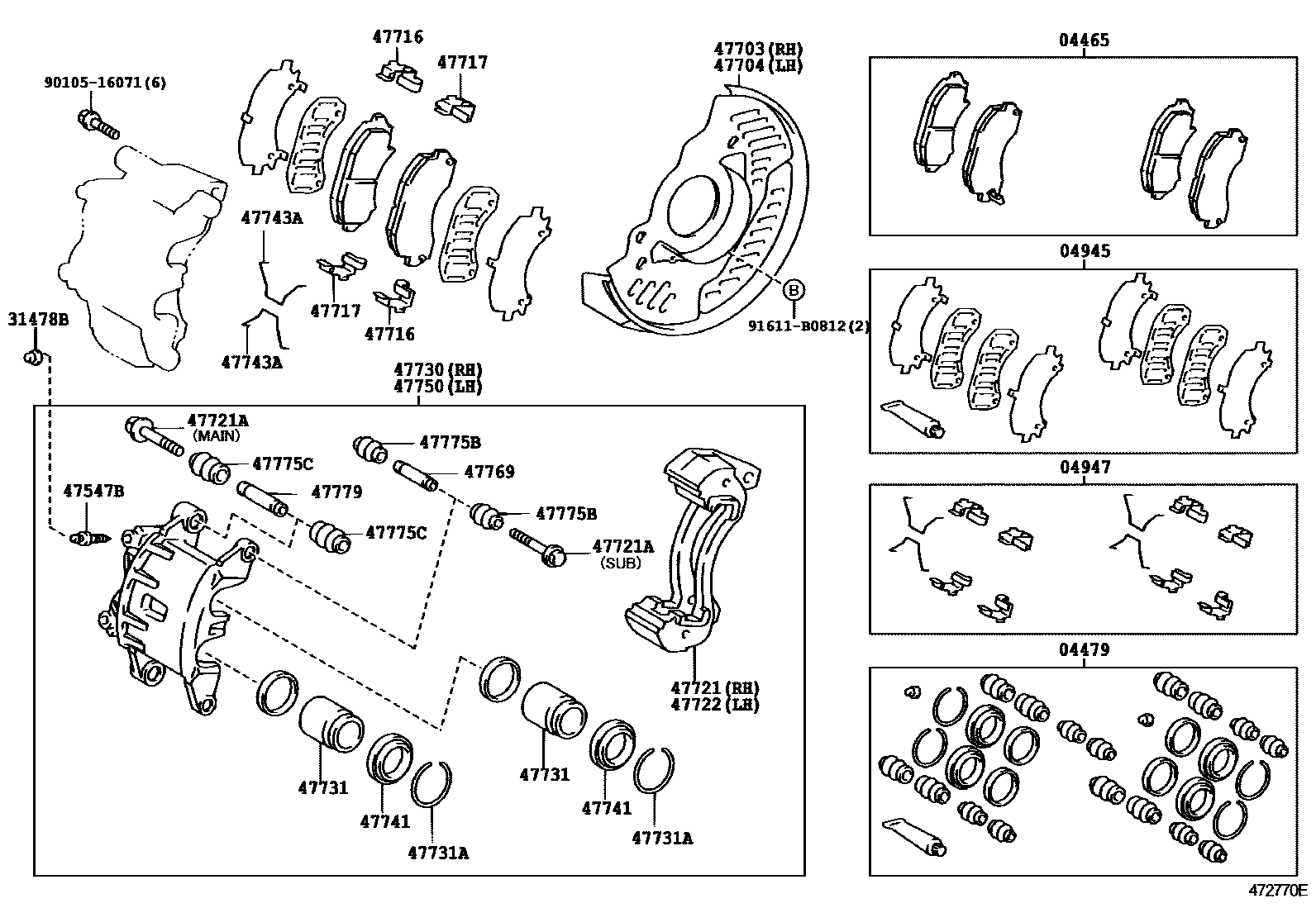

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-37030iXZU404,414,424..RHD..55T200110-200610

MARK AISIN T536

main04465-37090iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

MARK NS174

sub04465-37091

main04465-37150iWU410..GCC;XZU413..55T201002-201106

MARK AK NS174A

sub04465-37151

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-37020iXZU415,417,425,427,435..DCRTK200701-200901

main04478-37230iXZU415,419,425,429,43#200901-201208

main04479-37010iWU410..GCC;XZU413..55T201002-201106

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-37030iXZU404,414,424..RHD..55T200110-200610

main04945-37050iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

sub04945-37051

04947FITTING KIT, DISC BRAKE, FRONT

main04947-36020iXZU404,414,424..RHD..55T200110-200610

main04948-37010iXZU415,417,425,427,435..DCRTK200701-200812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iWU410..GCC;XZU413..55T201002-201106

main31478-37030×2iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12010×2iXZU404,414,424..RHD..55T200110-200610

main47847-37030×2iXZU415,425,435200608-200708

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-37030iXZU404,414,424..RHD..55T200110-200610

sub47703-37031

main47781-37070iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-37030iWU410..GCC;XZU413..55T201002-201106

sub47704-37031

main47781-37070iXZU415,425,435200608-200708

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-36020×4iXZU404,414,424..RHD..55T200110-200610

main47716-37120×4iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-36020×4iWU410..GCC;XZU413..55T201002-201106

main47717-37120×4iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-37030iWU410..GCC;XZU413..55T201002-201106

main47721-37120iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-37120×4iXZU415,417,419,425,427,429,435,439..DCRTK200701-201208

main90119-08B87×4iXZU404,414,424..RHD..55T200110-200610

*8-1.25PX59-27,SUB PIN SIDE

main90119-12256×4iWU410..GCC;XZU413..55T201002-201106

*12-1.25PX75-30,MAIN PIN SIDE

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-37020iXZU404,414,424..RHD..55T200110-200610

main47722-37120iXZU415,425,435200608-200708

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-37030iXZU404,414,424..RHD..55T200110-200610

main47730-37120iXZU415,417,425,427,435..DCRTK200701-200901

main47730-37121iXZU415,419,425,429,43#200901-201208

sub47730-37122

47731PISTON, FRONT DISC BRAKE

main47731-37010×4iWU410..GCC;XZU413..55T201002-201106

sub47731-36020

main47731-37120×4iXZU415,425,435200608-200708

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001×4iXZU404,414,424..RHD..55T200110-200610

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-37010×4iXZU404,414,424..RHD..55T200110-200610

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-36020×4iXZU404,414,424..RHD..55T200110-200610

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-37030iXZU404,414,424..RHD..55T200110-200610

main47750-37120iXZU415,425,435200608-200708

main47750-37121iXZU415,419,425,429,43#200901-201208

sub47750-37122

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-36030×4iXZU404,414,424..RHD..55T200110-200610

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-37120×4iXZU415,425,435200608-200708

main47775-37121×4iXZU415,419,425,429,43#200901-201208

47775BBOOT, BUSH DUST, NO.1

main47775-36040×8iXZU404,414,424..RHD..55T200110-200610

47775CBOOT, BUSH DUST, NO.2

main47775-36050×8iXZU404,414,424..RHD..55T200110-200610

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-36010×4iXZU404,414,424..RHD..55T200110-200610

9010516071

main90105-16071

91611B0812

main91611-B0812

26 parts on this diagram · 2 diagrams in section
