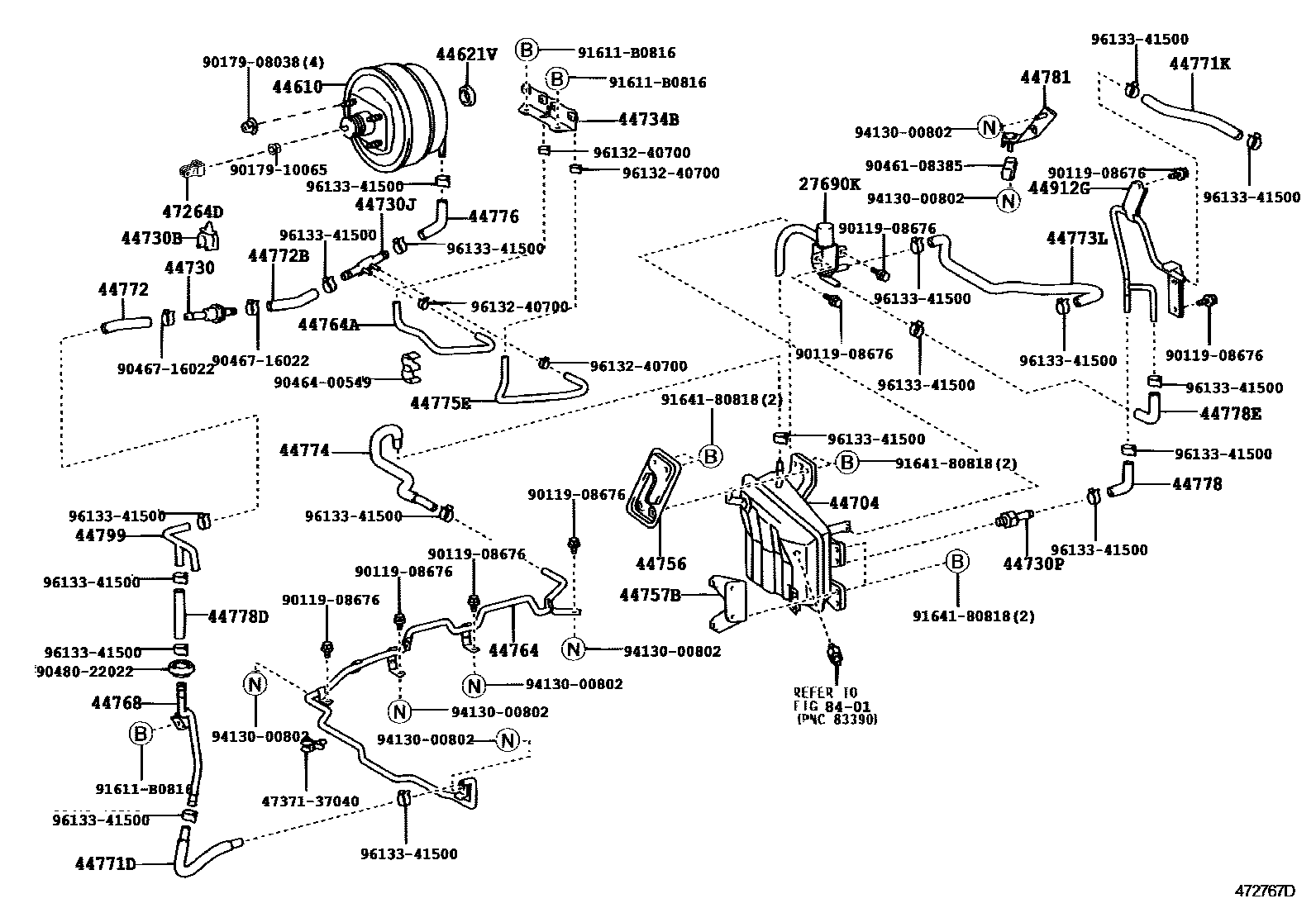

BRAKE BOOSTER & VACUUM TUBE

0001 1W(ABS & CLUTCH BOOSTER) 0002 1W/O(ABS & CLUTCH BOOSTER) 0003 1W/O(ABS & CLUTCH BOOSTER) 0004 1W/O(ABS & CLUTCH BOOSTER) 0005 1W/O(ABS & CLUTCH BOOSTER) 0006 1W(ABS & CLUTCH BOOSTER) 0008 1W/O(ABS) & W(CLUTCH BOOSTER) 0009 1W(ABS) & W/O(CLUTCH BOOSTER) 0011 1W(ABS) & W/O(CLUTCH BOOSTER) 0012 1W/O(ABS) & W(CLUTCH BOOSTER) 0013 1W/O(ABS) & W(CLUTCH BOOSTER) 0014 1W(ABS & CLUTCH BOOSTER) 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1W(PTO) 0022 1 0023 1W(PTO)

27690KSOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)

main27690-78021iS05C..XZU404,414,424,434¥14,000200110-200111

sub27690-78022¥13,600

main27690-78022iJ05C,S05C,W04D..WU410,420,XZU404,41#,42#,43#¥13,600200111-200307

sub27690-78023¥13,900

main27690-78023iS05C..XZU414,424,434..EUR¥13,900200307-200610

sub27690-78130¥11,300

main27690-78130i15BFTE..BU410,420¥11,300200610-201106

main27690-78140iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK¥10,400200610-201208

44610BOOSTER ASSY, BRAKE

main44610-37151iXZU404,414,424..RHD..55T¥73,000200110-200610

main44610-37161iXZU414,424,434..RHD..(65T,75T,85T)¥73,000200110-201208

main44610-37171iWU41#,422,XZU413,417,423,427..GCC,GEN,TAIW¥50,700200212-201106

main44610-37250iXZU404,414..55T..ARL¥73,000200212-200610

W/O(ABS)

44621VSEAL, BOOSTER BODY

main44621-36050iBU410,420¥320200212-201106

main44621-36070iWU410..65T..SA;WU420,XZU415,419,423,425,429,433,435,439..EUR,SA¥270200110-201208

main44621-36070iWU410..GCC;XZU413..55T¥270201002-201106

W/O(ABS)

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37070iBU410,420,WU410,420,XZU404,41#,42#,43#¥14,500200110-200607

sub44704-37071¥14,300

main44704-37071iXZU414,424,434;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)¥14,300200608-200802

sub44704-37162¥13,600

main44704-37240iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,423,425,427,433,435..DCRTJ,DCRTK,DSL¥15,200200610-200810

sub44704-37241¥15,200

main44704-37241iWU41#,42#,XZU41#,42#,43#¥15,200200811-201208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-35010iXZU404,414,424..GEN¥1,430200110-200901

44730BCLAMP, VACUUM HOSE

main44597-37020iBU410,420,WU410,420,XZU404,41#,42#,43#¥300200110-200503

sub44597-37021¥180

main44597-37021iXZU414,424,434..EUR¥180200504-201208

44730JWAY(FOR BOOSTER VACUUM)

main90414-10043iXZU414,424,434..EUR¥240200110-201208

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60050iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL¥1,360200110-201208

44734BBRACKET, BOOSTER SUPPORT

main44734-37011iXZU414,424,434..EUR¥620200110-201208

44756BRACKET, VACUUM RESERVOIR

main44756-37100iWU410..75T..SA;XZU412,420,422,430..6F¥1,870200110-201106

TYPE A:REFER TO ILLUSTRATION

main44756-37100iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK¥1,870200608-201208

main44756-37170iWU422..GCC;WU412..GCC..IV3¥1,950200212-201106

TYPE B:REFER TO ILLUSTRATION

44757BBRACKET, VACUUM TANK CLAMP, NO.2

main44757-37090iWU410,420,XZU404,41#,42#,43#¥2,940200110-200312

sub44757-37091¥2,950

main44757-37091iXZU414,424,434..EUR¥2,950200312-201208

44764TUBE, BOOSTER VACUUM

main44764-37470iXZU414,424,434..EUR¥5,800200110-200206

sub44764-37471¥5,800

main44764-37471iWU410,XZU41#,422,424,434..LHD¥5,800200206-200410

main44764-37472iBU410,420,WU410,XZU41#,422,424,434..LHD¥5,700200410-200512

sub44764-37473

main44764-37473iWU410,XZU412,414,422,424..LHD..5F200601-200802

main44764-37480iXZU404,414,424..GEN¥3,810200110-200206

sub44764-37481¥3,810

main44764-37481iWU420;WU410..65T..SA¥3,810200206-200802

main44764-37600iXZU415,425,435200608-200609

sub44764-37601

main44764-37601iXZU415,425,435200610-201208

main44764-37690iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA¥2,760200610-201106

44764AHOSE, BOOSTER VACUUM

main44776-37090iWU410,420,XZU420,430..SA¥430200110-200612

main44776-37200iXZU414,424,434..EUR¥430200110-201208

main44776-37240iWU420;WU410..65T..SA¥430200701-200802

main44776-37250iWU410,420,XZU423,433..SA¥430200802-200811

sub44776-37251¥430

44768TUBE, BOOSTER VACUUM

main44768-37150iWU410,420,XZU404,412,414,420,422,424,430,434..RHD¥1,390200110-200609

sub44768-37151¥1,390

main44768-37151iWU420;WU410..65T..SA¥1,390200610-200802

main44768-37160iXZU415,425,435¥1,390200110-200802

main44768-37170iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA¥1,390200610-201106

main44768-37190iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

44771HOSE, VACUUM TUBE CONNECTOR

main44771-37470iWU410..75T..SA¥1,990200212-200802

sub44771-37A70¥1,990

main44771-37540iXZU415,425,435¥620200608-201208

NO.1

main44771-37571iXZU415,425,435¥1,030200608-200609

NO.2

sub44771-37A30¥1,020

main44771-37790iWU412,42#;WU410..65T;WU410..75T..GEN200610-201106

NO.2

main44771-37A30iXZU415,425,435¥1,020200610-201208

NO.2

main44778-37060iWU412,42#;WU410..65T;WU410..75T..GEN¥550200610-201106

NO.1

44771DHOSE, VACUUM TUBE CONNECTOR

main44771-37230iXZU412,422..6F¥910200110-201208

44771KHOSE, VACUUM TUBE TO VACUUM PUMP

main44771-37200iBU410,420¥1,460200411-200701

main95446-09300iXZU414,424,434..EUR¥540200110-200802

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-37020iXZU404,414..55T..ARL¥430200110-200901

main44772-37100iWU41#,422,XZU413,423..LHD¥2,170200610-201106

main44772-37110iWU410..RHD..GEN¥2,070200610-201106

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-37060iXZU414,424,434..EUR¥430200110-200608

main44772-37100iWU410,XZU412,414,422,424..LHD..5F¥2,170200212-200802

main44772-37110iWU410,XZU412,422..RHD..GEN¥2,070200212-200610

44773LHOSE, SOLENOID TO EXHAUST RETARDER

main44773-37120iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)¥3,300200110-200802

main44773-37270iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,417,423,427,433¥3,300200610-201106

main44773-37310iXZU415,419,425,429,435,439200608-201208

44774HOSE, UNION TO CONNECTOR TUBE

main44774-37110iXZU414,424,434..EUR¥2,080200110-200609

main44774-37320iWU412,422..GEN;WU412..GCC..CBU;WU410,XZU413,419,423,429,439..EUR,GCC,GEN¥2,070200610-201106

main44774-37321iXZU419,429,439¥1,200201106-201208

44775EHOSE, WAY TO CONNECTOR

main44776-37100iWU410,420,XZU420,430..SA¥430200110-200612

main44776-37210iXZU415,425,435¥430200110-200803

sub44776-37211

main44776-37211iXZU415,419,425,429,435,439200804-201208

main44776-37250iWU410,XZU420,430..(75T,85T)..SA¥430200701-200802

sub44776-37251¥430

main44776-37260iWU410,420,XZU423,433..SA¥840200802-200812

44776HOSE, BRAKE BOOSTER

main44776-37050iXZU415,419,425,429,435,439¥430200110-201208

main44776-37230iXZU417,427¥940200411-200901

main44776-37230iXZU404,414..55T..ARL¥940200212-200610

W/O(ABS)

main44776-37240iWU410,420,XZU423,433..SA¥430200802-200812

main44776-37260iWU410,XZU420,430..(75T,85T)..SA¥840200701-200802

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37060iXZU414,424,434..EUR¥550200110-201208

44778DHOSE, VACUUM TUBE TO CONNECTOR TUBE

main44778-37130iWU410,420,XZU420,430..SA¥910200304-200612

main44778-37170iXZU414,424,434..EUR¥550200110-200811

sub44778-37171¥550

main44778-37171iXZU415,417,419,425,427,429,43#¥550200812-201208

main44778-37210iWU410,420,XZU423,433..SA¥1,140200701-200811

sub44778-37211¥1,140

44778EHOSE, CONNECTOR TUBE TO SOLENOID

main44778-37060iXZU414,424,434..EUR¥550200110-200802

main95446-09120iXZU413,423..5F¥320200610-201106

44781BRACKET, HOSE

main44781-37080iWU410,420,XZU404,41#,42#,43#¥740200110-200306

sub44781-37081¥680

main44781-37081iBU410,420¥680200306-200802

44799WAY, BRAKE VACUUM HOSE

main44799-37010iBU410,420¥450200110-201208

44912GTUBE, 3 WAY TO MAGNETIC VALVE

main44912-37430iXZU404,414,424..GEN¥2,870200110-200212

W(PTO)

sub44912-37431¥2,880

main44912-37431iXZU404,412,422..5F;XZU414,424,434..ARL,GEN¥2,880200212-200802

W(PTO)

main44912-37470iXZU412,420,422,430..6F¥2,680200110-200802

main44912-37A10iXZU415,425,435¥2,640200608-201208

main44912-37B40iWU412,42#;WU410..65T;WU410..75T..GEN200610-201106

main44912-37B50iWU410..65T;WU412,42#..5F;WU410..75T..GEN200610-201106

W(PTO)

main44912-3V040iWU420;WU410..65T..SA¥3,050200212-200802

W(PTO)

main44912-3V050iWU420;WU410..65T..SA¥2,730200212-200802

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-50010iXZU414,424,434..EUR¥520200212-201208

8401

4737137040BRACKET, CONNECTOR

main47371-37040¥320

9011908676

main90119-08676¥120

9017908038

main90179-08038¥130

9017910065

main90179-10065¥90

9046108385

main90461-08385¥360

9046400549

main90464-00549¥100

9046716022

main90467-16022¥300

9048022022

main90480-22022¥130

91611B0816

main91611-B0816¥140

9164180818

main91641-80818¥80

9413000802

main94130-00802¥90

9613240700

main96132-40700¥90

9613341500

main96133-41500¥140

44 parts on this diagram · 21 diagrams in section
