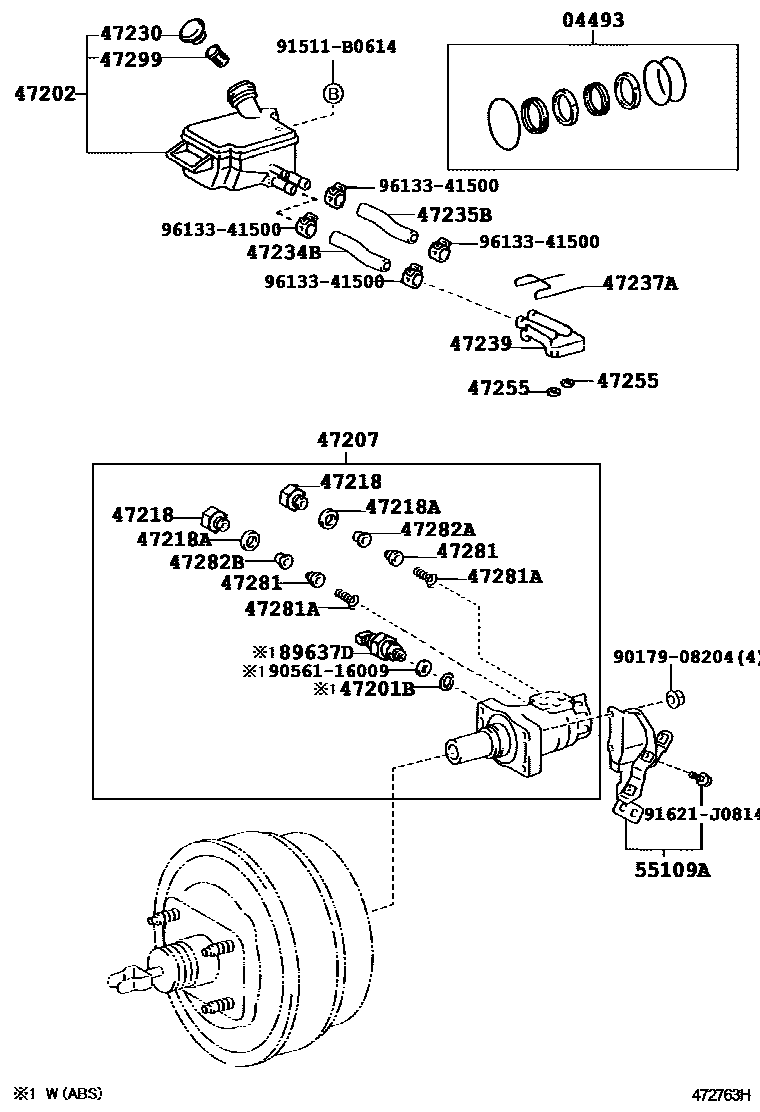

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36210iXZU412,422..6F200212-201106

main04493-36221iXZU414,424..EUR;XZU404,414,424..RHD;WU410,420,XZU420,43#..ARL,EUR,SA200110-200401

sub04493-36230

main04493-36230iXZU414,424,434..EUR200401-201208

main04493-36230iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90301-15014iWU410,XZU420,430..(75T,85T)..SA200110-201208

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-37051iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200110-201106

main47220-37071iXZU412,422..6F200110-201106

main47220-37100iXZU415,425,435200608-201012

sub47220-37101

main47220-37101iXZU419,429,439201101-201208

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-36021iXZU404,414,424..RHD..55T200110-200401

sub47207-37060

main47207-37011iXZU424..EUR;XZU414..65T,75T;XZU424..RHD..(75T,85T);WU410,420,XZU420,43#..ARL,EUR,SA200110-200401

sub47207-37012

main47207-37012iWU420;WU410..65T..SA200401-200812

main47207-37020iXZU412,422..6F200212-201106

main47207-37040iXZU404,414..55T..ARL200212-200401

W/O(ABS)

sub47207-37041

main47207-37041iXZU404,414..55T..ARL200401-201106

W/O(ABS)

main47207-37052iXZU415,425,435200608-201208

main47207-37060iXZU404,414,424..RHD..55T200401-200610

main47207-37081iXZU417,427200701-200901

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36091iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16013iXZU414,424,434..EUR200110-201208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-37020iWU410..75T..SA;XZU412,420,422,430..6F200110-201106

main47230-37080iXZU415,425,435200608-201107

sub47230-37081

main47230-37081iXZU419,429,439201107-201208

47234BTUBE, RESERVOIR, NO.1

main47234-37090iXZU415,425,435200608-201208

main47234-37100iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201106

main47234-37120iWU41#,422,XZU413,423..LHD200110-201106

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-37080iXZU415,417,419,425,427,429,435,439..DCRTK200608-201208

main47235-37090iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201106

main47235-37110iWU410,XZU412,414,422,424..LHD..5F200110-201106

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-36020iXZU414,424,434..EUR200110-201208

47239CONNECTOR, BRAKE MASTER CYLINDER RESERVOIR

main47239-37010iWU420;WU410..65T..SA200110-201106

main47239-37020iWU410,XZU412,414,422,424..LHD..5F200212-201208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iXZU414,424,434..EUR200110-201208

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-36010iXZU414,424,434..EUR200110-201106

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90905-01054iWU420;WU410..65T..SA200110-201106

47282ASEAT, OUTLET CHECK VALVE, NO.1

main47282-36010iBU410,420200110-201106

47282BSEAT, OUTLET CHECK VALVE, NO.2

main47282-36010iXZU414..LHD..GEN;WU410,XZU412,422..5F..(GCC,GEN);XZU414,424,434..(65T,75T,85T)..(ARL,GEN)200110-201106

main47282-36020iXZU404,414,424..RHD..55T200110-200610

main47282-36020iWU410..GCC;XZU413..55T201002-201106

W/O(ABS)

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-28010iWU410..75T..SA;XZU412,420,422,430..6F200110-201106

main47299-37080iXZU415,425,435200608-201208

55109ASUPPORT SUB-ASSY, BRAKE MASTER CYLINDER

main55109-37010iXZU414,424,434..EUR200110-200712

sub55109-37011

main55109-37011iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439200711-201208

89637DSENSOR, OIL PRESSURE

main89637-51010iWU410..65T..SA;WU420,XZU415,419,423,425,429,433,435,439..EUR,SA200110-201208

9017908204

main90179-08204

9056116009

main90561-16009

91511B0614

main91511-B0614

91621J0814

main91621-J0814

9613341500

main96133-41500

24 parts on this diagram · 2 diagrams in section
