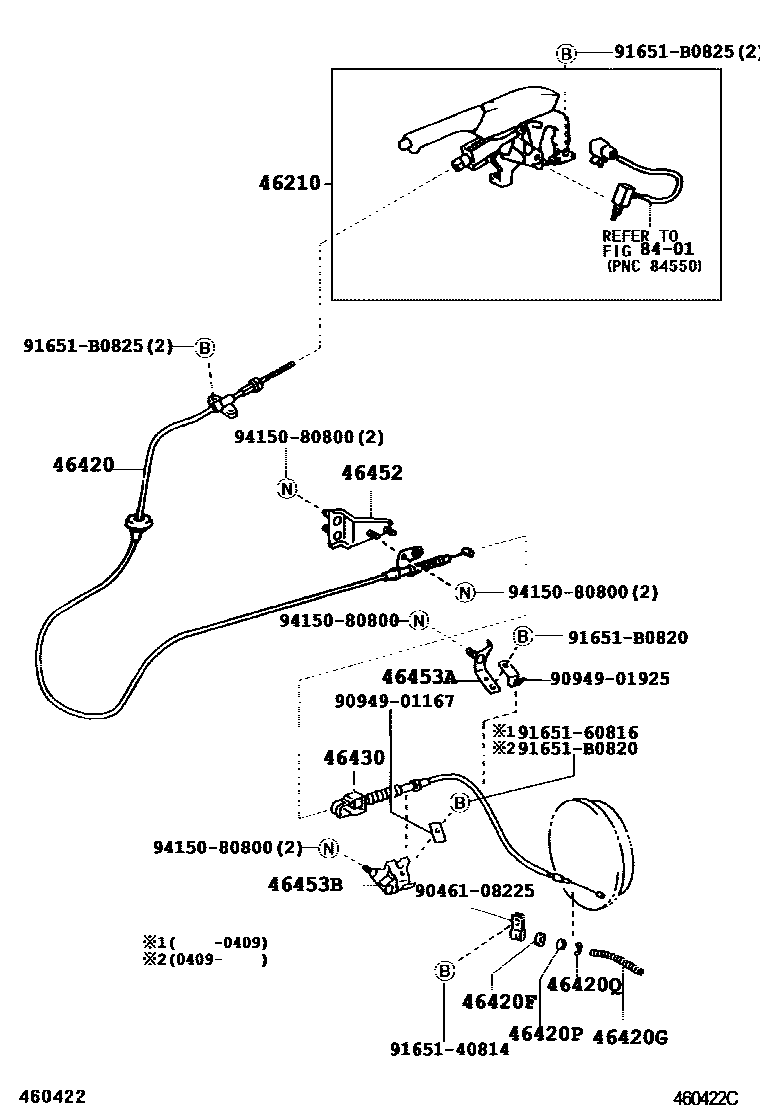

PARKING BRAKE & CABLE

0001 1 0002 1 0007 1 0010 1 0011 1 0013 1 0014 1 0015 1 0016 1MYY6S

46210LEVER ASSY, PARKING BRAKE

main46210-37031-B0iXZU414,424,434..EUR200110-200209

DK.CHARCOAL,TRIM1#

sub46210-37032

main46210-37032-B0iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200209-201208

DK.CHARCOAL,TRIM1#

main46210-37090-B0iXZU404,414,424..GEN200110-200212

DK.CHARCOAL,TRIM1#

sub46210-37091

main46210-37091-B0iWU410,420,XZU420,430..SA200212-200802

DK.CHARCOAL,TRIM1#

main46210-37100-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-200912

DK.CHARCOAL,TRIM1#

sub46210-37101

main46210-37101-B0iWU410..RHD201001-201106

DK.CHARCOAL,TRIM1#

sub46210-37240

sub46211-37070

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37330iXZU412,414,422,424..LHD..5F200110-200802

main46420-37340iXZU420,430200110-200802

main46420-37390iWU410..RHD..GEN200212-200802

main46420-37400iBU410,420200411-200701

main46420-37410iWU410..LHD200212-200610

main46420-37500iXZU415,425,435200608-200912

sub46420-37501

main46420-37501iWU412,422,XZU41#,42#,439200912-201208

main46420-37630iXZU423,433..SA200802-200812

sub46420-37631

main46420-37740iWU420;WU410..RHD..65T;WU410..75T..GEN200610-201106

main46420-37750iWU410..LHD200610-201106

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU404,412,414,424..55T200110-201106

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU404,412,414,424..55T200110-201106

46420PSPACER, PARKING BRAKE

main90560-08002iXZU413..55T200110-201106

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU404,412,414,424..55T200110-201106

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37410iXZU404,412,414,424..55T200110-200610

main46430-37420iBU410,420200411-200701

main46430-37430iXZU414,424,434..EUR200110-200802

main46430-37460iWU412,422,XZU413,415,417,423,425,427,433,435..6F..(DCRTJ,DCRTK)200608-200902

sub46430-37461

main46430-37461iWU412,422,XZU41#,42#,43#..6F200903-201208

main46430-37630iWU410,420..SA200212-200802

main46430-37A40iXZU413..55T200610-201106

main46430-37A50iWU412,422,XZU413,423..5F..(65T,75T)200610-201106

main46430-37A60iWU420;WU410..65T;WU410..75T..GEN200610-201106

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-37050iXZU414,424,434..EUR200110-200802

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37100iXZU404,412,422..5F;XZU414,424,434..ARL,GEN200110-200802

main46453-37160iWU410,420..SA200212-200802

main46453-37200iXZU415,425,435200608-201208

main46453-37320iWU420;WU410..65T;WU410..75T..GEN200610-201106

46453BBRACKET, CABLE SUPPORT, NO.3

main46453-37110iBU410,420200110-200802

8401

9046108225

main90461-08225

9094901167

main90949-01167

9094901925

main90949-01925

9165140814

main91651-40814

9165160816

main91651-60816

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9415080800

main94150-80800

19 parts on this diagram · 9 diagrams in section
