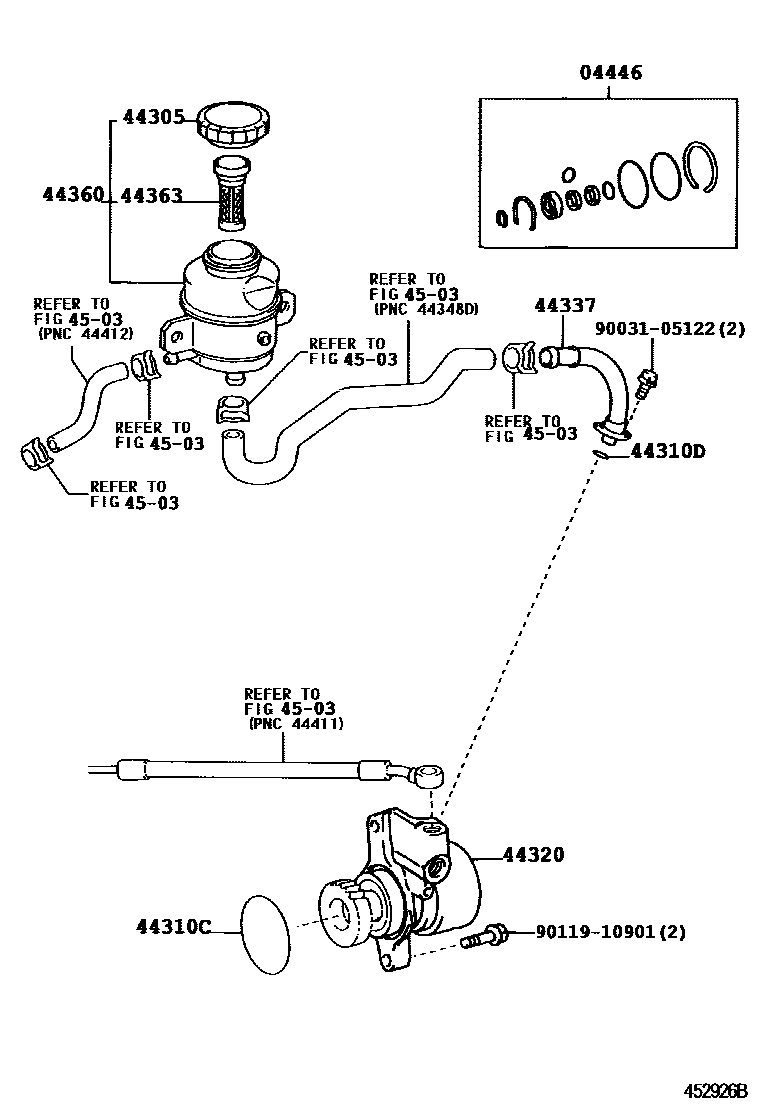

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0006 1 0007 1 0008 1 0009 1 0010 1

04446GASKET KIT, POWER STEERING PUMP

main04446-37010iXZU414,424,434..EUR200110-200802

main04446-37040iBU410,420200411-200701

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iXZU414,424,434..EUR200110-200712

sub44305-12040

main44305-12040iXZU412,422;WU410,420,XZU420,430..SA200712-200802

main44305-37020iWU41#,422,XZU413,415,417,423,425,427,435..(EUR,GCC,GEN,TAIW)..(DCRTJ,DCRTK,DSL)200610-200803

sub44305-37030

main44305-37030iWU41#,42#,XZU41#,42#,43#200803-201112

sub44305-37031

main44305-37031iXZU419,429,439201201-201208

44310PUMP ASSY, VANE

main44310-37120iBU410,420200411-200701

44310CRING, O(FOR VANE PUMP)

main90301-60002iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

44310DRING, O(FOR VANE PUMP UNION)

main90301-15019iXZU412,420,422,430..6F200110-201208

44320PUMP ASSY, VANE

main44310-37060iXZU404,412,414,424..55T200110-200610

sub44310-37061

main44310-37100iXZU412,420,422,430..6F200110-200802

sub44310-37101

main44310-37160iWU410,420..SA200212-201106

main44310-37180iXZU415,425,435200608-201106

main44310-37230iXZU413,415,417,419,423,425,427,429,433,435,439..(65T,75T,85T)..DCRTK200610-201208

main44310-37240iWU412,422200610-201106

44337UNION, POWER STEERING SUCTION PORT

main44337-37050iBU410,420200411-200701

main44337-37080iXZU412,420,422,430..6F200110-200802

main44337-37140iWU410..GCC,GEN200212-200802

main44337-37240iWU412,422200610-201106

main44337-37260iXZU415,425,435200608-200708

main44337-37350iWU420;WU410..65T;WU410..75T..GEN200610-201106

main44337-37370iXZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200610-201208

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37140iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-200802

main44360-37190iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200610-201208

44363STRAINER, OIL(FOR VANE PUMP)

main44363-37130iXZU414,424,434..EUR200110-200802

4503

9003105122

main90031-05122

9011910901

main90119-10901

12 parts on this diagram · 7 diagrams in section
