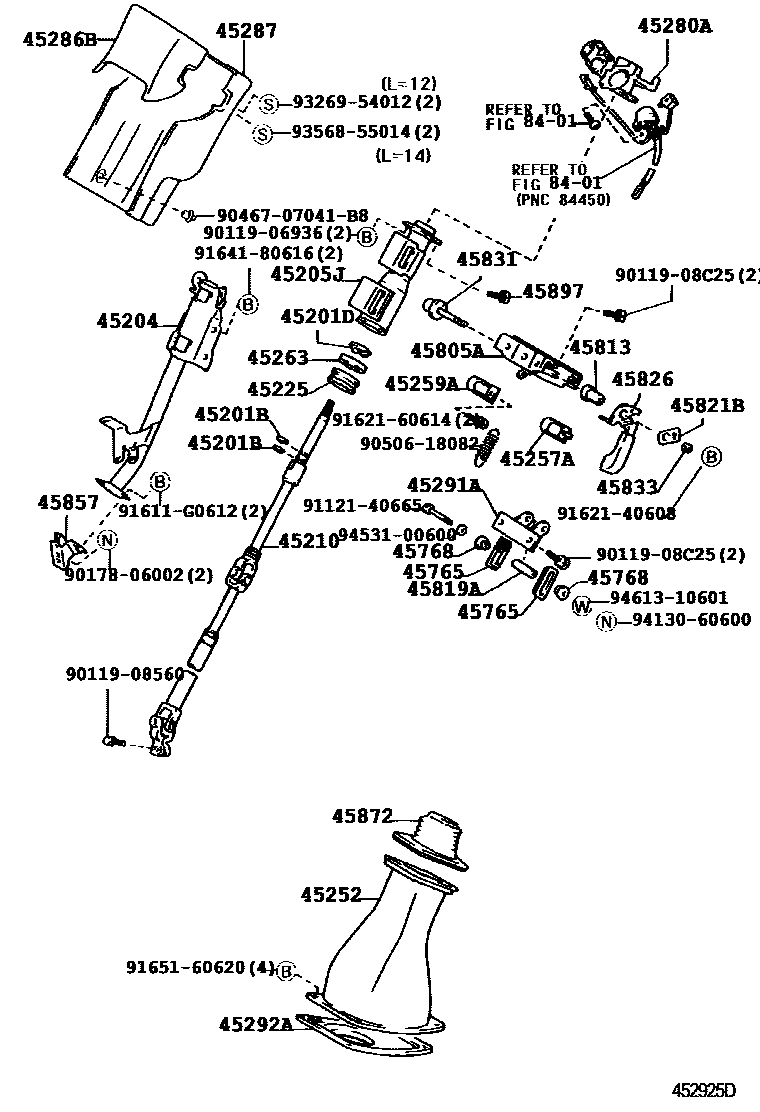

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17269iXZU414,424,434..EUR200110-201208

T=1.20

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28065iWU410,420,XZU404,41#,42#,43#200110-200404

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-37120iXZU414,424,434..EUR200110-200212

sub45204-37140

main45204-37130iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201106

main45204-37140iBU410,420200212-201208

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-37050iWU410,420,XZU404,41#,42#,43#200110-200405

main45205-37090iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200405-201208

45210SHAFT ASSY, STEERING MAIN

main45210-37130iWU410,420,XZU404,41#,42#,43#200110-200405

main45210-37200iXZU415,425,435;BU410,420,WU410,420,XZU404,412,414,420,422,424,430,434..ARL,GCC,GEN,SA,TAIW200405-200609

main45210-37290iBU410,420200610-201208

45225BLOCK, BEARING

main45225-26010iWU410,420,XZU404,41#,42#,43#200110-200405

45252TUBE, STEERING COLUMN, LOWER

main45252-37030-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200110-200909

MD.CHARCOAL,TRIM1#

sub45252-37031

main45252-37031-B0iWU410..RHD200910-201106

MD.CHARCOAL,TRIM1#

main45252-37040-B0iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200110-200909

MD.CHARCOAL,TRIM1#

sub45252-37041

main45252-37041-B0iWU41#,422,XZU41#,42#,439..LHD200910-201208

MD.CHARCOAL,TRIM1#

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-37010iXZU414,424,434..EUR200110-201208

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-37010iXZU414,424,434..EUR200110-201208

45263RING, STEERING COLUMN, NO.1

main45263-32010iXZU404,414,424,434200110-200203

main45263-37010iWU410,420,XZU404,41#,42#,43#200203-200405

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37100iXZU414,424,434..EUR200110-201208

45286BCOVER, STEERING COLUMN, UPR

main45286-37080-B0iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200110-200909

MD.CHARCOAL,TRIM1#

sub45286-37081

main45286-37081-B0iWU410..RHD200910-201106

MD.CHARCOAL,TRIM1#

main45286-37090-B0iWU410,XZU412,414,422,424..LHD..(GCC,GEN)200110-200909

MD.CHARCOAL,TRIM1#

sub45286-37091

main45286-37091-B0iWU41#,422,XZU41#,42#,439..LHD200910-201208

MD.CHARCOAL,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37080-B0iWU410,420,XZU420,430..SA200110-200909

MD.CHARCOAL,TRIM1#

sub45287-37081

main45287-37081-B0iWU410..RHD200910-201106

MD.CHARCOAL,TRIM1#

main45287-37090-B0iXZU414,424,434..EUR200110-200909

MD.CHARCOAL,TRIM1#

sub45287-37091

main45287-37091-B0iWU41#,422,XZU41#,42#,439..LHD200910-201208

MD.CHARCOAL,TRIM1#

45291ASUPPORT, STEERING COLUMN TUBE

main45803-37010iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37010iXZU415,425,435200110-200802

main45292-37030iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-200802

main45292-37040iWU410..RHD..65T;WU410..75T..GEN;WU420,XZU423,433..SA200610-201106

main45292-37060iWU41#,422,XZU413,415,417,419,423,425,427,429,435,439..LHD..(DCRTJ,DCRTK,DSL)200610-201208

45765GUIDE, TELESCOPIC STEERING

main45765-37010iXZU414,424,434..EUR200110-201208

45768BUSH, TELESCOPIC STEERING

main45768-37010iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201208

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-37010iXZU414,424,434..EUR200110-201208

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-37010iXZU414,424,434..EUR200110-201208

OD=30

45819ACOLLAR(FOR TILT LEVER RETAINER)

main90387-06037iXZU414,424,434..EUR200110-201208

45821BREINFORCE, TILT STEERING SUPPORT, NO.1

main45821-12010iXZU415,425,435200110-201208

45826LEVER, STEERING TILT

main45826-37010iXZU414,424,434..EUR200110-201208

45831BOLT, TILT LEVER LOCK, NO.1

main45831-37010iXZU414,424,434..EUR200110-201208

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-37010iXZU414,424,434..EUR200110-201208

45857BRACKET, TILT STEERING COLUMN TUBE, NO.1

main45857-37020iWU410,XZU404,412,414,422,424,434..RHD..(ARL,GEN)200110-201106

main45857-37040iBU410,420200110-201208

45872COVER, STEERING COLUMN TUBE

main45872-37010iXZU414,424,434..EUR200110-201208

45897BOLT, STEERING LOCK SET

main45897-12030iXZU404,414,424,434200110-200204

main45897-25010iXZU414,424,434..EUR200204-201208

8401

9011906936

main90119-06936

9011908560

main90119-08560

9011908C25

main90119-08C25

9017806002

main90178-06002

9046707041B8

main90467-07041B8

9050618082

main90506-18082

9112140665

main91121-40665

91611G0612

main91611-G0612

9162140608

main91621-40608

9162160614

main91621-60614

9164180616

main91641-80616

9165160620

main91651-60620

9326954012

main93269-54012

9356855014

main93568-55014

9413060600

main94130-60600

9453100600

main94531-00600

9461310601

main94613-10601

45 parts on this diagram · 3 diagrams in section
