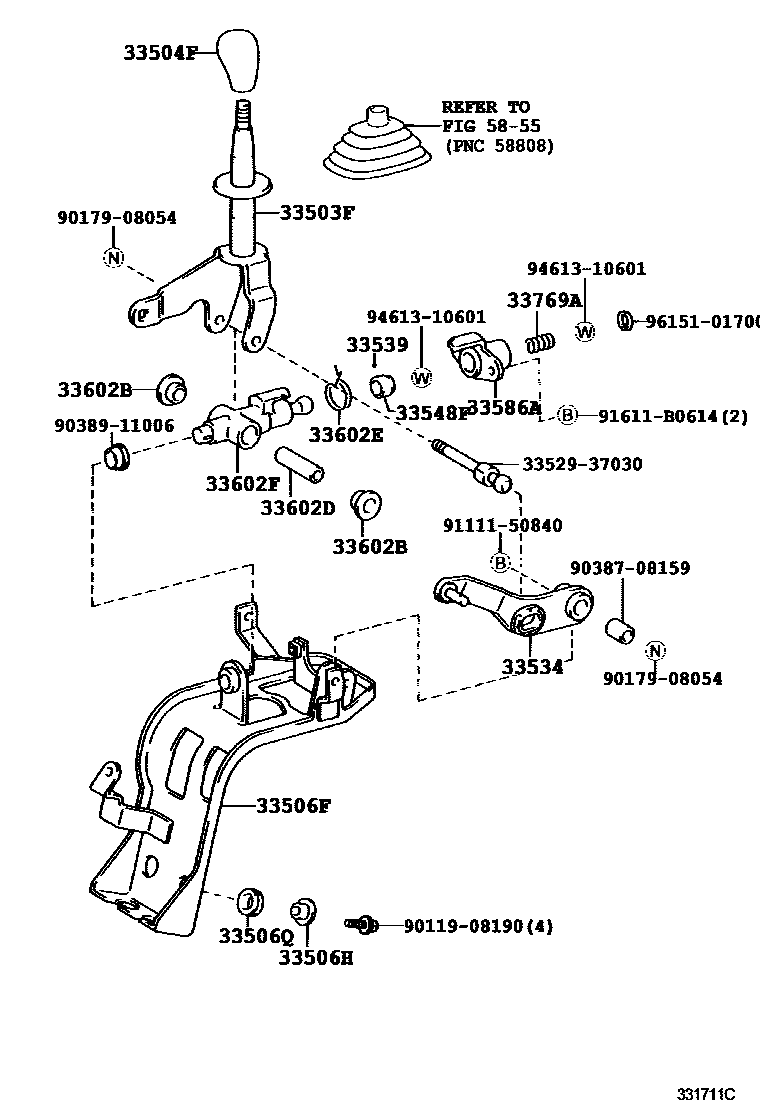

SHIFT LEVER & RETAINER

0001 1 0002 1 0005 1 0007 1 0008 1 0009 1 0010 1 0012 1 0014 1 0016 1 0017 1 0018 1 0019 1 0020 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37060iWU410,420,XZU404,41#,42#,43#..RHD¥4,060200110-200412

main33055-37091iWU410,XZU412,414,422,424..LHD..5F¥3,590200110-200802

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-36051-B1iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200206-201106

DK.CHARCOAL,TRIM1#

sub33504-36051¥2,710

main33504-36080-B1iXZU414,424,434..6F..ARL200206-200802

DK.CHARCOAL,TRIM1#

sub33504-36080¥2,730

main33504-37030-B0iXZU414,424,434..EUR200110-200206

DK.CHARCOAL,TRIM1#

sub33504-36080¥2,730

main33504-37040-B0iXZU404,414,424..GEN200110-200206

DK.CHARCOAL,TRIM1#

sub33504-36051¥2,710

main33504-37060-B0iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

DK.CHARCOAL,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37031iWU410,420,XZU404,41#,42#,43#..RHD¥9,100200110-200412

main33506-37052iWU410,XZU412,414,422,424..LHD..5F¥9,100200110-200802

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-37010iWU41#,422,XZU41#,42#,439..LHD¥190200909-201208

main90386-12056iXZU414,424,434..EUR¥100200110-200909

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060iXZU414,424,434..EUR¥80200110-201208

33534BELLCRANK, SELECTING

main33534-37060iWU410,420,XZU404,41#,42#,43#..RHD¥1,520200110-200412

main33534-37081iXZU414,424,434..EUR¥1,380200110-200802

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iWU410,420,XZU404,41#,42#,43#..RHD¥120200110-200802

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iWU410,420,XZU404,41#,42#,43#..RHD¥190200110-200802

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37010iXZU414,424,434..EUR¥710200110-200802

main33586-37020iWU410,420,XZU404,41#,42#,43#..RHD¥1,460200110-200412

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iWU410,XZU412,414,422,424..LHD..5F¥160200110-200802

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iWU410,420,XZU404,41#,42#,43#..RHD¥200200110-200802

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034iWU410,420,XZU404,41#,42#,43#..RHD¥130200110-200802

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37020iWU410,420,XZU404,41#,42#,43#..RHD¥820200110-200412

main33602-37030iXZU414,424,434..EUR¥730200110-200802

33769ASPRING, CROSS SHAFT END

main33769-37020iWU410,420,XZU404,41#,42#,43#..RHD¥120200110-200412

5855

3352937030BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-37030¥640

9011908190

main90119-08190¥100

9017908054

main90179-08054¥100

9038708159

main90387-08159¥220

9038911006

main90389-11006¥110

9111150840

main91111-50840¥200

91611B0614

main91611-B0614¥110

9461310601

main94613-10601¥70

9615101700

main96151-01700¥260

24 parts on this diagram · 14 diagrams in section
