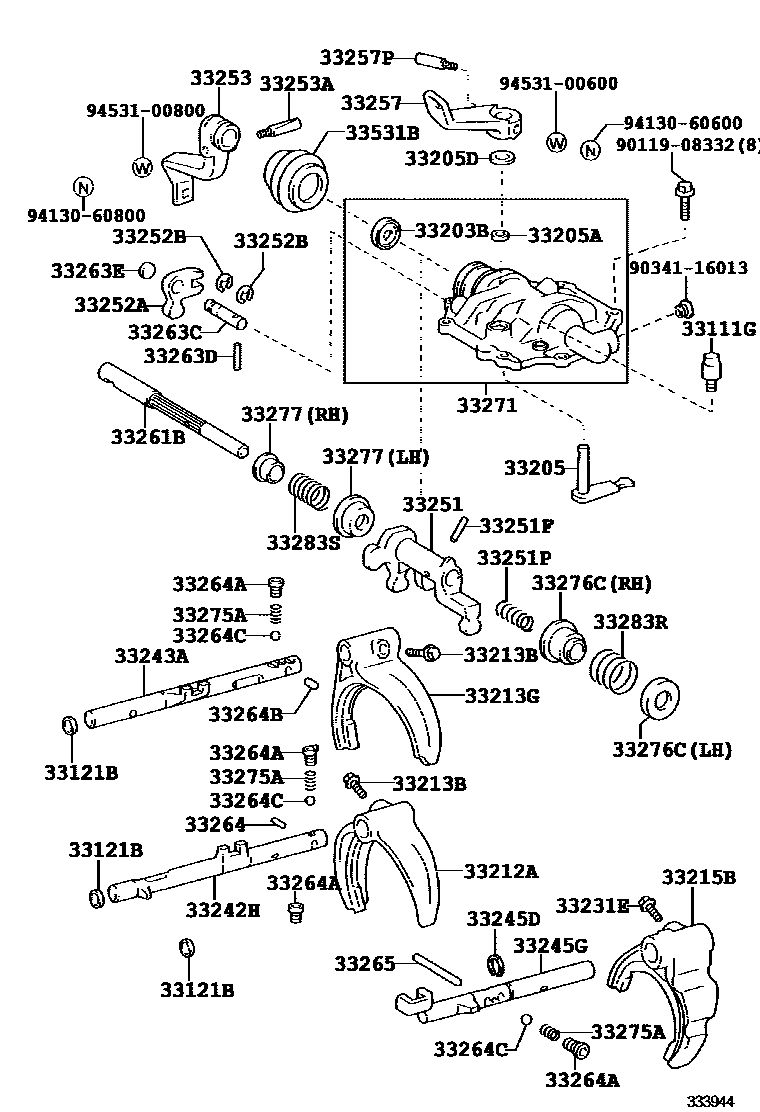

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1H350 0002 1H260,H261 0004 1M153 0006 1H260 0007 1MYY6S 0009 1M550 0010 1M153

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03090iXZU414,424,434..EUR200110-201106

mainSU00200471iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main96411-41800iXZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F200110-200802

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-22009iWU420;WU410..65T;WU410..75T..GEN200110-201106

mainSU00200355iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-37040iWU412,422,XZU413,423..5F200610-201106

main33262-36050iWU410,420..SA200212-201106

main33262-37020iXZU404,412,414,422,424..5F200110-200610

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90311-13001iXZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)200110-201106

mainSU00200264iXZU415,425,435200608-201208

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iXZU414,424,434..EUR200110-201106

OD=28

mainSU00200357iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33212AFORK, GEAR SHIFT, NO.1

main33210-37010iWU412,422,XZU413,423..5F200610-200902

sub33210-37020

main33210-37020iWU412,422,XZU413,423..5F200902-201106

main33212-36031iWU410..GCC,GEN200212-201106

main33212-60050iXZU414,424,434..EUR200110-200802

mainSU00200240iXZU415,425,435200608-201208

33213BBOLT(FOR SHIFT FORK SET)

main90105-07001iWU410..GCC,GEN200212-201106

main90105-08211iXZU424..85T..ARL;XZU412,422,434..6F..(ARL,GEN)200110-201106

33213GFORK, GEAR SHIFT, NO.2

main33213-36050iWU420;WU410..65T;WU410..75T..GEN200212-201106

main33213-60060iXZU414,424,434..EUR200110-200802

main33220-37010iWU412,422,XZU413,423..5F200610-200902

sub33220-37020

main33220-37020iWU412,422,XZU413,423..5F200902-201106

mainSU00200939iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200610-201111

subSU002-01056

33215BFORK, GEAR SHIFT, NO.4

main33212-37020iXZU404,412,414,422,424..5F200110-200610

main33215-37021iXZU412,420,422,430..6F200110-200802

mainSU00200331iXZU415,425,435200608-201208

33231HEAD, REVERSE SHIFT

main33231-37011iXZU424,434..85T..ARL200110-200802

33231EBOLT(FOR REVERSE SHIFT HEAD)

main90105-07001iXZU414,424,434..EUR200110-200802

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-37050iWU412,422,XZU413,423..5F200610-201106

33242HSHAFT, GEAR SHIFT FORK, NO.1

main33242-37031iXZU414,424,434..EUR200110-200802

main33243-37040iXZU404,412,414,422,424..5F200110-200610

mainSU00200518iXZU415,425,435200608-201208

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-37020iWU410,420..SA200212-201106

main33243-37031iBU410,420200110-200802

main33243-37050iWU412,422,XZU413,423..5F200610-200905

main33243-37060iWU412,422,XZU413,423..5F200905-201106

sub33243-37061

main33244-37040iXZU404,412,414,422,424..5F200110-200610

mainSU00200709iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33245DRING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT)

main90520-14003iXZU424..85T..ARL;XZU412,422,434..6F..(ARL,GEN)200110-200802

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33242-37040iXZU404,412,414,422,424..5F200110-200610

main33245-37010iXZU434;XZU424..85T..ARL;BU410,420,XZU412,414,420,422,424,430..6F..(EUR,GEN,SA,TAIW)200207-200802

main33245-37020iWU412,422,XZU413,423..5F200610-200902

sub33245-37030

main33245-37030iWU412,422,XZU413,423..5F200902-201106

mainSU00200333iWU412,422,XZU413,415,417,423,425,427,433,435..6F..(DCRTJ,DCRTK)200610-200808

subSU002-01033

mainSU00201033iWU412,422,XZU41#,42#,43#..6F200808-201208

33251LEVER, SHIFT & SELECT

main33251-36090iWU410..GCC,GEN200212-201106

main33251-37030iXZU424,434..85T..ARL200110-200802

main33251-37040iXZU404,412,414,422,424..5F200110-200610

mainSU00200249iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main90254-05016iXZU414,424..(65T,75T)..ARL200110-200802

33251PSPRING (FOR SHIFT & SELECT LEVER)

main90501-12185iXZU404,412,414,422,424..5F200110-200610

main90501-16090iWU420;WU410..65T;WU410..75T..GEN200212-201106

LH

main90501-18121iWU420;WU410..65T;WU410..75T..GEN200212-201106

RH

mainSU00200352iXZU415,425,435200608-201208

NO.1

mainSU00200353iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

NO.2

33252ALEVER, SHIFT, INNER NO.2

main33252-36010iWU420;WU410..65T;WU410..75T..GEN200212-201106

main33252-37020iXZU404,412,414,422,424..5F200110-200610

mainSU00200334iXZU415,425,435200608-201208

33252BRING, E (FOR SHIFT INNER LEVER)

main90523-12001iWU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN)200110-200802

33253LEVER, SHIFT OUTER, NO.1

main33253-37070iWU410,420..SA200212-201106

main33253-37080iXZU414,424,434..EUR200110-200802

mainSU00200246iXZU415,425,435200608-201208

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-36030iWU410,XZU404,412,414,422,424,434..ARL,GCC,GEN200110-200802

33257LEVER, SELECT OUTER

main33257-37060iWU410,420..SA200212-201106

main33257-37080iXZU412,420,422,430..6F200110-200802

main33257-37090iWU412,422,XZU413,423..5F200610-201106

mainSU00200983iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU410,420200110-201106

mainSU00200271iXZU415,425,435200608-201208

33261BSHAFT, SHIFT LEVER

main33261-37020iXZU424,434..85T..ARL200110-200802

main33261-37030iXZU404,412,414,422,424..5F200110-200610

33263CSHAFT, SHIFT LEVER, NO.2

main33263-36010iWU410..GCC,GEN200212-200802

main33263-37010iXZU404,412,414,422,424..5F200110-200610

33263DPIN (FOR SHIFT LEVER SHAFT)

main90250-04060iWU410..GCC,GEN200212-200802

main90250-04110iXZU404,412,414,422,424..5F200110-200610

33263EPLUG (FOR SHIFT LEVER SHAFT)

main90331-14004iWU410,XZU404,412,414,422,424..5F..(ARL,GCC,GEN)200110-200802

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-10011iWU410,420..SA200212-200802

L=13.4,OD=9.53

main90250-10023iXZU414,424..(65T,75T)..ARL200110-200802

L=15.45

33264APLUG, INTERLOCK HOLE

main90341-12008iXZU414,424..(65T,75T)..ARL200110-201106

OD=18

main90341-18039iWU412,422,XZU413,423..5F200610-201106

OD=25

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90361-05001iWU410,420..SA200212-200802

L=13

main90361-10003iXZU420,430200110-200802

L=13.6,OD=9.5

33264CBALL (FOR SHIFT INTERLOCK)

main90360-10003iXZU424,434..85T..ARL200110-201106

33265PIN, SHIFT INTERLOCK, NO.2

main90250-10015iWU410..GCC,GEN200212-200802

L=7.5,OD=9.67

main90250-10024iXZU414,424..(65T,75T)..ARL200110-200802

L=56.95,OD=9.53

main90250-10035iXZU404,412,414,422,424..5F200110-200610

L=81.9,OD=9.53

33271HOUSING, SHIFT LEVER SHAFT

main33207-37011iXZU424,434..85T..ARL200110-200802

main33207-37030iXZU404,412,414,422,424..5F200110-200610

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main34559-37010iXZU414,424,434..6F..ARL200212-200802

L=24.7

main90501-14155iBU410,420200110-200701

L=29.3

main90501-14194iWU412,422,XZU413,423..5F200610-201004

L=31.7

main90501-15055iWU412,422,XZU413,423..5F200610-201106

L=90.5

main90501-16145iWU410,420..SA200212-201106

L=28.8

main90501-17043iWU412,422,XZU413,423..5F201004-201106

L=26.6

33276CSEAT, SELECT SPRING

main33276-37010iXZU414,424..(65T,75T)..ARL200110-200802

RH

main33276-37020iXZU412,420,422,430..6F200110-200802

LH

main33276-37030iXZU404,412,414,422,424..5F200110-200610

RH

main33276-37040iXZU404,412,414,422,424..5F200110-200610

LH

33277SEAT, SELECT SPRING, NO.2

main33277-37010iXZU424,434..85T..ARL200110-200802

LH

main33277-37020iXZU414,424,434..EUR200110-200802

RH

main33277-37030iXZU404,412,414,422,424..5F200110-200610

LH

33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)

main90501-16153iXZU412,420,422,430..6F200301-200802

main90501-16169iXZU414,424,434..6F200110-200301

sub90501-16153

main90501-23150iXZU404,412,414,422,424..5F200110-200610

33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)

main90501-20164iXZU412,420,422,430..6F200110-200802

main90501-20165iXZU404,412,414,422,424..5F200110-200610

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-36060iWU410..GCC,GEN200212-200802

main33531-37020iXZU420,430200110-200802

9011908332

main90119-08332

9034116013

main90341-16013

9413060600

main94130-60600

9413060800

main94130-60800

9453100600

main94531-00600

9453100800

main94531-00800

48 parts on this diagram · 7 diagrams in section
