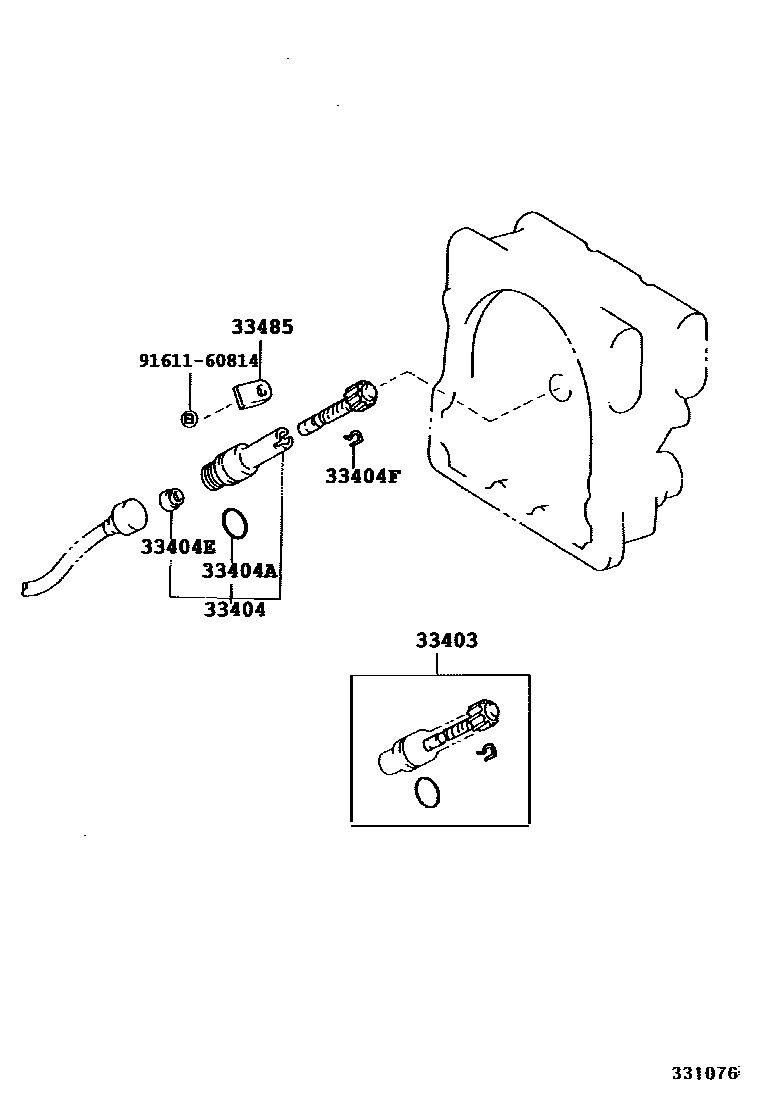

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1H260,H261,H350,H351,M153 0002 1MYY6S 0003 1M550 0004 1M153 0005 1MYY6S

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-39205iXZU414..RHD..55T;XZU404,412,424..55T;XZU424..LHD..75T..GEN200212-201106

N=20,MARK 20:6

main33482-39215iXZU414,424,434..EUR200110-201106

N=21,MARK 21:6

main33482-39225iWU410,420..SA;XZU412,422..6F200110-201106

N=22,MARK 22:6

main33482-39235iWU420..75T;WU41#,422,XZU413,423..5F..(65T,75T)..(GCC,GEN)200212-201106

N=23,MARK 23:6

main33482-39245iBU410,420200212-201106

N=24,MARK 24:6

main33482-39255iWU410..75T..GEN200212-200610

N=25,MARK 25:6

main33482-39525iXZU414..LHD..GEN200212-200610

N=22,MARK 22:7

mainSU00200170iWU412,422,XZU433..85T200610-201106

N=16

mainSU00200171iWU412,422,XZU423,433..6F..(GCC,SA)200610-201106

N=15

mainSU00200172iXZU415,425,435200608-201106

N=14

mainSU00200359iXZU415,425,435200608-201208

N=13

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-36020iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200110-201106

mainSU00200173iWU412,422,XZU433..85T200610-201106

N=16

mainSU00200174iXZU415,425,435200608-201208

mainSU00200174iWU412,422,XZU413,423,433..6F200610-201106

N=13,14,15

mainSU00200174iXZU417,427200701-200901

N=13,14

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iXZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)200110-201106

mainSU00201010iXZU415,425,435200608-201208

subSU002-00177

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iXZU412,422..6F;WU410,420,XZU420,430..SA200110-201106

mainSU00200175iXZU415,425,435200608-201208

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)200110-201106

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iXZU424..75T..GEN;XZU424,434..55T,85T;WU410,XZU404,412,414,422..5F..(ARL,GCC,GEN)200110-201106

main33485-37010iXZU415,425,435200608-201208

9161160814

main91611-60814

7 parts on this diagram · 5 diagrams in section
