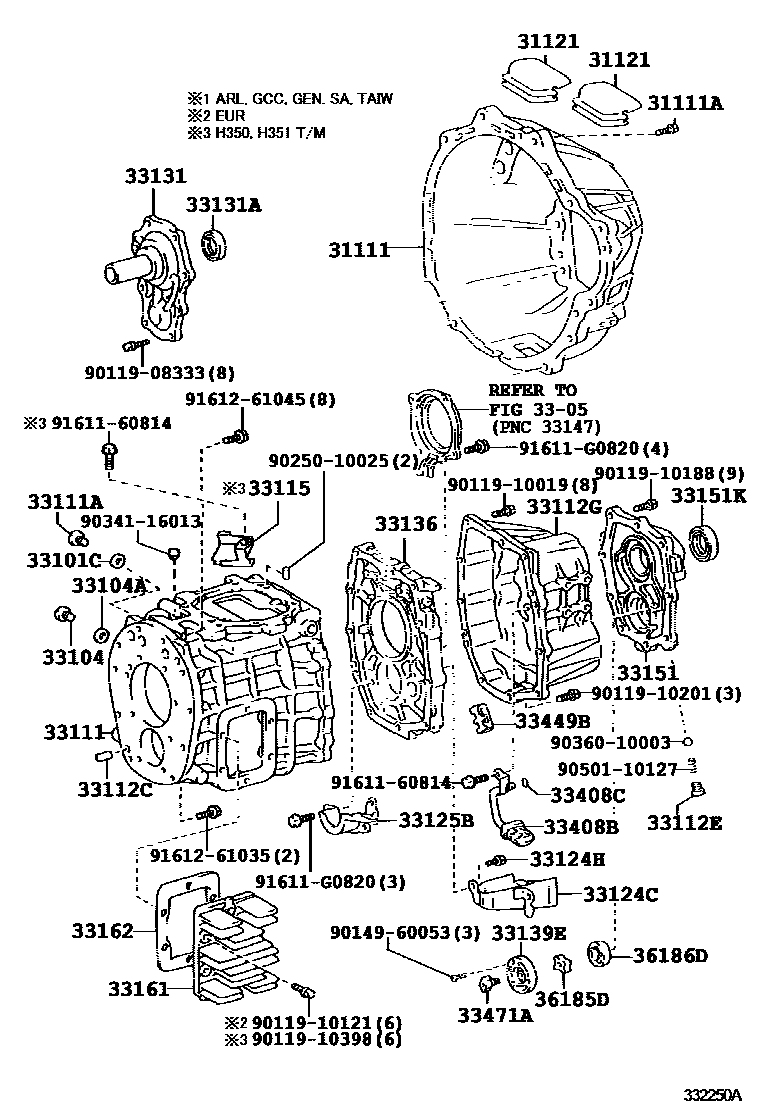

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1H260,H261,H350,H351 0003 1M153 0005 1H260 0006 1MYY6S 0007 1M153 0008 1M550 0009 1MYY6S

31111HOUSING, CLUTCH

main31111-37050iBU410,420200411-200701

main31111-37060iXZU412,422..6F200110-200802

main31111-37090iWU410..GCC,GEN200212-201106

main31111-37100iWU412,422,XZU413,423..5F200610-201106

sub31111-36400

mainSU00200667iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

subSU002-01091

31111ABOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)

main90119-10898iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXZU414,424,434..EUR200110-201208

3305

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36084iWU410..GCC,GEN200212-201106

main33101-36130iWU412,422,XZU413,423..5F200610-201106

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iXZU424..75T..GEN;XZU424,434..55T,85T;XZU404,412,414,422..5F200110-201106

mainSU00200149iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iXZU414,424..(65T,75T)..ARL200110-201106

main90341-18057iWU412,422,XZU413,423..5F200610-201106

mainSU00200945iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iXZU414,424..(65T,75T)..ARL200110-201106

mainSU00200149iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33111CASE, MANUAL TRANSMISSION

main33111-37041iXZU414,424,434..EUR200110-200802

mainSU00200367iXZU415,425,435200608-201208

subSU002-00713

33111APLUG, MANUAL TRANSMISSION CASE

main90341-14008iWU412,422,XZU413,423..5F200610-201106

main90341-18006iXZU424..85T;XZU414..LHD..GEN;XZU414,424..75T..GEN;XZU404,414,434..(55T,85T)..ARL;WU410,XZU412,422..5F..(GCC,GEN)200110-201106

33112CPIN, STRAIGHT(FOR TRANSFER ADAPTER)

main90250-12002iXZU412,420,422,430..6F200110-200802

mainSU00200155iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33112EPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER)

main90341-12008iXZU414,424,434..EUR200110-200802

33112GCASE, TRANSMISSION, REAR

main33112-37010iBU410,420200110-200802

mainSU00200871iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33115PLATE, TRANSMISSION OIL FILTER

main33115-37010iXZU404,412,414,422,424..5F200110-200610

mainSU00200474iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iWU420;WU410..65T;WU410..75T..GEN200212-201106

main33124-37010iBU410,420200110-200802

main33124-37020iWU412,422,XZU413,423..5F200610-201106

sub33124-37021

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60814iXZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN200110-200802

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iWU420;WU410..65T..SA200212-201106

main33125-37020iXZU404,412,414,422,424..5F200110-200610

main33125-60010iXZU414,424,434..EUR200110-200802

33131RETAINER, BEARING, FRONT(MTM)

main33018-37010iWU410..75T..SA200212-201106

main33018-37050iWU412,422,XZU413,423..5F200610-201106

main33131-37080iXZU420,430200110-200802

main33131-60070iBU410,420200411-200701

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-35023iXZU414,424..(65T,75T)..ARL200110-201106

mainSU00200148iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33136PLATE, TRANSMISSION INTERMEDIATE

main33136-37011iXZU414,424..(65T,75T)..ARL200110-200802

33139ECOVER, OIL PUMP

main33139-36010iXZU414,424..(65T,75T)..ARL200110-200802

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iWU410..75T..SA200212-201106

main33017-37030iWU412,422,XZU413,423..5F200610-201106

sub33017-37070

main33151-37011iBU410,420200110-200802

mainSU00200168iWU412,422,XZU413,415,417,419,423,425,427,429,433,435,439..6F..(DCRTJ,DCRTK)200608-201208

33151KSEAL, TYPE T OIL

main90311-48011iXZU414,424..(65T,75T)..ARL200110-200802

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,423..5F200110-201106

main33161-36010iBU410,420200506-200701

W(PTO)

main33161-36040iBU410,420200110-200701

mainSU00200150iXZU415,425,435200608-201208

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iBU410,420200110-201106

mainSU00200147iXZU415,425,435200608-201208

33408BSTRAINER SUB-ASSY, MANUAL TRANSMISSION OIL(FOR REAR CASE)

main33408-37010iXZU420,430200110-200802

33408CRING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19009iXZU414..5F;XZU424..55T,85T;XZU424..75T..GEN;XZU404,412,422,434..ARL,GCC,GEN200110-200802

33449BMAGNET, TRANSMISSION

main33449-35010iBU410,420200110-200802

main33449-36010iWU410..GCC,GEN200212-201106

mainSU00200157iXZU415,425,435200608-201208

33471ASHAFT, OIL PUMP DRIVE (FOR COUNTER GEAR)

main33471-36010iXZU414,424,434..EUR200110-200802

36185DROTOR, TRANSFER OIL PUMP DRIVE(FOR COUNTER GEAR REAR)

main36185-60030iXZU414,424,434..EUR200110-200802

36186DROTOR, TRANSFER OIL PUMP DRIVEN (FOR COUNTER GEAR REAR)

main36186-60010iXZU414,424,434..EUR200110-200802

9011908333

main90119-08333

9011910019

main90119-10019

9011910121

main90119-10121

9011910188

main90119-10188

9011910201

main90119-10201

9011910398

main90119-10398

9014960053

main90149-60053

9025010025

main90250-10025

9034116013

main90341-16013

9036010003

main90360-10003

9050110127

main90501-10127

9161160814

main91611-60814

91611G0820

main91611-G0820

9161261035

main91612-61035

9161261045

main91612-61045

46 parts on this diagram · 7 diagrams in section
