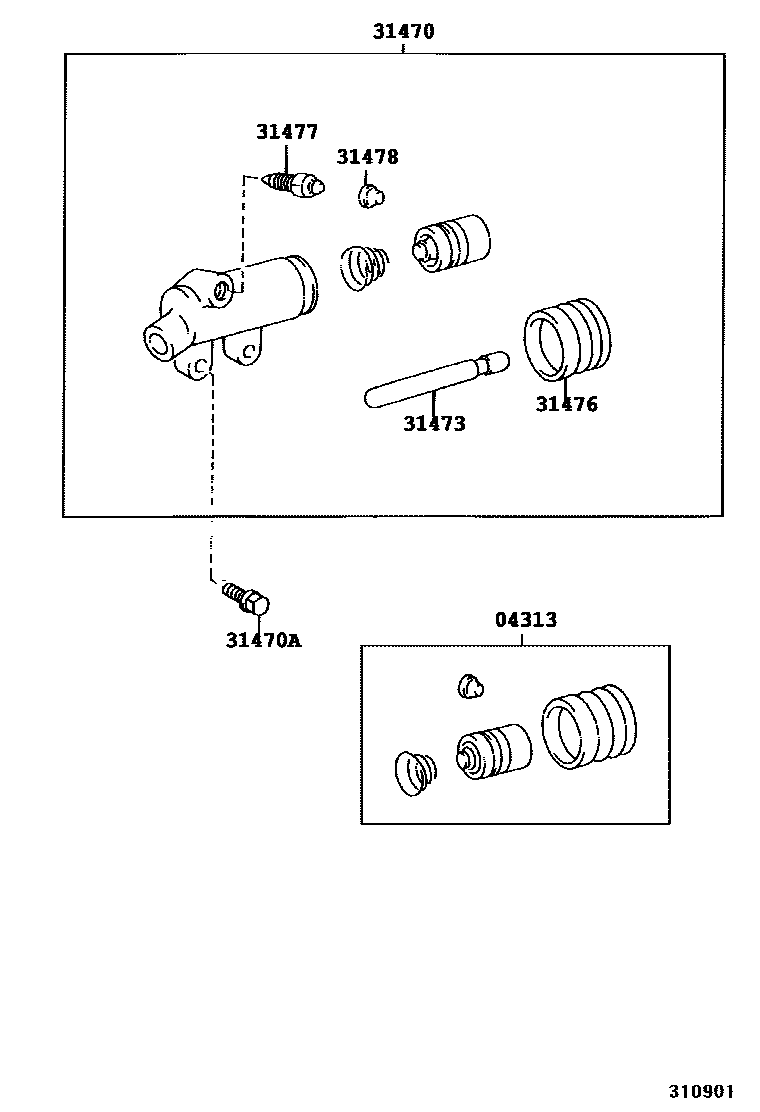

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iBU410,420200110-201208

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37050iBU410,420200411-200701

main31470-37080iXZU414,424,434..ARL,GEN;WU410,XZU404,412,422..5F..(ARL,GCC,GEN)200110-201208

sub31470-37081

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iWU410..65T;WU410..75T..GEN;WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-37030iBU410,420200411-200701

main31473-37050iXZU415,425,435200110-201208

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU414,424,434..EUR200110-201208

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU414,424,434..EUR200110-201208

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU414,424,434..EUR200110-201208

7 parts on this diagram · 1 diagram in section
