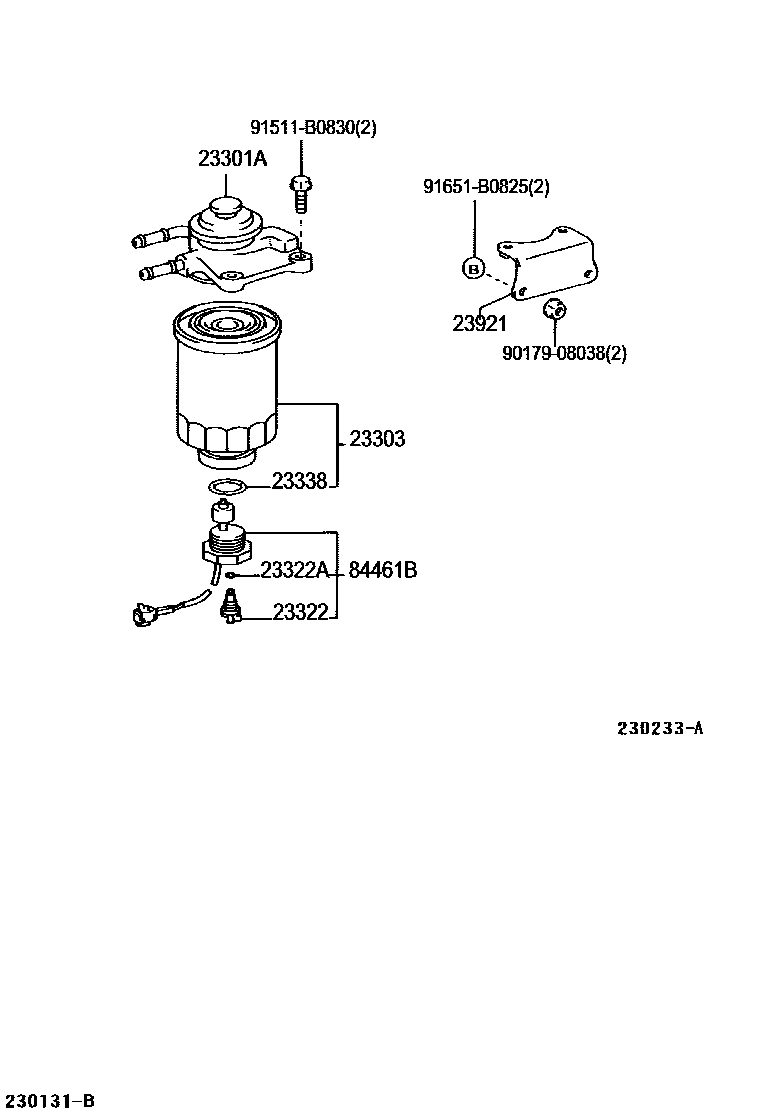

FUEL FILTER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

23301BODY SUB-ASSY, FUEL FILTER

main23301-78251iN04C..XZU415,425,435200608-200907

sub23301-78252

main23301-78252iN04C..XZU41#,42#,439200907-201208

sub23301-78253

main23301-78262iN04C..XZU419,429,439200908-201208

COLD AREA SPEC

sub23301-78263

main23310-78040iW04D..WU410..GCC,GEN200212-201106

main23311-78370iW04D..WU412,422200610-201106

subS2331-01660

main23311-89101iJ05C,S05C..XZU412,420,422,430..6F200212-200802

subS2331-11410

23301ACAP ASSY, FUEL FILTER

main23310-89101iJ05C,S05C..XZU412,420,422,430..6F200212-200802

subS2331-01680

main23380-78050i15BFTE..BU410,420200411-200701

sub23380-78051

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-78110iW04D..WU410,420200212-201106

NO.1

main23304-78110iS05C..XZU414,424,434..EUR200110-200610

main23304-78370iW04D..WU412,422200610-201106

NO.2

main23304-89101iS05C..XZU412,422..5F200212-200802

NO.2

main23390-64480i15BFTE..BU410,420200411-200701

main23390-78221iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-201208

sub23304-78222

mainS234011133iW04D..WU410,420200212-201106

NO.2

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-78030iJ05C,S05C..XZU412,420,422,430..6F200110-200802

main23388-64470i15BFTE..BU410,420200411-200701

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i15BFTE..BU410,420200411-200701

23338GASKET(FOR WARNING SWITCH)

main23344-64010i15BFTE..BU410,420200411-200701

23921SUPPORT, FUEL FILTER

main23264-78020iS05C..XZU414,424,434..EUR200110-200610

NO.1

subS2339-42330

main23264-78050iW04D..WU412,422200610-201106

NO.2

sub23264-E0220

main23921-78120i15BFTE..BU410,420200411-200701

main23921-78120iN04C..XZU415,425,435200608-201208

NO.1

main23921-78150iS05C..XZU412,422..5F200212-200802

NO.1

main23921-78150iS05C..XZU414,424,434..EUR200110-200610

NO.2

main23921-78150iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

main23921-78230iN04C..XZU415,425,435200608-201208

NO.2

84461BSWITCH, LEVEL WARNING

main84461-28040iBU410,420200411-200701

sub84461-28041

9017908038

main90179-08038

91511B0830

main91511-B0830

91651B0825

main91651-B0825

11 parts on this diagram · 7 diagrams in section
