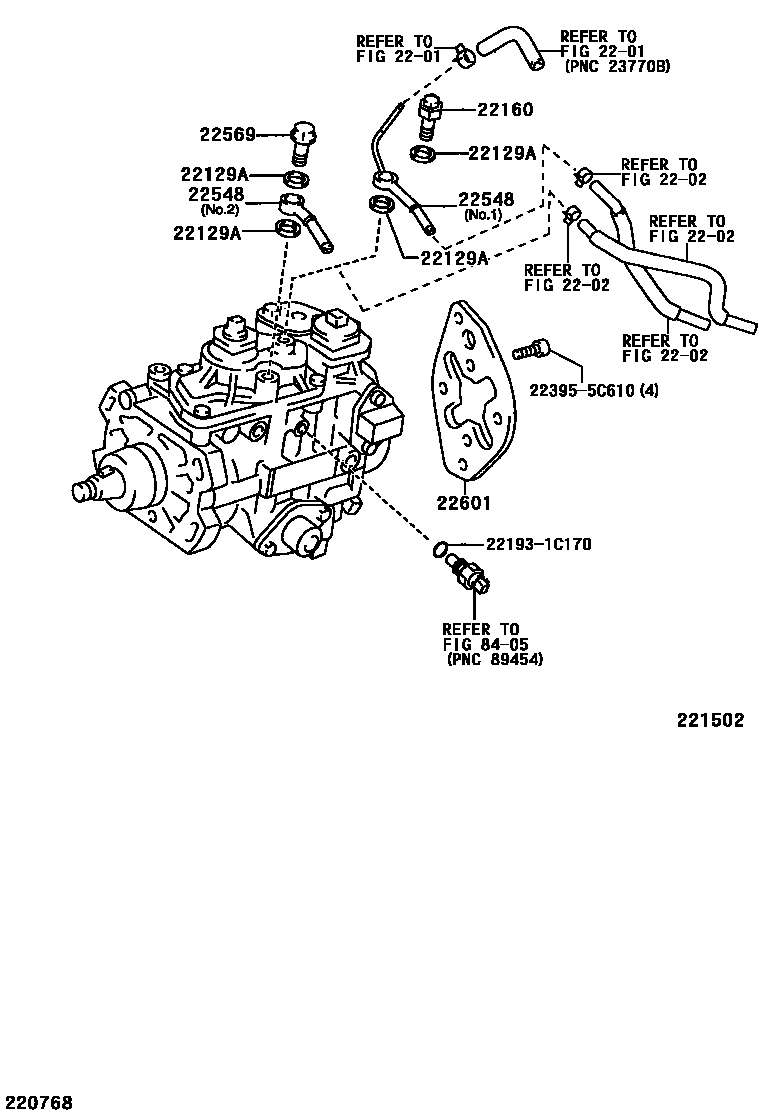

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W(HIGH ALTITUDE COMPENSATOR) 0007 1 0008 1 0009 1

2201

2202

22129PLUG, SCREW

mainS228451280iS05C..XZU412,422..DSL200212-200610

22129AWASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG)

main22149-54800i15BFTE..BU410,420200411-200701

22160SCREW SUB-ASSY, OVERFLOW

main20321-78020iW04D..WU412,422200610-201106

subS2210-71750

main22160-1C170i15BFTE..BU410,420200411-200701

main22160-89101iJ05C..XZU420,430200304

subS2210-71430

main22199-78280iW04D..WU410..75T..SA200212-201106

subS2210-71500

main22199-78290iS05C..XZU412,422200212

sub20321-78020

22548NIPPLE, SWIVEL

main22548-5C590i15BFTE..BU410,420200411-200701

NO.1

main22548-5C610i15BFTE..BU410,420200411-200701

NO.2

22569SCREW, OVERFLOW

main22569-1C400i15BFTE..BU410,420200411-200701

22601BRACKET SUB-ASSY, IDLE UP

main22601-5C610i15BFTE..BU410,420200411-200701

8405

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

223955C610BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-5C610

11 parts on this diagram · 9 diagrams in section
