VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

29300PUMP ASSY, VACUUM

main29300-58040i15BFTE..BU410,420200411-200701

main29300-78030iS05C..XZU404,414,424,434200110-200610

sub29300-78031

main29300-78050iJ05C,S05C..XZU412,420,422,430200212-200802

sub29300-78051

main29300-78060iN04C..XZU415,425,435200608-201010

sub29300-78061

main29300-78061iN04C..XZU41#,42#,439201010-201202

sub29300-E0051

main29300-89103iW04D..WU410,420200311-200406

sub29300-89104

main29300-89104iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200406-201106

subS2930-01481

main29300-E0100iN04C..XZU419,429,439201202-201208

sub29300-E0051

29300GBEARING, BALL

main90099-10185i15BFTE..BU410,420200110-200802

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iJ05C,S05C..XZU412,420,422,430..6F200110-201202

main29337-58040i15BFTE..BU410,420200411-200701

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010iS05C..XZU414,424,434..EUR200110-201202

29331BLADE, VACUUM PUMP, A

main29331-27010i15BFTE..BU410,420200411-200701

main29331-67020iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200110-201202

main29331-89102iW04D..WU410,420200212-201106

subS2933-11130

29336SHAFT, VACUUM PUMP

main29336-58040i15BFTE..BU410,420200411-200701

main29336-58050iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200110-201202

29342PACKING, VACUUM PUMP

main29342-17010iN04C..XZU415,425,435200608-201202

main29342-17010iJ05C,S05C..XZU404,412,414,420,422,424,430,434200110-200802

NO.1

main29342-58010i15BFTE..BU410,420200411-200701

OUTER

main29342-58010iJ05C,S05C..XZU404,412,414,420,422,424,430,434200110-200802

NO.2

main29342-64010i15BFTE..BU410,420200411-200701

INNER

main29342-89101iW04D..WU410,420200212-201106

subS2934-21160

main29342-EV010iN04C..XZU419,429,439201202-201208

29351GEAR, VACUUM PUMP

main29351-58050i15BFTE..BU410,420200411-200701

main29351-78061iN04C..XZU41#,42#,439201010-201202

main29351-89101iS05C..XZU414,424,434..EUR200110-200802

subS1363-31030

29615PIPE, VACUUM PUMP OIL

main29615-78020iS05C..XZU414,424,434..EUR200110-200610

subS2961-12270

main29615-78031iS05C..XZU412,422..5F200212-200802

subS2961-12281

9003105030

main90031-05030

9003105142

main90031-05142

9003175001

main90031-75001

9003209021

main90032-09021

9003468024

main90034-68024

9009904577

main90099-04577

9009905185

main90099-05185

9020210011

main90202-10011

9040110017

main90401-10017

9516110413

main95161-10413

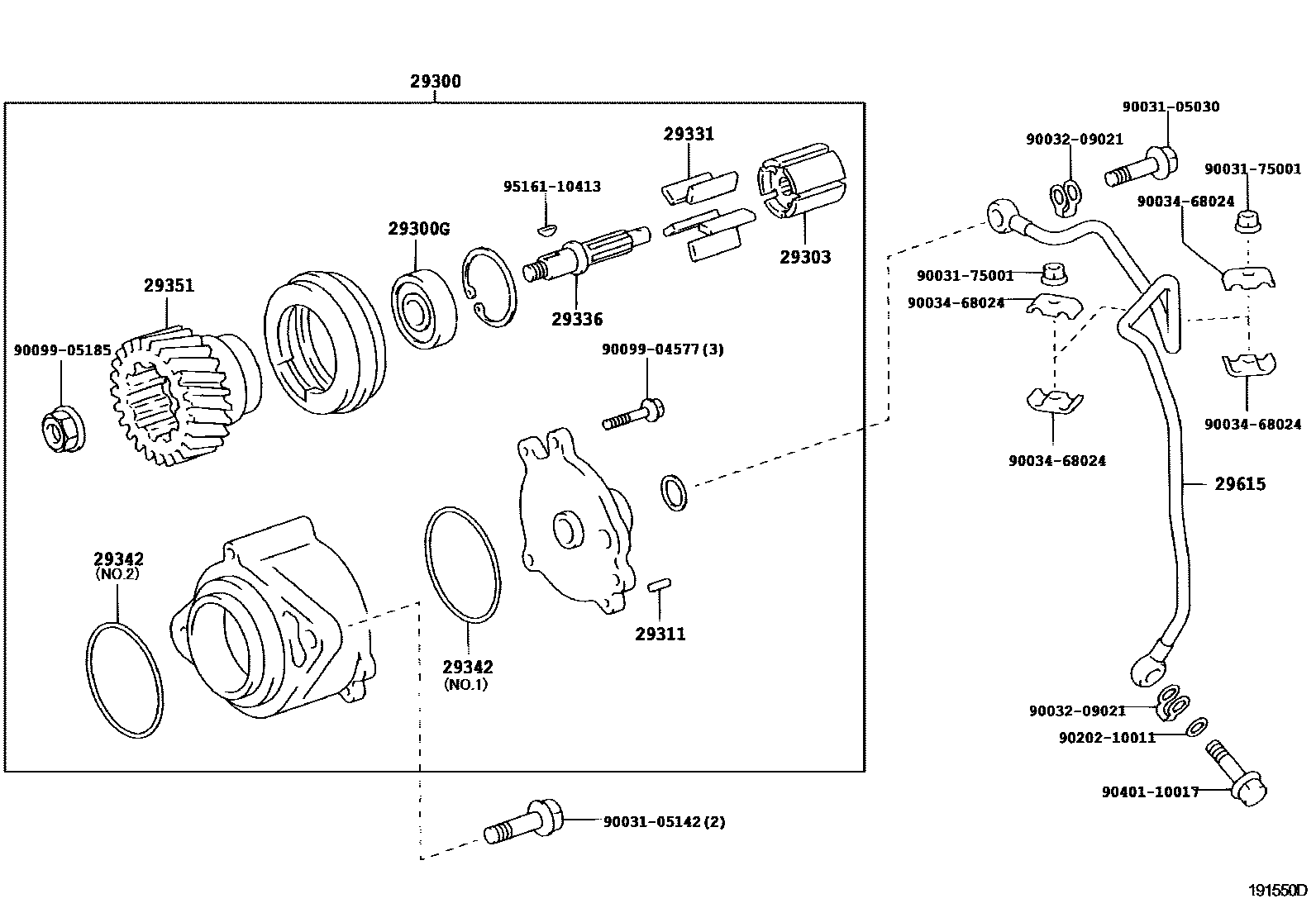

19 parts on this diagram · 6 diagrams in section
