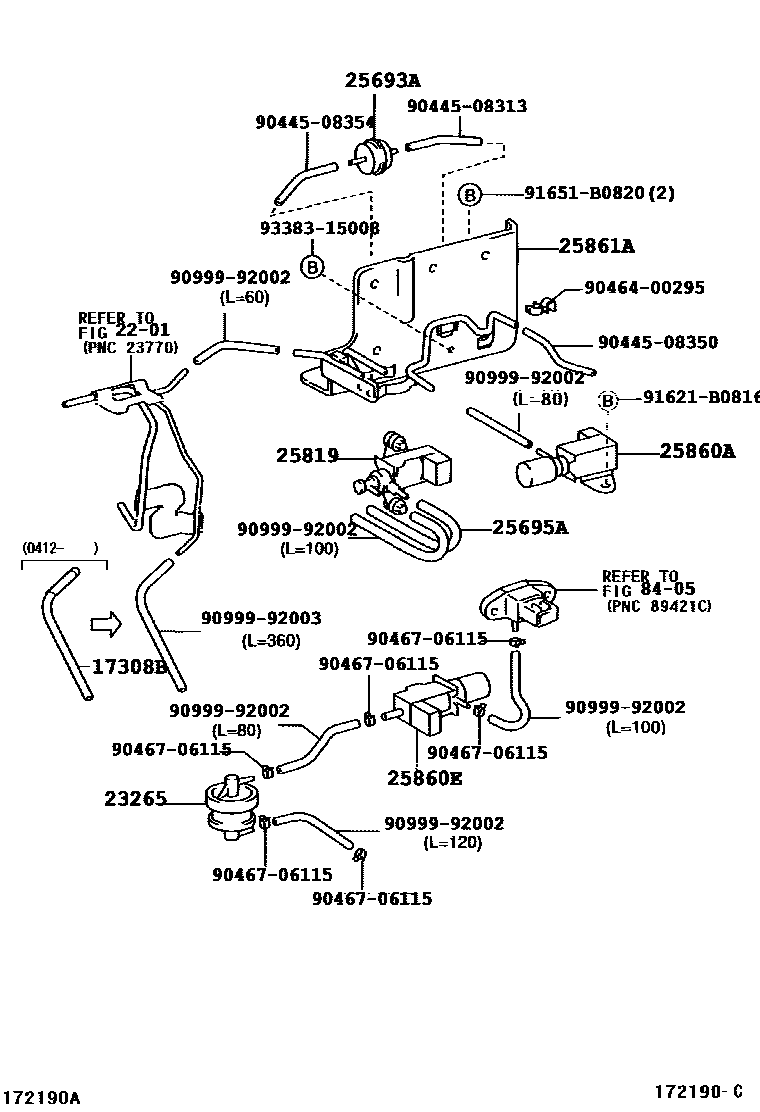

VACUUM PIPING

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1

17308BHOSE SUB-ASSY, VACUUM

main17308-58070i15BFTE..BU410,420200412-200701

main17308-78032iW04D..WU410,420..SA200610-200802

subS4470-11243

main17308-78032iW04D..WU412,422200610-201106

NO.1

subS4470-11243

main17308-78051iW04D..WU412,422200610-201106

NO.2

sub17308-E0012

main17308-78100iW04D..WU412,422200610-201106

NO.3

sub87207-E0090

main90034-45077iW04D..WU410,420200212-200610

2201

23265FILTER, GAS, NO.1

main90917-11036i15BFTE..BU410,420200411-200701

25693ADAMPER, EGR VACUUM MODULATOR

main25693-58010i15BFTE..BU410,420200411-200701

25695AHOSE, EGR VACUUM MODULATOR

main25695-58010i15BFTE..BU410,420200411-200701

25819VALVE ASSY, VACUUM REGULATING

main25819-58010i15BFTE..BU410,420200411-200701

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12212i15BFTE..BU410,420200411-200701

25860EVALVE, VACUUM SWITCHING, NO.2

main90910-12162i15BFTE..BU410,420200411-200701

25861BRACKET, VACUUM SWITCHING VALVE

main25861-78050iJ05C..XZU420,430200304

subS2204-41490

25861ABRACKET, VACUUM SWITCHING VALVE, NO.2

main25861-58050i15BFTE..BU410,420200411-200701

8405

9044508313

main90445-08313

9044508350

main90445-08350

9044508354

main90445-08354

9046400295

main90464-00295

9046706115

main90467-06115

9099992002

main90999-92002

9099992003

main90999-92003

91621B0816

main91621-B0816

91651B0820

main91651-B0820

9338315008

main93383-15008

21 parts on this diagram · 7 diagrams in section
